| Place of Origin: | China |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Model Number: | NO.MINI-VGM0Q2/NO.MINI-ZZ-K |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Payment Terms: | T/T, LC, Credit Card |
| Product Name: | Mini-type Diaphragm Valve Of Sanitary Grade | Materials: | SS316L / 1.4404 |
|---|---|---|---|
| Size: | 1/4'' - 3/4'', DN6 - DN15 | Operation: | Plastic Actuator |
| Connection: | Clamp | Gasket: | EPDM + PTFE |
| Type: | Mini Type | Structure: | With Pneumatic Input / Output |
| Diaphragm: | Single Or Double Is Optional | ||
| High Light: | diaphragm check valve,3 way diaphragm valve |
||

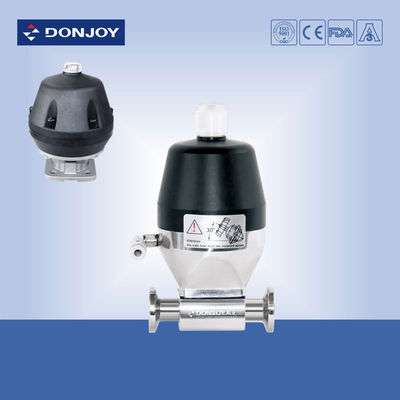

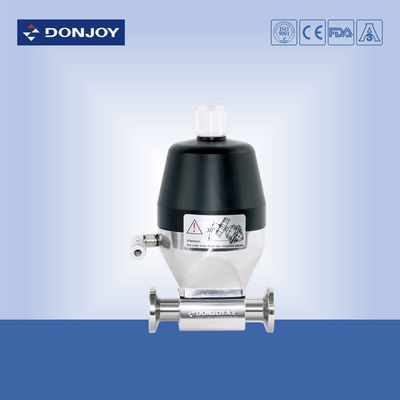

316L SS Mini Direct way Clamp Diaphragm Valve with Plastic Actuator for phamacy hygienic process
Specifications
|
Product Name: |
316L SS Mini Direct way Clamp Diaphragm Valve with Plastic Actuator for phamacy hygienic process |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM |
|
Max. Working Pressure: |
8Bar |
|
Max.Working Temperature: |
150 degree C |
|
Availably size: |
1/4”-3/4”, DN6-DN15 |
|
Availably connection: |
Clamp/weld/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Manual,Pneumatic |
|
Availably structure: |
Straight, tee, U-type, tank bottom |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
| Material of forging or casting valve body: | 1.4404 / 316L |
| Max. temperature of plastic actuator: | -30℃ to 130℃ (up to diaphragm) |
Description

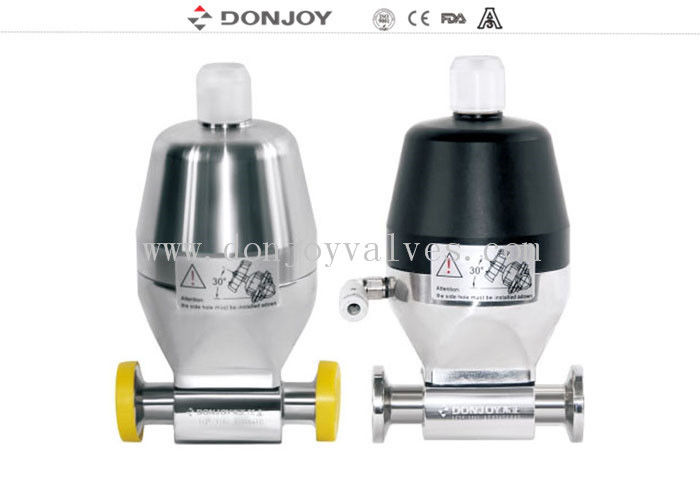

Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle

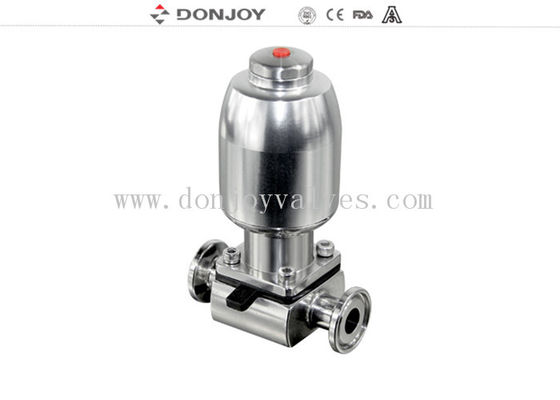

6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging
Dimension of diaphragm valve
Please check the detailed size of diaphragm valve below.
Certification
Tag : Donjoy Valves, Donjoy Phamacy valve, Donjoy Control Valve
