Hygienic Aseptic Connection Stainless Steel Sanitary Fittings From 1"-4" for tank bottom union
Quick Detail
Hygienic aseptic connection/union
Materials: 1.4301/304,1.4404/316L
Polished: CNC
Gasket: Silione, Viton, EPDM, PTFE.
Size:1/2"-4", DN10-DN100
Standard: DIN, 3A,SMS, ISO,ISO1127
Gakset: EPDM, Silicone, NBR(FDA Certificate)
Specification
|
Product Name:
|
Hygienic aseptic connection, From 1"-4" for the tank bottom connection,
|
|
Material:
|
AISI304, AISI316L
|
|
Size:
|
1"-4"
|
|
Finish:
|
CNC
|
|
Connection:
|
Flange,Bolt
|
|
Standard:
|
DIN, SMS,3A,ISO,ISO1127
|
|
Certificate:
|
CE, ISO9001/2008, 3A
|
|
Application scope:
|
Dairy, food, beer, beverage, pharmacy, cosmetic, etc
|
|
Packaging Details:
|
Shrink wrapped - carton - pallet . Or as per the request of customers
|
Application
1.The connector is a connecting device with clamp connector, used for connecting to tank
equipment. the products is simple design, excellent sterile performance.
2.Quick install various instruments and valves with TC connector to tank equipment. It's
standard. Zero Dead Angles, and the repalcement of the instrument is very simple and
convenient. Connector have two different designs:
Tank connector
1/2"-4", DN10-DN100, Tank connector is mainly used for eliminating the dead angle, which
appears when veriety of valves and instruments with TC clamp connector mounted to the tank
equipments.
Piping Connectors
1/2"-4",DN10-DN100,Piping connector is mainly used to solve the dead angles which cuase by
complex pipe connections.
Payments Term
Total amount <=1000USD, 100% in advance. Total amount>=1000USD, 50% T/T in advance
,balance before shippment.
Term of conditions
EXW PRICE, FOB, CIF....
Packing
Carton, Wooden Case, Pallet.
Product drawing

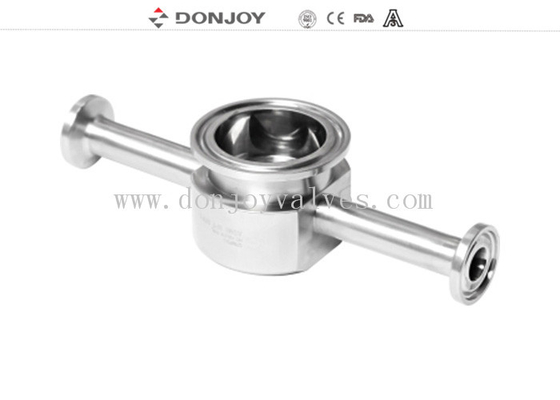

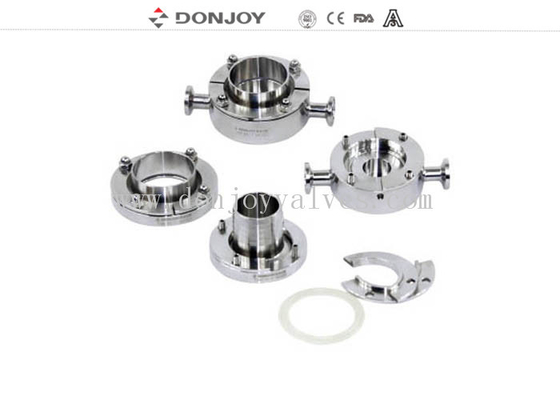

Product display
