Air / Eeletric Operation Horizontal Type Actuator Intelligent Valve Positioner Control Head
  • name
  • name
  • name

Air / Eeletric Operation Horizontal Type Actuator Intelligent Valve Positioner Control Head

Brand Name: DONJOY
MOQ: Negotiation
Price: US $333 - 777 / Piece
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,3A,FDA
Item:
Control Head
Power:
DC24V
Operation:
Air And Eeletric
Pressure:
10 BAR
Switch:
Optical ON / OFF
Controller:
Intelligent
Supply Ability:
1000 Piece/Pieces per Month
Highlight:

digital valve positioner

,

double acting positioner

Product Description

Intelligent Aluminum actuator with Control Box, horizontal type actuator for valves



Specification

Max AIR pressure : 8Bar,

Mix Air Pressure : 2.5Bar

Working Temperature: -15 Degree to + 150 Degree

Air Supply : Clean Air after dry Or filtration, Non-corrosive Gas



Material

Aluminum

Application: Use for different valves to control the valve open and closed

Action:  Double Action and Single Action

Size : DJ052/ DJ063/DJ075/ DJ083/DJ092/DJ0105/ DJ125

Different valve with different Torque to choose the Actuator



Packaging

Bubble pack for each valve.

Outside packing is carton or plywood cases.

Or as per the request of customers.



Structure

With the electric control unit.



Operation

Electric power



Acutaor Single/Double action & consumption

                 Double Action Volume Single Action Volume
Model Opening volume(L) Closed volume(L) Opening volume(L)
DJ032 0.04 0.05 0.04
DJ052 0.09 0.12 0.09
DJ063 0.14 0.2 0.14
DJ075 0.21 0.3 0.21
DJ083 0.29 0.41 0.29
DJ092 0.49 0.71 0.49
DJ105 0.7 0.99 0.7
DJ125 1.2 1.6 1.2
DJ140 1.7 2.4 1.7
DJ160 2.6 3.7 2.6
DJ190 4.2 5.9 4.2
DJ210 5.7 8.2 5.7
DJ240 9 12.8 9
DJ270 12.6 17.9 12.6
DJ300 21.4 30 21.4
DJ350 31.2 43.7 31.2
DJ400 47.9 67.1 47.9

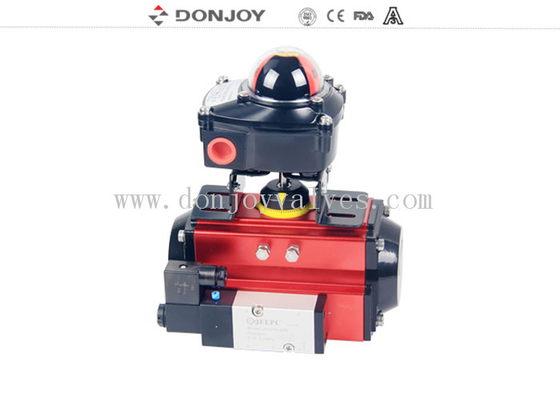

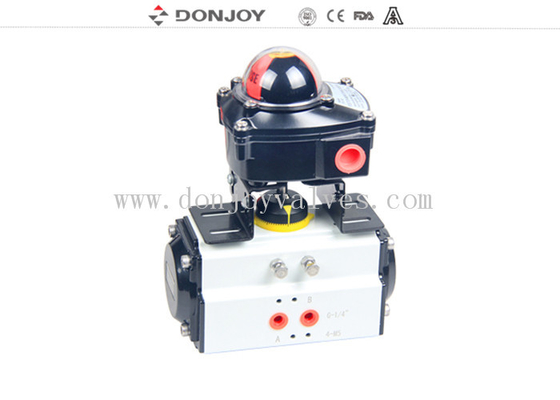

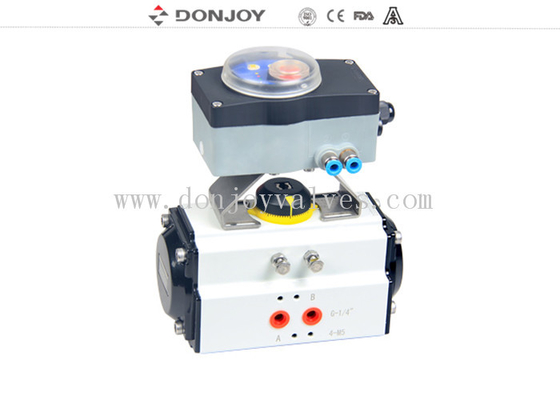

Product Display

Air / Eeletric Operation Horizontal Type Actuator Intelligent Valve Positioner Control Head 0

Air / Eeletric Operation Horizontal Type Actuator Intelligent Valve Positioner Control Head 1

Tags:

digital valve positioner

double acting positioner

pneumatic valve positioner
