| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $333 - 777 / Piece |
| Packaging Details: | carton box |
| Delivery Time: | according to order |
| Payment Terms: | T/T, LC, Credit Card |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Color: | Red | Advantage: | Big Torque, Longlife |
|---|---|---|---|
| Operation: | Air And Eeletric | Pressure: | 10 BAR |
| Switch: | Optical ON / OFF | Controller: | Intelligent |
| High Light: | digital valve positioner,double acting positioner |
||

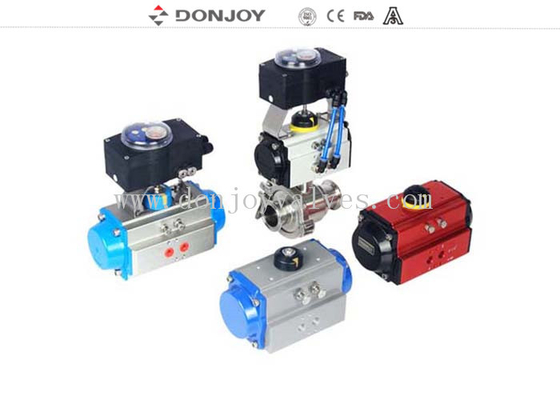

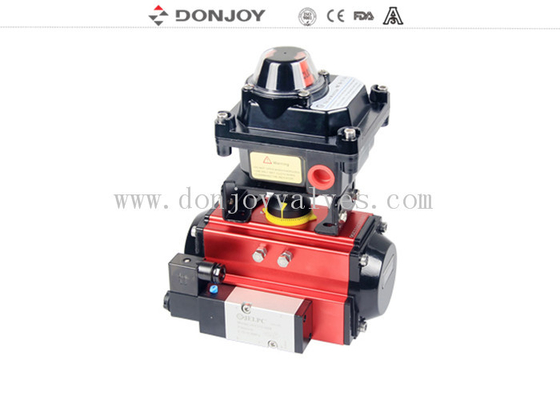

Intelligent Aluminum actuator with Control Box, horizontal type actuator With Sensor
Specification
Max AIR pressure : 8Bar,
Mix Air Pressure : 2.5Bar
Working Temperature: -15 Degree to + 150 Degree
Air Supply : Clean Air after dry Or filtration, No-corrosive Gas
Material
Aluminum
Application : Use for different valves to control the valve open and closed
Action : Double Action and Single Action
Size : DJ052/ DJ063/DJ075/ DJ083/DJ092/DJ0105/ DJ125
Different valve with different Torque to choose the Actuator
Acutaor Single/Double action & consumption
| Double Action Volume | Single Action Volume | ||
| Model | Opening volume(L) | Closed volume(L) | Opening volume(L) |
| DJ032 | 0.04 | 0.05 | 0.04 |
| DJ052 | 0.09 | 0.12 | 0.09 |
| DJ063 | 0.14 | 0.2 | 0.14 |
| DJ075 | 0.21 | 0.3 | 0.21 |
| DJ083 | 0.29 | 0.41 | 0.29 |
| DJ092 | 0.49 | 0.71 | 0.49 |
| DJ105 | 0.7 | 0.99 | 0.7 |
| DJ125 | 1.2 | 1.6 | 1.2 |
| DJ140 | 1.7 | 2.4 | 1.7 |
| DJ160 | 2.6 | 3.7 | 2.6 |
| DJ190 | 4.2 | 5.9 | 4.2 |
| DJ210 | 5.7 | 8.2 | 5.7 |
| DJ240 | 9 | 12.8 | 9 |
| DJ270 | 12.6 | 17.9 | 12.6 |
| DJ300 | 21.4 | 30 | 21.4 |
| DJ350 | 31.2 | 43.7 |
31.2 |
| DJ400 | 47.9 | 67.1 |
47.9 |
Packaging
Bubble pack for each valve.
Outside packings is carton or plywood cases.
Or as per the request of customers.
Structure
With electric control unit.
Operation
Electric power
Display
