Hygienic 12 bar inlet Constant Pressure Safety Valve SS304 stainless steel weld ends

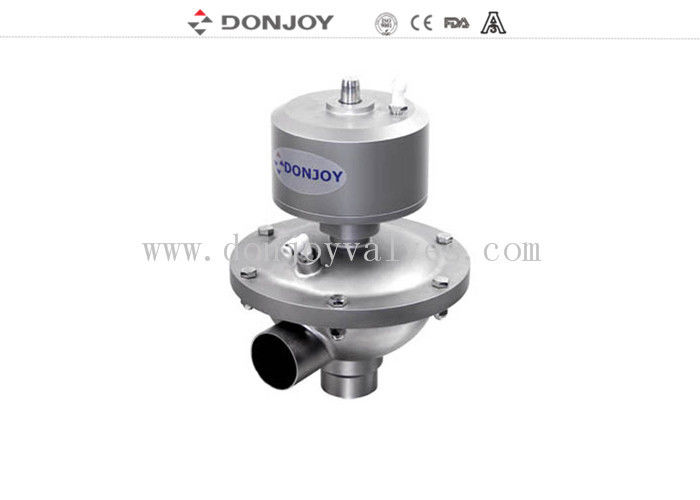

Large Image : Hygienic 12 bar inlet Constant Pressure Safety Valve SS304 stainless steel weld ends

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A
Model Number:	NO.VHY300Q1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	20-100 USD/ set
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card
Supply Ability:	1000 set/ day

Contact Now

Detailed Product Description

Stanadard:	DIN,3A,SMS,ISO	Connection:	Welded, Clamped,Thread,
Surface:	Sandblasting	Material:	Stainless Steel
Seal:	EPDM+PTFE	Working Temerature:	-10 To 150 Degree
Working Pressure:	8 Bar	Type:	A Type/ T Type
Highlight:	pressure release valve , air release valve

Hygienic 12 bar inlet Constant Pressure Safety Valve SS304 stainless steel weld ends

Quick Detail:

Constant pressure Valve

Type: A type, V type, Mini Type, WITH SUPERCHARGER

Specification

Product Name:	Constant pressure Valve
Valve Body Material:	SS304 or SS316L
Seal Material:	EPDM,NBR,FPM
Max.Working Pressure:	8Bar 116PSI
Max. Working Temperature:	-10 to 150 degree C
Available size:	1.5", 2" ,2.5"
Availably connection:	Flange,Clamp,Welded
Availably standard:	DIN,INCH,IDF,3A,SMS
Operate:	Pneumatic ,Maual
Certificate:	FDA,CE,ISO, 3]A

Operating Principle
1. Constant pressure valve operated by compressed air, automatically run without a sensor on the piping system or other auxiliary instruments, and only one compressed air pressure regulating valve that maintains pressure stability can be realized the normal work of the valve
2. Diaphragm slice and valve rod can be fit to transport product any pressure changes to make a quick response, and the corresponding change the valve stem position, in order to continue to keep the preset pressure.
3. Constant pressure valve- v: inlet pressure constant, in conveying medium pressure higher than the set pressure under the condition of the valve opens, the transmission medium pressure decreases flow has become, conveying medium pressure is insufficient valve closed.
4. Constant pressure Valve- A type: Outlet pressure constant, when transmitting medium pressure higher than the set pressure under the condition of the valve will be closed, conveying medium pressure decreases flow changes, conveying medium pressure is insufficient valve opens.

Applications:
1. Safety valve is used to protecting pipe,pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipment break down due to pressure
3. With sanitary design stainless steel, the valve is best choice for protection equipment in dairy ,food, beverage, pharmacy and fine chemical industries.

Technical data

Size		D	D1	A	B	L1	L2	H1	H2
V TYPE	DN40	40	50.5	1.5	20	130	62	215	18
	1.5”	38.1	50.5	1.5	206	130	69	215	18
	DN50	52	64	1.5	206	130	69	215	18
	2”	50.8	64	1.5	206	130	69	215	18
	2.5”	63.5	77.5	2	206	130	69	215	18

Product Drawing

Hygienic 12 bar inlet Constant Pressure Safety Valve SS304 stainless steel weld ends 0
