Donjoy Pressure Release Valve/ Pressure safety valves with 6 bar setting

Large Image : Donjoy Pressure Release Valve/ Pressure safety valves with 6 bar setting

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A
Model Number:	NO.VAQ100Q1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	USD20-100/SET
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	SIZE:	1"-4"
Stanadard:	DIN,3A,SMS,ISO	Connection:	Welded, Clamped,Thread,
Polished:	Mirror, Matte	Material:	316L/304
Max.temperature:	120℃	Max.operating Pressure:	10 Bar
KV VALUE:	4-70M3/h
Highlight:	70M3/H Pressure Release Valve , 4M3/H Pressure Release Valve , 70M3/H air release valve

Donjoy Pressure Release Valve/ Pressure safety valves

Quick Detail

Pressure Safety Valve, Over flow Valve ,Pressure spring adjustable

Type: Pneumatic quick release safety valve

Specification:

Product Name:	1"-4"Pneumatic Welded Quick-Release Safety Valve Safety Over Flow Valve Stainless Steel for Diary Food
Valve Body Material:	SS304 or SS316L
Seal Material:	EPDM,NBR,FPM
Max.Working Pressure:	8Bar 116PSI
Max. Working Temperature:	120 degree C
Availably size:	DN25-DN100 or 1"-4"
Availably connection:	Flange,Clamp,Welded
Availably standard:	DIN,INCH,IDF,3A,SMS
Pressure control :	adjustable by spring
Max working pressure	0-3 bar/0-6 bar/0-10 bar/0-43,5psi/0-87psi/0-145psi
Certificate:	FDA,CE

APPLICATION
1.Sanitary safety valve is a sanitary stainless steel safety valve, with safety design for equipment protection. It is installed in the discharge pressure loop in order to protect pipelines, pumps, fittings, and tanks, etc...
2.It is widely used in food, beverage, diary, pharmaceutical and beer industries.

OPERATING PRINCIPLES
1.Sanitary safety valve calibrates a specific pressure by adjusting the gland nut of the spring.Calibration pressure is a maximum safe pressure value fixed in order to avoid equipment damage. Under normal working pressure, the valve is closed. When the pressure in the pipe system exceeds the calibration pressure, the valve is open. Thus, the pressure in the pipe system is released and the pipeline and equipment are protected.
2.This model safety valve is pneumatic operated. It is equipped with a pneumatic actuator, which is convenient to carry out CIP cleaning to safety valve and pipelines.

Product drawing

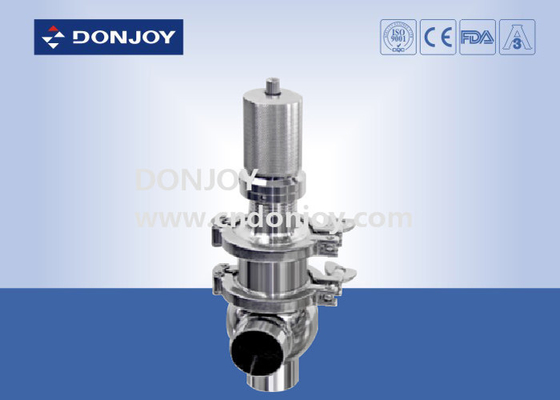

Donjoy Pressure Release Valve/ Pressure safety valves with 6 bar setting 0

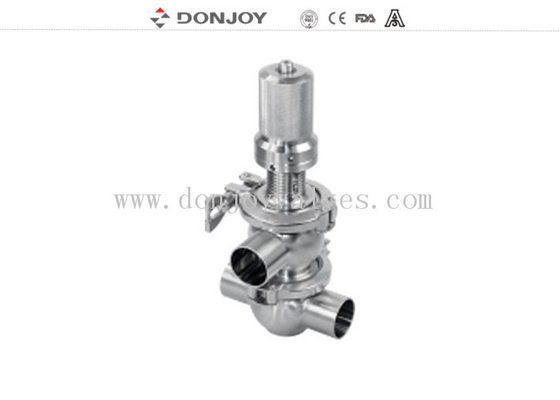

Donjoy Pressure Release Valve/ Pressure safety valves with 6 bar setting 1
