TUR-30 Vertical Sanitary High Purity Pumps For Transfer Cosmetic Syrup Pharmacy

TUR-30 Vertical Sanitary High Purity Pumps For Transfer Cosmetic Syrup Pharmacy

    • TUR-30 Vertical Sanitary High Purity Pumps For Transfer Cosmetic Syrup Pharmacy
    • TUR-30 Vertical Sanitary High Purity Pumps For Transfer Cosmetic Syrup Pharmacy
  • TUR-30 Vertical Sanitary High Purity Pumps For Transfer Cosmetic Syrup Pharmacy

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: TUL/TUR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Wooden box
    Delivery Time: 10-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 30 sets 25 working dyas
    Contact Now
    Detailed Product Description
    Materials: SS316L / 1.4404 Type: Horizontal / Vertical
    Operation: Motor Mechanical: SIC / SIC / EPDM
    Connection: Clamped Rotor Type: Optional
    Feature: Controlling Flow
    High Light:

    lobe rotary pump

    ,

    high pressure pumps

    Vertical sanitary High Purity Pumps 2" Clamped connection for transfer cosmetic syrup pharmacy



    Description
    Options
    1. Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM
    2. Single seal, Double Mechanical Seal
    3. Rotors: 2 leave rotor, 3 leave rotors, Butterfly rotors, Single Butterfly rotors
    4. Gasket: FPM(Viton), NBR, EPDM
    5. Relief valve at front cover r external by –pass
    6. Built-in safety valve
    7. End-face heat jacket
    8. Complete heat jacket
    9. Vertical TUR Series or Horizontal TUL Series
    10. Different Drives and Fixes
    11. Assembly on a stainless steel baseplate
    12. Connection: Clamp(DIN32676,3A,ISO), Threaad(DIN,SMS,RJT,IDF), Butt weld, Flange
    13. Motor Type B5 motor frequency 50HZ,60HZ
    14. Voltage(v)220-240,360-400,420-460,630-690



    Technical features
    A . Maual Continuously Variable Transmission
    B. Frequency Cnverter adjust motor gear box
    C. Fixed speed output transmission



    Specifications

    Product Name:

    SS316L vertical food pump  with 2" Clamp to transfer for cosmetic syrup pharmacy

    Material:

    SS304/SS316L/1.4301/1.4404

    Seal Material:

    SIC/SIC/EPDM (Standard, FDA approval)

    Max. Flow:

    62m3/h / 395 GPM

    Max.pressure:

    12bar/ 174PSI

    Max. working temperature:

    150 C / 302 F

    Max. rev:

    1450 rmp

    Rotor Type:

    2-leaves, 3-leaves, butterfly, signal butterfly

    Mechanical seal:

    SIC/SiC/EPDM(Standard)

    Operation: Driving by motor
    Advantage: Sanitary Mechanical Seal, Easy cleaning and maintenace

    Motor:

    ABB,SEW, 50hz/ 60hz

    Surface treatment:

    Inner polished and Sandblast outside

    Availably connection:

    Clamp, Thread Butt weld, Flange

    Availably standard:

    DIN, SMS, 3A, RJT, ISO/IDF

    Operated:

    Electic

    Certificate:

    3A/54-02 (1580), PED/97/23/EC,

    FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc

    Packaging Details:

    Plywood case or customerized.

    Or as per the request of customers

    Delivery details:

    Usually within 20 days after receiving T/T payment



    Design and Features
    1. Horizontal TUL, Vetrical TUR
    2. Bare-Shaft Consturction
    3. Hygienic Design of the attachement of the rotors
    4. Sanitary Mechanical Seal, Easy cleaning and maintenace
    5. Applied to CIP Cleaning and sic Sterlization
    6. according to USA 3A Standard



    Applications
    This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.



    Principles
    1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
    2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
    3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton.



    Competitive Advantage
    “DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

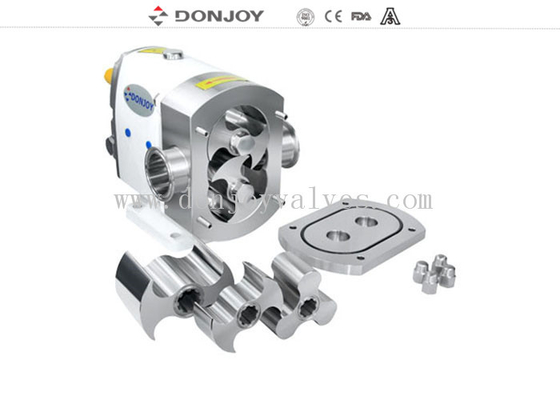

    TUR-30 Vertical Sanitary High Purity Pumps For Transfer Cosmetic Syrup Pharmacy 0

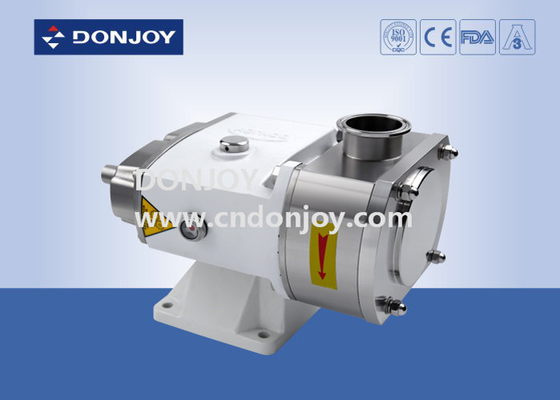

    TUR-30 Vertical Sanitary High Purity Pumps For Transfer Cosmetic Syrup Pharmacy 1
