Donjoy Mixing Proof Valve / Double seat valves

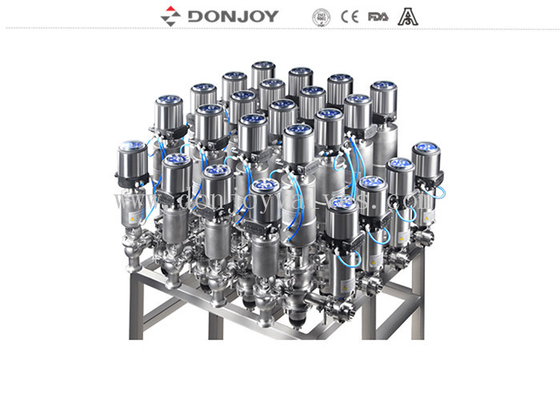

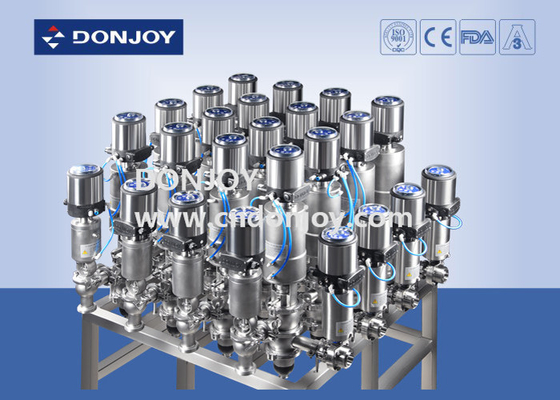

Large Image : Donjoy Mixing Proof Valve / Double seat valves

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.VFT101Q1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	US $400 - 1,200 / Piece
Packaging Details:	carton box
Delivery Time:	according to order
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	1000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Operation:	Pneumatic	Size:	DN40 - DN100 Or 1.5" - 4"
Type:	Mixing-proof Valve Array	Pressure:	Medium Pressure
Gasket:	EPDM/ VITION/NBR	Material:	316L
Welding:	Orbital Welding	Pressure Test:	PED
Highlight:	diaphragm actuator valve , pressure release valve

Mixing-proof valve array sanitary reversing seat valve typical applications 316L

Description

The manifold can be assembled by containers with various functions together.It can improveworking efficiency of system and control the whole production process.the manifold can choose any flexible hose pipe and jet deviator to change the flexure automatically.the kind of automatic operation is safe,flexible and effective.one set of manifold can served to multi pipelines.meanwhile other containers are filled in or empty,operator can clean up any one of them.the liuquid won't be polluted.

Specification

Product Name:	mixing-proof valve array sanitary reversing seat valve typical applications
Valve Body Material:	316L
Seal Material:	EPDM (standard) /NBR/Viton
Max Working Pressure:	10 bar
Max.Working Temperature:	120 °C
Available size:	DN40 - DN100 or 1.5" - 4"
Welding	Orbital welding
Control unit	Can be installed C-TOP on every pneumatic actuator
Pneumatic pressure	10bar
Pressure test	PED
Available connection:	Clamp/welding/thread/flanges
Control system	PLC control
Application	Widely used in dairy,juice,beverage,brewery,wine,food,pharmacy,etc.
Standard manifold	Manifold 4x4,Manifold 8x6
Matrix	From 4 up to 48 valves

Applications

Widely used in dairy,juice,beverage,brewery,wine,food processing,cosmetic,pharmacy industries.

Operating principles

According operation function,these valves should be connected with containers and working pipelines(such as filling pipes,drainage pipes and CIP cleaning pipes)

The operation is automatic,not manual to avoid any risks of accidents.

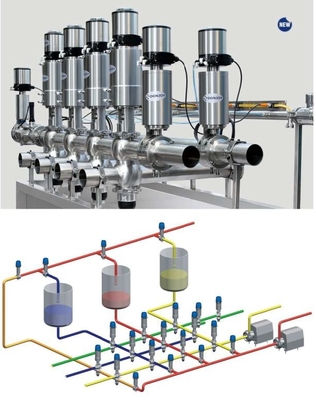

Examples of A Standard Manifold

Donjoy Mixing Proof Valve / Double seat valves 1
