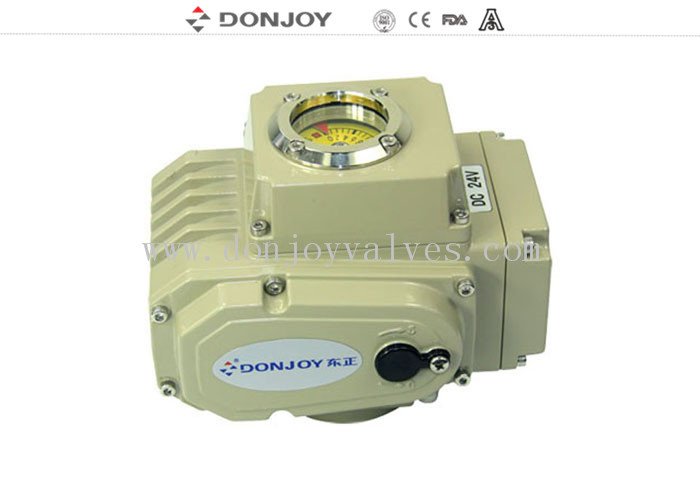

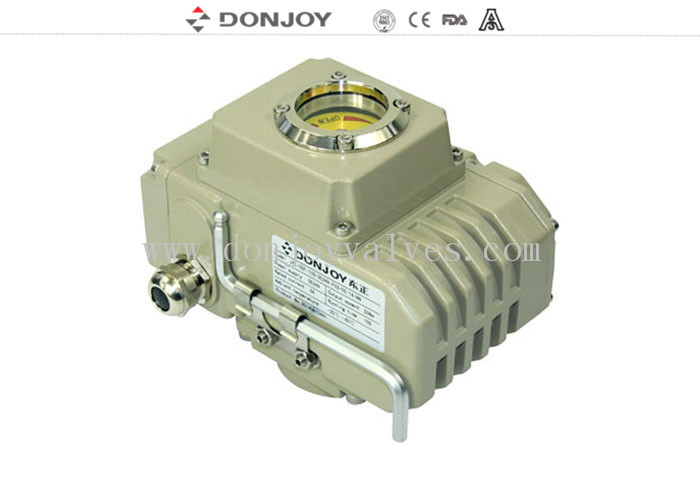

Precise Intelligent Valve Positioner Single Phase Three Phase Switch on/off Electric Actuator

Precise Intelligent Valve Positioner Single Phase Three Phase Switch on/off Electric Actuator

digital valve positioner

double acting positioner

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Contact Us

Request A Quote
Product Details
Item:
Single Phase Three Phase Eeletric Actuator
Model:
DJ-5 DJ-10 DJ-20 DJ-50 DJ-100 DJ-200
Motor Power:
10W-100W
Product Type:
B Type S Type K Type R Type A Type
Payment & Shipping Terms
Minimum Order Quantity
1
Price
US $100- 777 / Piece
Packaging Details
carton box
Delivery Time
according to order
Payment Terms
T/T, LC, Credit Card
Supply Ability
1000 Piece/Pieces per Month
Product Description

Single-phase three phase Electric Actuator Intelligent Valve Positioner


Product type
Standard switch type(B)
Valves ON/OFF is conducted by switch circuit with outputting active contact signal which can show a fully open or fully close state of the valves.
Passive contact type(S)
Valves ON/OFF is conducted by switch circuit with outputting passive contact signal which can show a fully open or fully close state of the valves.
Position signal type(K)
Valves ON/OFF is conducted by switch circuit with outputting a relative group of open or close degree current signals
Opening degree signal type(R)
The opening angle of valves is controlled by switch circuit,with potentiometer outputting resistance signal corresponding valves opening angle.
Modulating type(A)
Intelligent regulation and control are conducted by receiving the standard signal4-20mA DC,0-10V,DC or 1-5V.DC outputted by the computers of instruments standard feedback signal 4-20mA DC is also outputted.


Selection table

Active output on/off

electric actuator

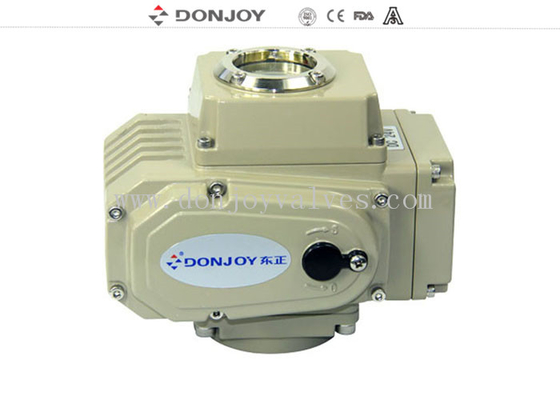

Precise Intelligent Valve Positioner Single Phase Three Phase Switch on/off Electric Actuator 0


Size Torque Recommend valve size
Butterfly valve Ball valve
DJ-5 30S-50N.M ≤4"-DN100 ≤2.5"
20S-30N.M ≤3"-DN80 ≤2"-DN50
10S-15N.M ≤2.5"-DN65 ≤1.5"-DN40
DJ-10 30S-100N.M

5"DN125

12"-DN300

DN65-3"
20S-60N.M

4"-DN100

6"-DN150

2.5"-DN65
15S-50N.M

3"-DN80

5"-DN125

2"-2.5"
DJ-20 30S-200N.M - DN80-4"
15S-100N.M

5"-DN125

12"-DN300

DN65-3"
DJ-40 30S-400N.M - -
15S-200N.M - DN80-4"

Passive output on/off

electric actuator



Precise Intelligent Valve Positioner Single Phase Three Phase Switch on/off Electric Actuator 0


Size Torque Recommend valve size
Butterfly valve Ball valve
DJ-5 30S-50N.M ≤4"-DN100 ≤2.5"
20S-30N.M ≤3"-DN80 ≤2"-DN50
10S-15N.M ≤2.5"-DN65 ≤1.5"-DN40
DJ-10 30S-100N.M

5"DN125

12"-DN300

DN65-3"
20S-60N.M

4"-DN100

6"-DN150

2.5"-DN65
15S-50N.M

3"-DN80

5"-DN125

2"-2.5"
DJ-20 30S-200N.M - DN80-4"
15S-100N.M

5"-DN125

12"-DN300

DN65-3"
DJ-40 30S-400N.M - -
15S-200N.M - DN80-4"

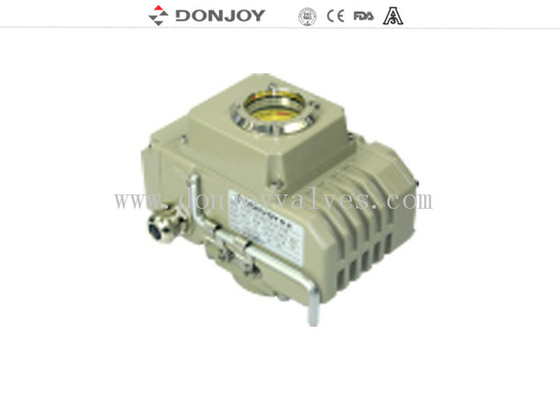

Precise Intelligent Valve Positioner Single Phase Three Phase Switch on/off Electric Actuator 2

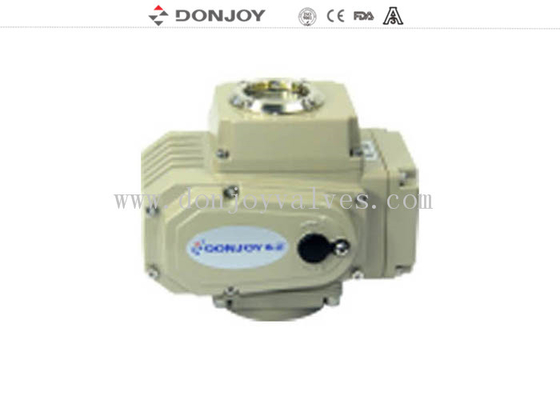

Precise Intelligent Valve Positioner Single Phase Three Phase Switch on/off Electric Actuator 3
