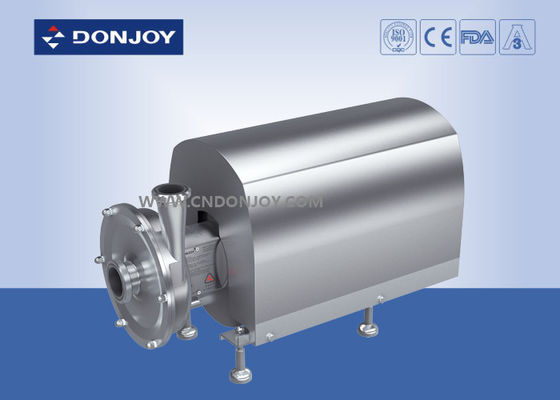

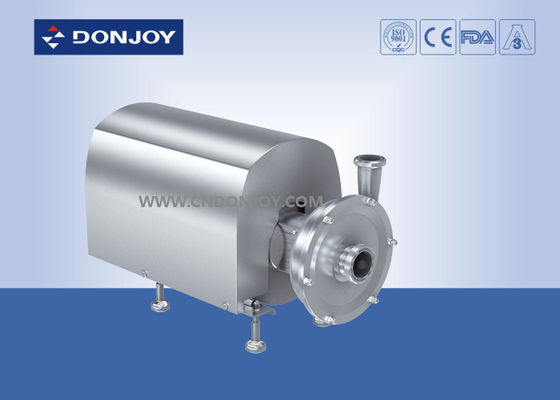

SS316L Pharmaceutical Pump with Single Seal and 1.5" Thread Connection for High Purity Applications

Large Image : SS316L Pharmaceutical Pump with Single Seal and 1.5" Thread Connection for High Purity Applications

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	JZ

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	carton box
Payment Terms:	T/T,LC,Credit Card

Contact Now

Detailed Product Description

Materials:	SS304 SS316L	Type:	JZ-1
Operation:	Mechanical ABB Motor	Mechanical:	Single Seal
Connection:	1.5" Thread	Medium:	Beer / Beverage/comestic Etc.
Highlight:	single stage pharmaceutical pump , high purity homogeneous solution pump , efficient dispersion pharmaceutical pump

Pharmaceutical Pump Single Stage Homogeneous Solution

Product Overview

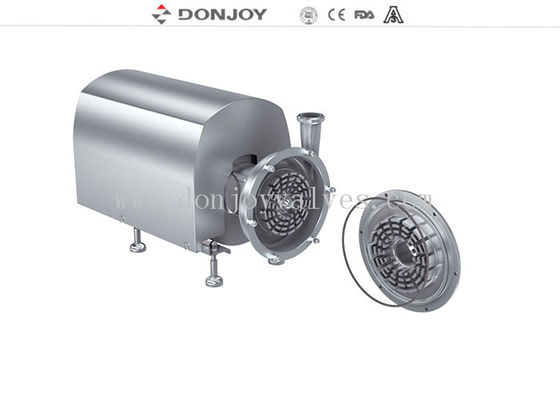

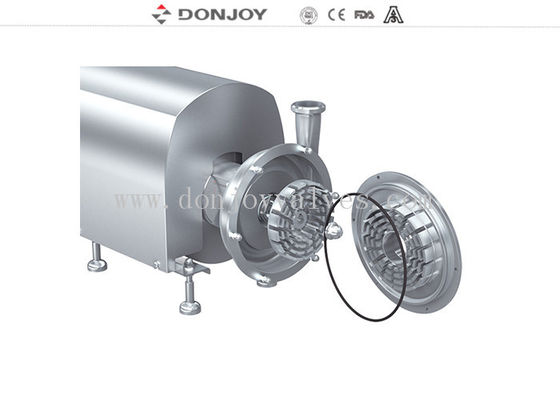

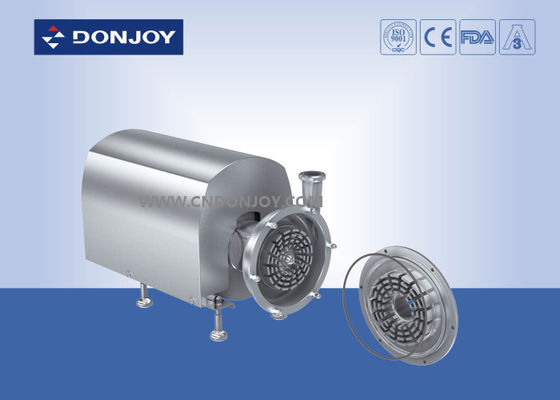

The JZ1 Series is an emulsifying homogenizing pump designed for continuous production, composed of stator and rotor components. The processed media undergoes operation through 6-10 layers of stators and rotors, enabling dispersion, cutting, refining, smashing, emulsifying, and mixing processes step by step. This advanced design improves production efficiency and enhances media quality compared to traditional manufacturing methods.

Available Options

Mechanical Seal: SIC/SICE/EPDM, TC/TC, EPDM
Gasket: Viton/NBR
Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)
Motor: 2900, 1450, 3600 min/1, 50HZ, 60HZ
Surface Finishing: Sandblast or Mirror Polish

Technical Specifications

Product Name	Single-Stage Homogeneous Softening High Purity Pumps for Pharmaceutical
Pump Body Material	SS304 / SS316L / 1.4301 / 1.4404
Seal Material	EPDM (Standard, FDA approval) FPM (Viton) and NBR
Max. Flow	40 m³/h
Max. Speed	3600 min⁻¹
Max. Head	70H (m)
Max. Working Pressure	7bar / 99 PSI
Max. Working Temperature	120 °C
Mechanical Seal	SIC/Sic/EPDM (Standard), C/SIC, TC/TC
Sealing Type	Flushed double mechanical seal / single mechanical seal (standard)
Motor Power	1.1kw, 1.5kw, 2.2kw
Voltage	440V, 220V, 380V
Motor	ABB / Domestic
Motor Frequency	50HZ, 60HZ, (0-100 HZ)
Surface Treatment	Inner polished and Sandblast outside
Application Structure	JZ
Available Connection	Tri-Clamp, Thread, Flange
Available Standard	DIN, SMS, 3A, RJT, ISO/IDF
Operation	Electric
Low Discharge Option	Low discharge/diaphragm valve/ball valve/butterfly valve
Certificate	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application Scope	Dairy, food, beverage, pharmacy, cosmetic, etc.
Packaging Details	Plywood case or customized per customer request
Delivery Details	Usually within 20 days after receiving T/T down payment

Technical Advantages

Maintenance disassembly and installation can be completed without professional staff and special tools
Initial use of installation debugging - even short reverse rotation will not cause damage
Impeller and shaft connected by keyway; impeller and mechanical seal rotating ring connected by pin
Mechanical seal static ring and pump body connected by special-shaped flange
Compatible with single and double mechanical seal - only need to change mechanical seal

Applications

Manufactured in stainless steel with shrouded motor
Sanitary and cost-efficient design perfect for dairies, beverages, food-processing, pharmaceutical and fine chemical industries

Selection Table

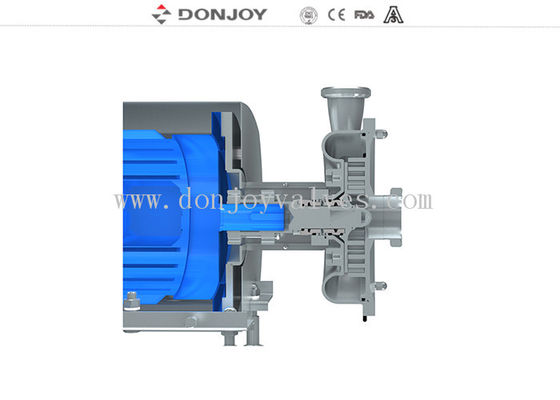

Technical Drawings

Competitive Advantage

"DONJOY is the only company that has passed nine series of products by American 3A certification organization in Asian sanitary pumps and valves field."
