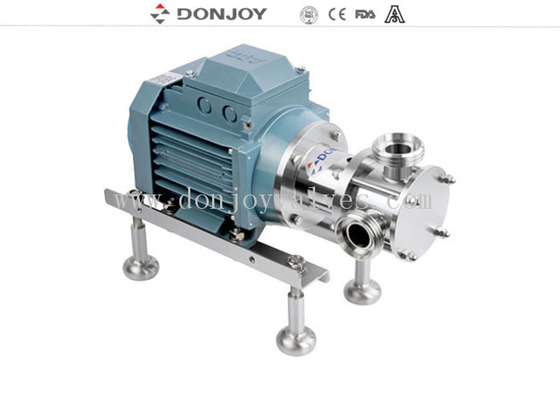

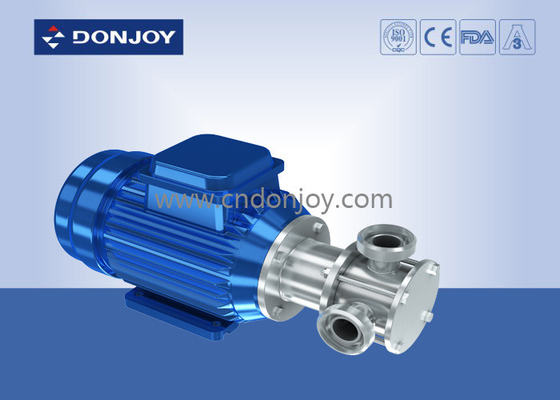

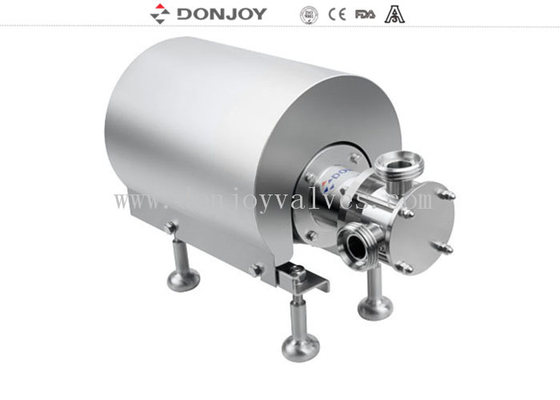

RX Flexibility Impeller High Purity Pumps Achieve Clockwise And Counterclockwise Rotation

RX Flexibility Impeller High Purity Pumps Achieve Clockwise And Counterclockwise Rotation

RX Flexibility Impeller High Purity Pumps Achieve Clockwise And Counterclockwise Rotation

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: RX

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Materials: Stainless Steel 316L Model: RX
Mechanical: Flush Mechanical Seal / Doulbe Seal Inlet: 2.5" Thread
Outlet: 1.5" Thread Sealing Type: Optional
High Light:

self priming pump

,

lobe rotary pump

316L Sanitary Flexible Impeller High Purity Pump - RX - series



Description

RX flexibility impeller pump

It can achieve clockwise and counterclockwise rotation.

It can be extracted and transferred liquid when liquid level lower than pump inlet enven max.5M

The pump is designed to transport and transfer low viscosity and high viscosity media and materials contains particles or gases



Specifications

Product Name:

316L Sanitary Flexible Impeller High Purity Pump - RX - series

Pump Body Material:

SS304/SS316L/1.4301/1.4404

Seal Material:

EPDM (Standard, FDA approval) FPM(Viton) and NBR

Max. Flow:

20m3/h

Max. Head:

80H(m)

Max. Working Pressure:

4 bar

Max. Working Temperature:

80 °C

Mechanical seal:

SIC/SiC/EPDM(Standard), C/SIC, TC/TC

Sealing type:

Flushed double mechanical seal/single mechanical seal(standard)

Motor power:

0.5kw, 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3.0kw,

Voltage:

110V, 220V, 380V

Motor:

ABB/domestic/SIEMENS

Motor Frequency:

50HZ, 60HZ

Surface treatment:

Ra≤0.6μm, EP=Ra0.4μm

Model:

 RX

Availably connection:

Tri-Clamp, Thread, Flange

Availably standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Low discharge option :

Low discharge/diaphragm valve/ball valve/butterfly valve



Certificate:

3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Impeller materials

NBR, EPDM, VITON



Packaging Details:

Plywood case or customerized. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.



Working Principle

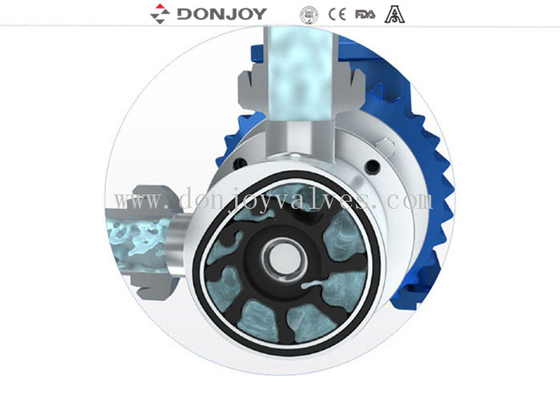

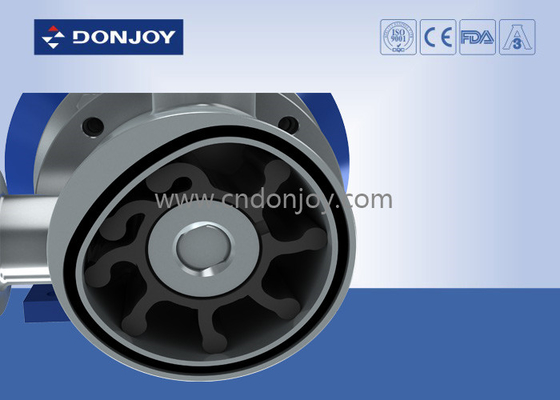

1. At pump inlet, due to the inner eccentric structure of pump stator, partial vacuum between the blades of flexible impeller will  be formed when volume is increased. The consequently formed suction will draw liquid into pump chamber.

2. The rotating impleller was carried the liquid from inlet to outlet. At this stage the space between blades actually was kept constant. The gap between blades allows big solid particles to pass through the pump and without damage on liquid.

3. The impeller is contacted with the flat part of the eccentric inner surface in pump stator. Whne impeller is bent, the volume between blades will be decreased continuously and evenly from the pump.





RX Flexibility Impeller High Purity Pumps Achieve Clockwise And Counterclockwise Rotation 0



Advance design , simple construction

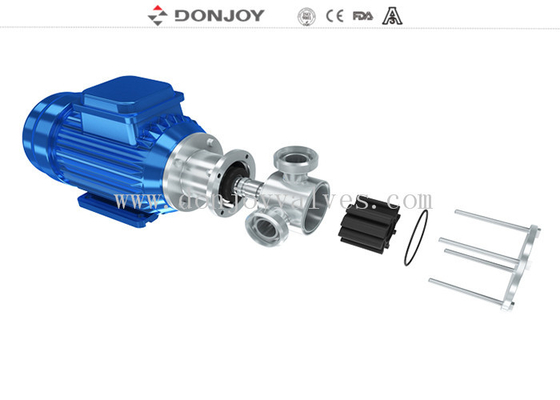

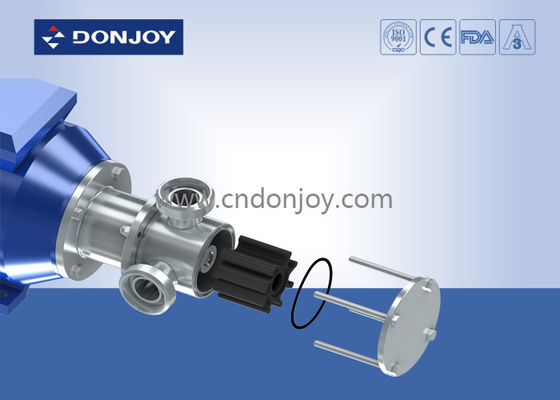

Maintenance i smple and economical. The pump cover is fixed by four locking nuts. When maintaining the impeller and shaft seal of the pump, just need to unscrew the nuts .



Technical features:


Max flow: 8m3/h
Max pressure: 4bar

Max suction: 5 M

Max Temperature: 80°C

Surface treatment: Ra≤0.6μm, EP=Ra0.4μm



Materials:

• Body and Fan: AISI 316L

• Gasket: EPDM (suitable for food)
• Mechanical shaft seal



RX application of sanitary

Hygiene is of paramount importance in the processing of food and dairy products. The RX is designed with polished stainless steel and food or milk grade impeller to meet rigorous hygiene requirement. The stainless steel sanitary RX is easy to clean, which use unsoltted shaft seal that dose not cause liquid deposition and the used impeller material has been tested and approved. and is certified to comply with FDA regulations. Typical products suitable for delivery by the pump including: Milk, skimmed milk, cream, curds,youghurt, whey, lumps, syrup, condiments, gelatin, honey, jam, ointment, canned food, beverage, wine, beer, fruit juice and spices.



RX application of Industry

RX flexible impeller pump also could be applied to the situation without sanitary requirement, however, it is still as main stainless steel pump.RX stainless steel pump is particularly suitable for conveying acidic liquids, clays, concrete additives, detergents, dyes, film processing chemicals, ink and sewage treatment cosmetic are also pumped in this type of pump frequently, including the following products: soap,shampoo, detergent, and moisturizer.





maintain

The pump cover is fixed by four loking nuts. It just need to disassembly pump cover when the rotor and shaft seal are completely overhauled, that makes pump very practical and downtime will be shortened



Slection Table

RX Flexibility Impeller High Purity Pumps Achieve Clockwise And Counterclockwise Rotation 1

Drawing

RX Flexibility Impeller High Purity Pumps Achieve Clockwise And Counterclockwise Rotation 2

RX Flexibility Impeller High Purity Pumps Achieve Clockwise And Counterclockwise Rotation 3

Connection way

RX Flexibility Impeller High Purity Pumps Achieve Clockwise And Counterclockwise Rotation 4



Flow rate and head



RX Flexibility Impeller High Purity Pumps Achieve Clockwise And Counterclockwise Rotation 5
