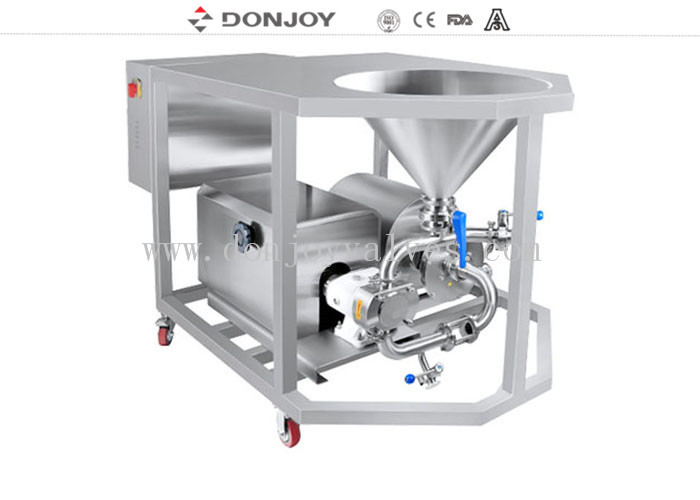

PMTU lobe pump and homogeneous pump for fluid and powder mixing and transfer
PM:EMULSIFIED HOMOGENEOUS PUMP
TU: LOBE PUMP
The PM series is a multifunctional material-liquid mixing pump with functions of mixing, shearing, emulsifying, homogenizing, differentiating, refining, crushing and material improvement. Compared with the traditioinal production process, the pump is more simple, convenient and economical, which improves the production efficiency and the quality of the materials to be treated
Technnical Specifications
| Max powder processing capacity |
9000kg/h |
| Max thickeners processing Capacity |
3000kg/h(Base on materials' viscosity and density |
| Max Temperature |
130°C |
| Materials |
304/316L,1.431/1.4404,ASME BPE316L |
| surface treatment |
≤Ra0.8μm,≤Ra0.6μm,≤Ra0.4μm, |
| mechiancal seal |
Single and double mechanical seal |
| Mechanical seal combination |
See configuration table |
| Inlet&outlet connection |
Thread, clamp,Flange, aseptic flange |
| Certificate |
3A,CE,FDA. |
Application
1.Food and beverage: jiuce, jam, ice cream, dairy products, food additives, tea drinks,chocolate, soymilk,essence, salad dressing, Chilli sauce, mayonnaise, tomato sauce, mustard, Yogurt, sour cream, flavored milk, pudding and other types of materials
2.Daliy chemical: Liquid detergent, liquid soap, facial cleanser, emulsified silicone oil, fragrance compound, skin care product, cosmetics, cream, shampoo, shower gel,etc
3.Bio-pharmaceutical:Injection, antibiotic, drug emulsion,meulsion, medicine cream paste, health care products, microcapsule emulsification, lotion, cell tissue breakage etc.
4.Additives and thickeners: Aspartame, non-skimmed milk powder, salt, citric acid, sugar, egg powder, whey protein concentrate, calcium carbonate, honey, powder essence and other additives, gels,pectin, synthetic thickeners, starch, gelatin and other thickeners.
5.Petrochemical Industry: Lubricant, heavy oil emulsification, diesel oil emulsification, modified asphalt, catalyzer, wax emulsion etc. which media need to be emulsified and homogenized.
6.fine chemical engineering:pigment, dyestuff, plastic additive, textile assistant, adhesive, resin emulsification, hot melt adhesive , sealant, glue, sizing agent, finishing agent, surfactant, dye leveller, carbon black dispersion,anti-sticking agent,textile finished agent, brightener, leather auxiliaries, pigment paste etc.Which media need to be emulsified and homogenized.
7.Coating and ink : Printing ink, oil paint, emulsion paint, coating, nano-paint, photocureable coating, Coating abhesive, carbon black dispersion, glaze,bentonite, dye compounds etc
8.Pesticide: Insecticide, herbicide, pesticide missible oil,fertilizer, inert ingredient etc which media need to be emulsifed and homogenized
9: Semiconductor: Dispersion&depolymerization of nanometer materials etc
Conbine
Advantage: Very simple and clear eletrical control layout.
Lobe pump, can control speed by frenqency inverter to achieve and purpose of controlling the flow.
Homogeneous pump, can control speed by frenquency inverter to achieve the effect of homogenization and mixing, meanwhile control the flow.
Console, designed with motor overload protection to prevent motor from being burned.
Console, the shell is designed with work indicator, can distinguish working condition through the light.
Selection Table and Drawing
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
