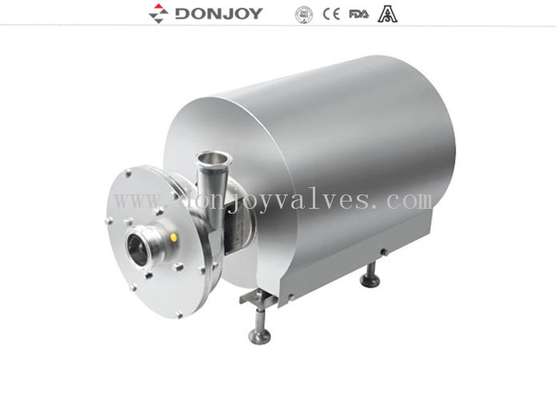

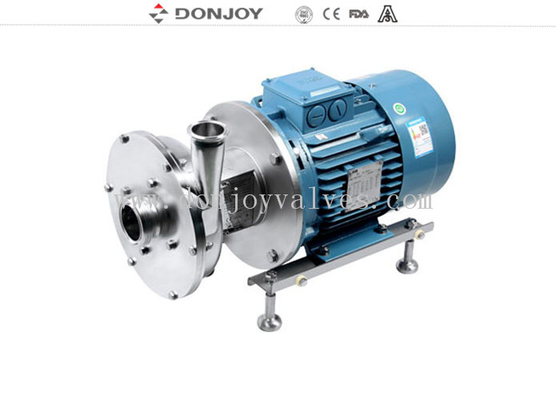

Single Stage Emulsifying Homogeneous Pump For Petrochemical Industry Transfer

Single Stage Emulsifying Homogeneous Pump For Petrochemical Industry Transfer

Single Stage Emulsifying Homogeneous Pump For Petrochemical Industry Transfer

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: DJ-JZ3

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: wooden case
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Name: Emulsifying Homogeneous Pump Application: Petrochemical Industry Transfer
Flow Rate: 10 - 30T/H Inlet: 2" Thread / Clamp / Ferrule
Outlet: 1.5" Thread / Clamp / Ferrule Motor Type: Could Be Optional
High Light:

self priming pump

,

high pressure pumps

Single Stage emulsifying Homogeneous pump For petrochemical industry transfer



High-efficiency,dispersion, cut, refinement, smash, emulsification, mixing, homogenization, high purity solution


Description

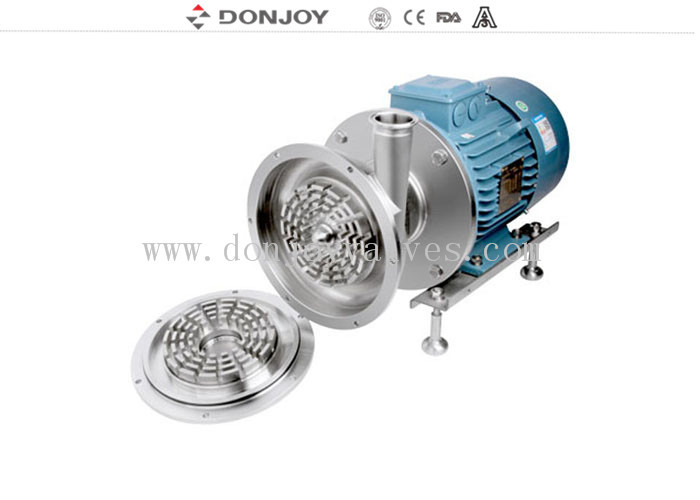

emulsifying Homogeneous pump could be operate for continuous production. and is composed by stators and rotors, the processed media will be operate through 6-10 layers stators and rotors. And then be dispersed, cut, refined, smashed, emulsified,mixed etc, d etc. step by step.Compared with traditional manufacturing technique, this pump is more easier, convenient and optimized, which hase improved production efficiency and promoted meida quality.



Specifications

Product Name:

Single Stage emulsifying Homogeneous pump For petrochemical industry transfer

Pump Body Material:

SS304/SS316L/1.4301/1.4404

Seal Material:

EPDM (Standard, FDA approval) FPM(Viton) and NBR

Max. Flow:

40 m3/h

Max. Speed:

3600 min-1

Max. Head:

50H(m)

Max. Working Pressure:

5bar

Max. Working Temperature:

140 °C

Mechanical seal:

C/SiC/EPDM(Standard), C/SIC, TC/TC



Sealing type:

Flushed double mechanical seal/single mechanical seal(standard)

Motor power:

7.5kw,11kw,15kw,18.5kw,22kw...

Voltage:

440V, 220V, 380V

Motor:

ABB/domestic/SIEMENS

Motor Frequency:

50HZ, 60HZ

Surface treatment:

Inner polished and Sandblast outside

Application structure:

JZ-3

Available connection:

Tri - Clamp, Thread, Flange

Available standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Impeller

Opening impeller

Transfer

Driven by rotary impeller



Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc



Option

1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM

2. Gasket: viton/NBR

3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)

4. Motor: 2900,1450,3600Min/1,50HZ,60HZ

5. stators and rotors

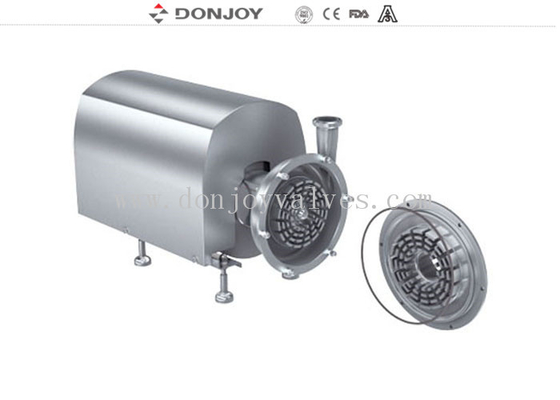

Gap of Stator and rotor

Single Stage Emulsifying Homogeneous Pump For Petrochemical Industry Transfer 0



Application
1.Food and beverage: jiuce, jam, ice cream, dairy products, food additives, tea drinks,chocolate, soymilk,essence, salad dressing, Chilli sauce, mayonnaise, tomato sauce, mustard, Yogurt, sour cream, flavored milk, pudding and other types of materials

2.Daliy chemical: Liquid detergent, liquid soap, facial cleanser, emulsified silicone oil, fragrance compound, skin care product, cosmetics, cream, shampoo, shower gel,etc

3.Bio-pharmaceutical:Injection, antibiotic, drug emulsion,meulsion, medicine cream paste, health care products, microcapsule emulsification, lotion, cell tissue breakage etc.

4.Additives and thickeners: Aspartame, non-skimmed milk powder, salt, citric acid, sugar, egg powder, whey protein concentrate, calcium carbonate, honey, powder essence and other additives, gels,pectin, synthetic thickeners, starch, gelatin and other thickeners.

5.Petrochemical Industry: Lubricant, heavy oil emulsification, diesel oil emulsification, modified asphalt, catalyzer, wax emulsion etc. which media need to be emulsified and homogenized.

6.fine chemical engineering:pigment, dyestuff, plastic additive, textile assistant, adhesive, resin emulsification, hot melt adhesive , sealant, glue, sizing agent, finishing agent, surfactant, dye leveller, carbon black dispersion,anti-sticking agent,textile finished agent, brightener, leather auxiliaries, pigment paste etc.Which media need to be emulsified and homogenized.

7.Coating and ink : Printing ink, oil paint, emulsion paint, coating, nano-paint, photocureable coating, Coating abhesive, carbon black dispersion, glaze,bentonite, dye compounds etc

8.Pesticide: Insecticide, herbicide, pesticide missible oil,fertilizer, inert ingredient etc which media need to be emulsifed and homogenized

9: Semiconductor: Dispersion&depolymerization of nanometer materials etc



Technical Advantage

Maintenace disassembly and installation can be completed without professional staff and special tools

Initial use of installation debugging, the motor will not be damaged even if afer a short reverse rotarion

The impeller and shaft are connected by the key groove



Selection Table

Single Stage Emulsifying Homogeneous Pump For Petrochemical Industry Transfer 1



Drawing



Single Stage Emulsifying Homogeneous Pump For Petrochemical Industry Transfer 2

Spare parts component

Single Stage Emulsifying Homogeneous Pump For Petrochemical Industry Transfer 3



Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification

organization in Asian sanitary pumps and valves field.”
