Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE/FDA/ISO/3A
Model Number:
NO.MINI-VAQ100S1
Contact Us

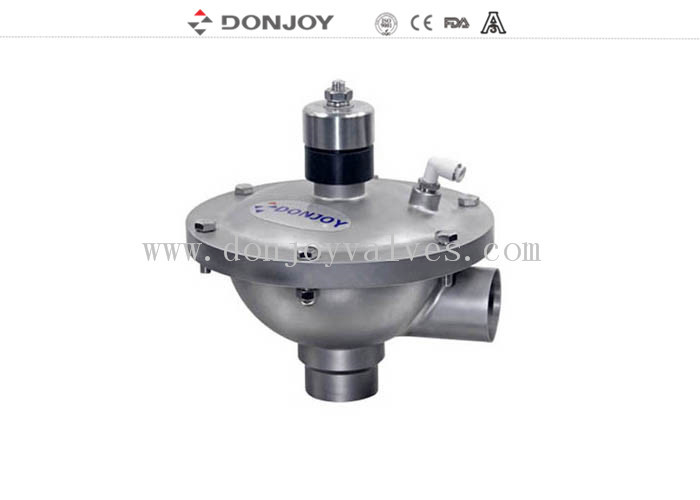

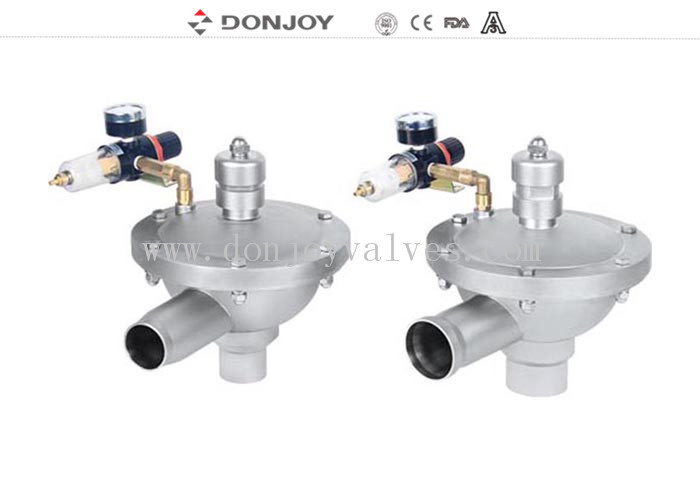

Hygienic outlet constant pressure valve with air supply control valve reducing valve and pressure gauge
Quick Detail:
Constant pressure Valve
Type: Inlet type, Outlet type, Mini Type, WITH SUPERCHARGER
Specification:
|
Product Name: |
Hygienic outlet constant pressure valve with air supply control valve reducing valve and pressure gauge |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
EPDM,NBR,FPM |
|
Max.Working Pressure: |
8Bar 116PSI |
|
Max. Working Temperature: |
-10 to 150 degree C |
|
Available size: |
1.5", 2" ,2.5",3" |
|
Available connection: |
Flange,Clamp,Welded |
|
Available standard: |
DIN,INCH,IDF,3A,SMS |
|
Operate: |
Pneumatic,Manual |
|
Certificate: |
FDA,CE,ISO, 3]A |
Applications:
1. Safety valve is used to protecting pipe, pump from overpressure
2. Sanitary and safe design is to prevent operation danger and equipment break down due to pressure
3. With sanitary design stainless steel, the valve is the best choice for protection equipment in dairy, food, beverage, pharmacy and fine chemical industries.
|
Size |
D |
D1 |
A |
B |
L1 |
L2 |
H1 |
H2 |
|
|
Outlet Type |
DN40 |
40 |
50.5 |
1.5 |
20 |
130 |
78 |
230 |
18 |
|
1.5” |
38.1 |
50.5 |
1.5 |
206 |
130 |
78 |
230 |
18 |
|
|
DN50 |
52 |
64 |
1.5 |
206 |
130 |
78 |
230 |
18 |
|
|
2” |
50.8 |
64 |
1.5 |
206 |
130 |
78 |
230 |
18 |
|
|
2.5” |
63.5 |
77.5 |
2 |
206 |
130 |
85 |
230 |
18 |
|
Operating Principle
1. Constant pressure valve operated by compressed air, automatically run without a sensor on the piping system or other auxiliary instruments, and only one compressed air pressure regulating valve that maintains pressure stability can be realized the normal work of the valve
2. Diaphragm slice and valve rod can be fit to transport product any pressure changes to make a quick response, and the corresponding change the valve stem position, in order to continue to keep the preset pressure.
Tag: constant valves, back pressure valve, DONJOY Sanitary valves
