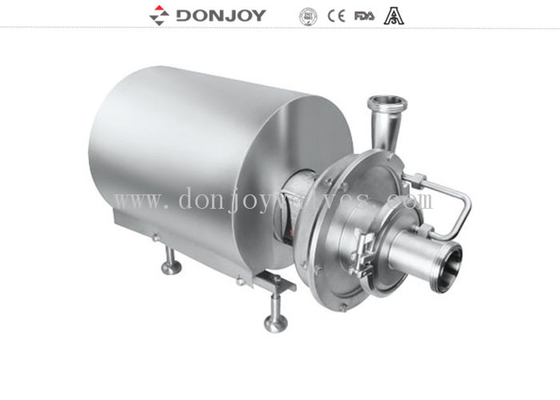

SS316l High purity ZLX Self Priming Centrifugal Pumps for Pharmaceutical amd CIP cycle
Tags : CIP Pump, Centrifugal pump, Circulation pump
High efficiency, Low noic, CIP Backhaul, materials transport, high clanin solution.
Very simple maintance , no special tools required, no professionals required
The Self-priming Pumps in the Sanitary Series provide solutions to decanting the widest range of Foods, Pharmaceutical and Chemical products
Specifications
|
Product Name:
|
CIP self priming centrifugal pumps ZXL series for wine processing
|
|
Valve Body Material:
|
Stainless steel 304 / 316L
|
|
Seal Material:
|
EPDM (Standard, FDA approval) FPM(Viton) and NBR
|
|
Max. Flow:
|
50 m³/h
|
|
Max. Speed:
|
3600 min-1
|
|
Max. Head:
|
66H(m)
|
|
CIP selection:
|
As per real situation
|
|
Driving mode:
|
By impeller installed on the inlet.
|
|
Mechanical seal:
|
C/SIC/EPDM
|
|
Sealing type:
|
Flushed double mechanical seal/single mechanical seal (standard)
|
|
Motor:
|
ABB / domestic is optional
|
|
Motor Frequency:
|
50HZ, 60HZ
|
|
Surface treatment:
|
Inner polished and Sandblast outside
|
|
Application structure:
|
ZXL
|
|
Available connection:
|
Tri-Clamp, Thread, Flange
|
|
Available standard:
|
DIN, SMS, 3A, RJT, ISO/IDF
|
|
Operated:
|
Electic
|
|
Low discharge option:
|
Low discharge/diaphragm valve/ball valve/butterfly valve
|
|
Certificate:
|
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
|
|
Application scope:
|
Dairy,food, beverage, pharmacy, cosmetic, etc
|
|
Packaging Details:
|
Plywood case or customerized. Or as per the request of customers.
|
|
Delivery details:
|
Usually within 20 days after receiving T/T down payment.
|
Applications
1. This pump is a sanitary lateral design self priming pump,it's suitable for food processing,
phamacy and chemical industry.
2. The pump is designed a side way pipe between inlet and outlet
3. It is specially designed for pumpling mterials containning air or gas, and it can also be used
for negative sution with prior priming as well as with filtration equipment
4. It can be sued for wine, oil,syrups, volatile products such as alcohol, and other
solvents or with products at temperatures close to boiling point.However, the main use of this
pump is for cip recover.
ZLX SERIES VARIOUS APPLICATION
Brewery : Beer, wort, Yeast, Water, CIP Solution
Dairy products : Milk, Cream, Yogurt, whey, saline, CIP Solution
Food: Deible Oil, Soup Sauce, Soup stock, Flvouring, Ice cream mixture
Other Application: Storage tank empty .
ZLX SERIES PUMP Inlet&outlet connection Standard
Connection: Thread, clamped, Flange, Aspetic Flange, KF etc
Standard: DIN, SMS,ISO, IDF, RJT, ASME BPE, 3A, I LINE
Suggestion of pump inlet/outlet connection distance
In order to ensure a certain self-priming capacity&stable operation and prolong the service lif of the self priming centrifugal pump, it is required to install strictly according to the inlet and outlet dimensions of the pump. It is strictly forbidden to use inlet pipeline smaller than the outlet size, otherwise it is easily cause pump shake, noise, NPSH increase, etc；the pump inlet connection needs to maintain a certian height, it is recommeded that the straight pipe height be 15-25 times the diameter of inlet pipeline(As show in (D-03)

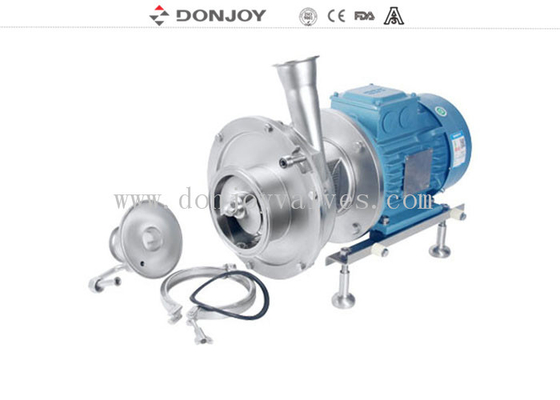

Mechanical Design
Donjoy DJ-ZLX Series self-priming centrifugal pump eachanical seal is researched and developed together with european swedish famous company. The mechanical seal is designed with pressure balance and super long working life. Can be disassembled and maintained easily without special tools. The sanitary purity is according to EU EHEDG, USA 3-A-02-11,FDA1772600 and so on . And has lots of configuaration.
Mechanical seal Materials option :
1. SIC/CEPDM, SIC/C/FKM, SIC/C/HNBR, SIC/SIC/EPDM, SIC/SIC/FKM, SIC/SIC/HNBR, TC/TCEPDM, TC/TC/FKM, TC/TC/HNBR.
ZLX Self Priming Centrifugal pump selection table :
Drawing of the ZLX Pump
More detial please contact us directly.
