Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
F-TOP1553
Contact Us

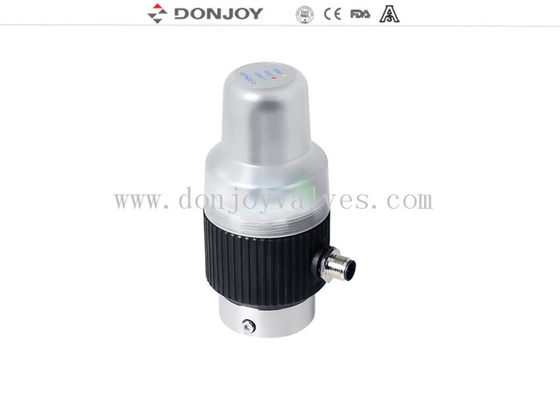

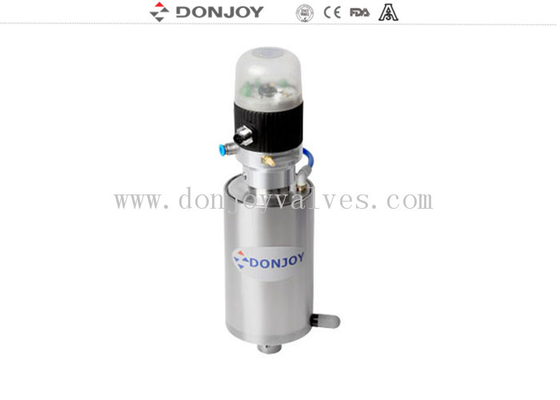

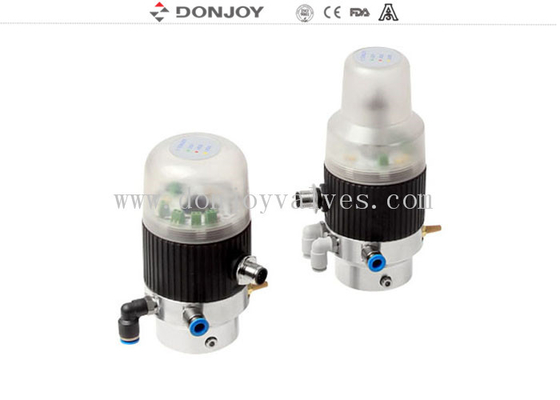

Pneumatic intelligent valve Sliding Stem Position feedback Control Unit F-TOP For Control Sanitary Valve
Technical Feature
1.Feedback output:PNP DC24V& 4-20mA
2.power Supply: DC24V±15%
3.Position offset accuracy±0.5mm
4.Leakproof diagnostic Function
5.Display: three-section Light Color open: Green/Red, Close:red/Green
6.Power Consumption:10mA
7.level of protection:IP67
8.Output max 3 postion and analog signal
SPECIFICATION
Product Name | Position feedback Control Unit F-TOP For Control Sanitary Valve |
Medium | Lubricated compressed air, inert gases |
Max. Working temperature | 70℃ |
Working pressure | 1.5 bar - 7 bar (22PSI to 102PSI) |
Connector | G1/8" |
Level of protection | IP67 |
Stroke | Min. 3mm; Max. 70mm |
Connecting cable | 2m |
Operation mode | Pneumatic operation |
Certificate |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
Position feedback F-TOP 1553(Recommend version) | ||||
![]() |
Range of application | Input control | Applicable actuator | Output signal |
Sliding stem pneumatic actuators or pneumatic valves | No | Single acting/Double acting/Three acting actuator |
PNP 3 position 4-20mA |
Stroke:
1. 60mm (Stanard)
2. 30mm(Optional)
3. 30mm(Optional)
Applications
F-TOP is a pneumatic valve position feedback unit which is used for rotary motion. it's mainly designed for process position feedback of valve. It's compatible with most PLC automatic system. With digital communication or AS-I BUS Communication. It's used to control all kinds of processing valves by position feedback output, 3-section LED light display, Leakproof, et. It could be installed to various kind of pneumatic valves, such as pneumatic butterfly valve, ball valve, globe valve etc which is in the rotary motion
Installation
