| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Model Number: | CIP-U |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-40 working days |
| Payment Terms: | T/T, LC, Credit Card |
| Supply Ability: | 10 sets 30 working days |
| Product: | Stainless Steel CIP Pump | Type: | CIP -U |
|---|---|---|---|
| Selection: | 10T / 24M / 5.5KW; 15T / 18M / 5.5KW / 20T / 11M / 5.5KW | Mechanical: | Single Seal |
| Inlet: | 2.5" Thread / Clamp / Ferrule | Outlet: | 2.5" Thread / Clamp / Ferrule |
| Structure: | Be Covered | ||
| High Light: | self priming high purity pumps,cip high purity pumps,-0.8bar high purity pumps |
||
CIP U type Purity pump with SS304 materials with large scution and high efficency
Soluction for highe efficiency , low noise, large suction, simple maintenance, high purity
Various Application for CIP Series
Superior self-priming capacity up to 8Meter, negative pressure can be -0.8bar
CIP Soluction
Tank emptying
Low liquid level can be 8 meter suction
Description
Options
1. Mechanical seal: C/SIC/EPDM
2. Gasket: viton/NBR
3. Connection: Thread, Clamp, Flange ( DIN, SMS, RJT, IDF )
Specifications
|
Product Name: |
CIP Pump |
|
Body Material: |
SS304 / SS316L / 1.4301 / 1.4404 |
|
Seal Material: |
EPDM (Standard, FDA approval) FPM(Viton) and NBR |
|
Max. Flow: |
35 m3/h |
|
Max. Speed: |
3600 min-1 |
| Max. rev: | 1750Min - 1 |
| Max. suction height | 8m / 22 ft |
|
Max. Head: |
42H(m) |
|
Max. Working Pressure: |
4.2Bar |
|
Max. Working |
120 °C |
|
Mechanical seal: |
C /SIC /EPDM |
|
Motor: |
ABB / domestic |
|
Motor Frequency: |
50HZ, 60HZ |
|
Availably connection: |
Tri-Clamp, Thread, Flange |
|
Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Electic |
|
Low discharge option : |
Low discharge / diaphragm valve / ball valve / butterfly valve |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic etc |
Applications
1. This pump is a sanitary lateral design self priming pump,it's suitable for food processing, phamacy and chemical industry.
2. It is specially designed for pumping mterials containing air or gas, and it can also be used for negative sution with prior priming as well as with filtration equipments
3. It can be sued for wine, oil,syrups, volatile products such as alcohol, acetone and other solvents or with products at temperatures close to boiling point.However, the main use of this pump is for cip recover.
Operation Principles

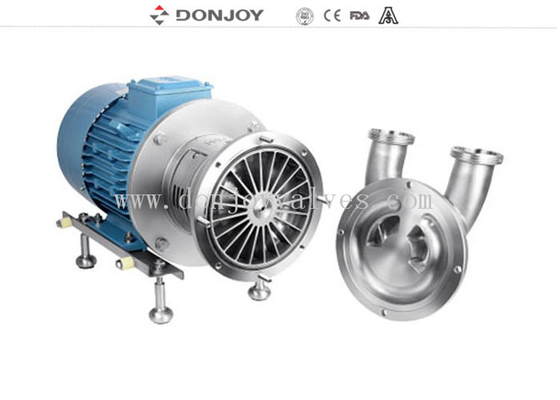

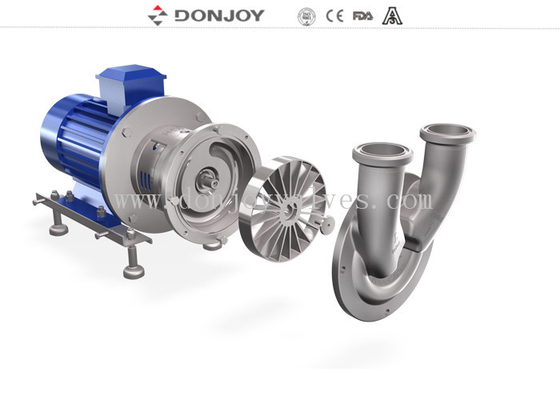

1. The impeller is housed beteween the inlet body and the venturicasing and it rotates in connjunction with the pup shaft
2. The rotation of the impeller and arrangement of the side channel,creates a negative pressure inside the inlet body
3. Which generates the suction force of the pump. At the same time, the fluid recives energy in the form of kinetic energy and pressure eneygy, and this impels it through the impeller casing.
Design and features

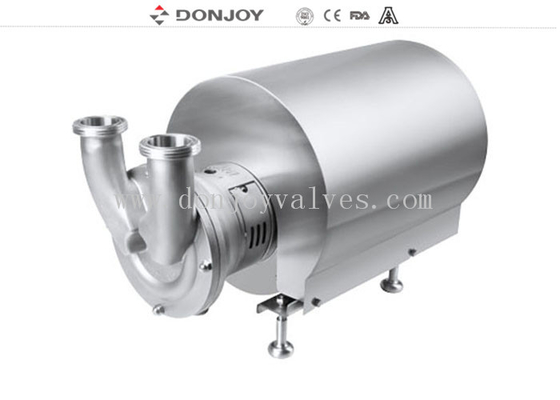

1. Motor cover manufactured with Cold-formed plate
2. stainless steel investment casting inlet body and impeller
3. Mechanical seal prevents contacting between the spring and the pumped fluid.
4. Stainless steel support
5. Surface finished: Sandblast
Materials
Technical specifications
