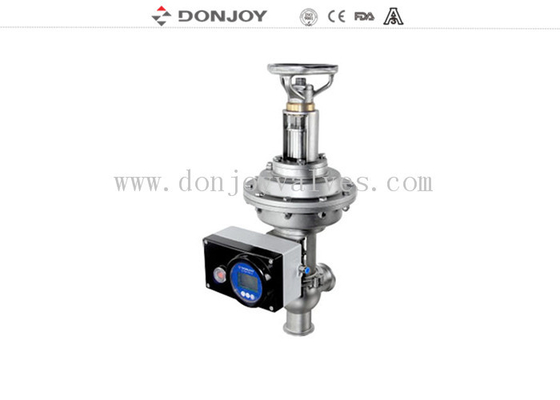

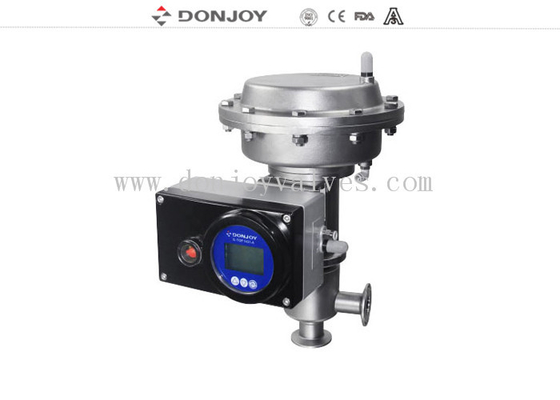

20 Bar Diaphragm Pneumatic with Valve Positioner
Brief
Size:1"-8", DN25-DN200
Materials: Stainless steel, AISI 304/1.4301, AISI16L/1.4404
Standard: DIN, SMS, 3A, ISO, RJT etc.
Connection: Welding, Clamp, Thread, Flange etc.
Flow pattern: Direct way
Operating type: Manual, Pneumatic, Control Head, Positioner etc.
Specification
|
Product Name:
|
High pressure diaphragm type pneumatic actuator |
|
Valve Body Material:
|
SS304 or SS316L
|
|
Working Pressure:
|
20Bar
|
|
Working temperature:
|
120 degree
|
|
Available size:
|
DN25-DN200 or 1" - 8"
|
|
Connection:
|
Weld, Clamp, Thread, Flange etc.
|
|
Operated:
|
Control head
|
|
Configuration:
|
IL-TOP / C-TOP / FKQ-TOP etc.
|
|
Signal indicator box:
|
Optional
|
|
Structure:
|
With IL - TOP
|
|
Model number:
|
VJZ223Q2
|
|
IL - TOP:
|
Intelligent valve positioner
|
Feature
With intelligent valve position / IL - TOP
With pneumatic actuator
Optional
C -TOP / IL - TOP / electric controller
Model Choose
| Size |
Action |
Recommend range |
Max pressure |
| Working for straight stroke valve |
| 150 |
Single acting |
DN25-DN50,1"-2" |
20 bar |
| DN65,2.5" |
10 bar |
| DN80,3" |
8 bar |
| DN100,4" |
5 bar |
| 150 |
Double acting |
DN25-DN50,1"-2" |
20 bar |
| DN65,2.5" |
20 bar |
| DN80,3" |
16 bar |
| DN100,4" |
10 bar |
| 250 |
Single-acting |
DN65,2.5" |
20 bar |
| DN80,3" |
20 bar |
| DN100,4" |
20 bar |
| DN125,5" |
8 bar |
| DN150,6" |
6 bar |
| 250 |
Double acting |
DN100,4" |
20 bar |
| DN125,5" |
15 bar |
| DN150,6" |
10 bar |
| DN200,8" |
8 bar |
Drawing
| Size |
Q |
H |
W |
| 200 |
200 |
200 |
263 |
| 286 |
286 |
256 |
263 |
