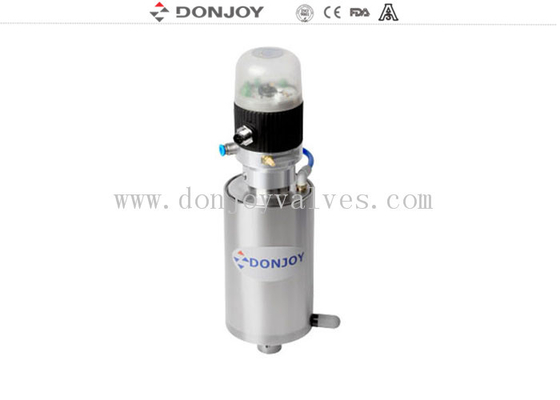

DONJOY stainless steel pneumatic actuator with position feedback unit F-TOP for open and close valve
SPECIFICATION
|
Product Name
|
Stainless steel pneumatic actuator with position feedback
|
|
Version
|
Single acting or double acting or three acting
|
|
Optional
|
Gasket: NBR / MVQ / FPM
|
|
Medium
|
Lubricated compressed air, inert gases
|
|
Max. Working temperature
|
70℃
|
|
Working pressure
|
1.5 bar - 7 bar (22PSI to 102PSI)
|
|
Connector
|
G1/8"
|
|
Level of protection
|
IP67
|
|
Stroke
|
Min. 3mm; Max. 70mm
|
|
Connecting cable
|
2m
|
|
AS-I BUS
|
max. length: 1m
|
| Position feedback F-TOP 1553(Recommend version) |
 |
Range of application |
Input control |
Applicable actuator |
Output signal |
| Sliding stem pneumatic actuators or pneumatic valves |
No |
Single acting/Double acting/Three acting actuator |
PNP 3 position
4-20mA
|
| Pneumatic actuator |
|
Size |
Function |
Recommend products |
| Butterfly valve |
Ball valve |
| 70 |
single acting/double acting |
0.5"-2"/DN10-DN50 |
0.5"-1"/DN10-DN25 |
| 85 |
Single acting/Double acting |
1"-4"/DN25-DN100 |
0.5"-1.5"/DN10-DN40 |
| 114 |
Single acting/Double acting |
4"-5"/DN100-DN125 |
2"-2.5"/DN50-DN65 |
| 133 |
Single acting/Double acting |
6"-8"/DN150-DN200 |
3"-4"/DN80-DN100 |
| 168 |
Double acting |
10"-12"/DN250-DN300 |
4"/DN100 |
Applications

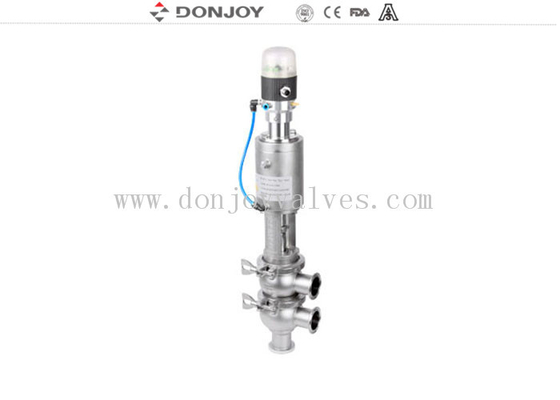

Pneumatic actuator with feedback control unit F - TOP is a pneumatic controller which is designed to ensure optimum control valve.
It is compatible with most PLC automatic system. In the industry of food, beverage, pharmacy,it could be installed to all kinds of pneumatic valves such as mixture proof valve, butterfly valve, ball valve, diaphragm valve, reversing valve and globe valve etc.
FAQ
Q1: Are you factory or trading company?
A1: We are factory. and we have all kinds of the products.
Q2: Where is your factory located? how can I visit there?
A2: Our factory is located in Wenzhou city, Zhejiang Province,China
Welcome you visit our factory for business negotiation. Please try to contact our staff first by email or telephone. we will make an appointment and arrange the pick up.
Q3: Can your factory print our brand on the product.
A3: Our factory can laser print customer’s logo on the products.
Q4: What is the Warranty for the products?
A4: 1 year,but not including quick-wear parts,like O-ring
Q5: Can we pay using Paypal for the samples? Does it cost extra ?
A5: Sorry we only accept TT.
Q6: Do you charge for samples or freight?
A6: According to our company policy, customers need pay for them, we will return sample charge to you in official order.
