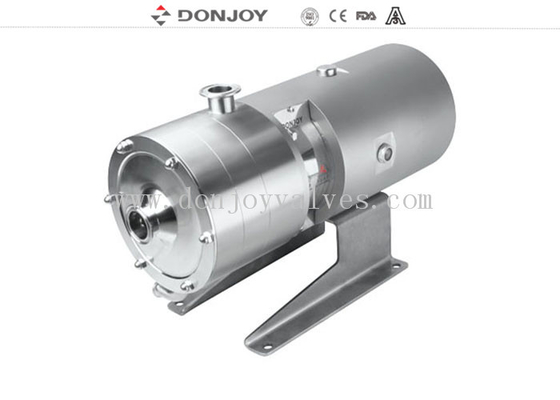

Refinement Multi Stage Emulsifying Homogenizing Pump

Refinement Multi Stage Emulsifying Homogenizing Pump

    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: DJ-JZ3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Name: High Pressure Pump Type: JZ - 3
    Flow Rate: 10 - 30T/H Inlet: 2" Thread / Clamp / Ferrule
    Outlet: 1.5" Thread / Clamp / Ferrule Motor Type: Could Be Optional
    High Light:

    Emulsifying Homogenizing Pump


    Refinement High Purity Pumps


    Multi Stage High Purity Pumps

    Multi-Stage emulsifying homogenizing pump for mixing and refinement


    JZ3 Series is online continuity production emulsification homogeneous pump, and is composed by stators and rotors, processed materials will be stepwise dispersed, sheared, refined, curshed, emulsified, mixed and homogenized through three grades twelve-tier stators and rotors. And then be dispersed, cut, refined, smashed, emulsified, mixed etc. step by step.Compared with traditional manufacturing technique, this pump is more easier, convenient and optimized, which hase improved production efficiency and promoted meida quality.



    Product Name:

    multi-stage homogeneous softening pump for producing processing

    Pump Body Material:


    Seal Material:

    EPDM (Standard, FDA approval) FPM(Viton) and NBR

    Max. Flow:

    50 m3/h

    Max. Speed:

    3600 min-1

    Max. Head:


    Max. Working Pressure:


    Max. Working Temperature:

    120 °C

    Mechanical seal:

    C/SiC/EPDM(Standard), C/SIC, TC/TC


    Sealing type:

    Flushed double mechanical seal/single mechanical seal(standard)

    Motor power:



    440V, 220V, 380V



    Motor Frequency:

    50HZ, 60HZ

    Surface treatment:

    Inner polished and Sandblast outside

    Application structure:


    Available connection:

    Tri - Clamp, Thread, Flange

    Available standard:





    Opening impeller


    Driven by rotary impeller



    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc



    1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM

    2. Gasket: viton/NBR

    3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)

    4. Motor: 2900,1450,3600Min/1,50HZ,60HZ

    5. stators and rotors


    1.Food and beverage: jiuce, jam, ice cream, dairy products, food additives, tea drinks,chocolate, soymilk,essence, salad dressing, Chilli sauce, mayonnaise, tomato sauce, mustard, Yogurt, sour cream, flavored milk, pudding and other types of materials

    2.Daliy chemical: Liquid detergent, liquid soap, facial cleanser, emulsified silicone oil, fragrance compound, skin care product, cosmetics, cream, shampoo, shower gel,etc

    3.Bio-pharmaceutical:Injection, antibiotic, drug emulsion,meulsion, medicine cream paste, health care products, microcapsule emulsification, lotion, cell tissue breakage etc.

    4.Additives and thickeners: Aspartame, non-skimmed milk powder, salt, citric acid, sugar, egg powder, whey protein concentrate, calcium carbonate, honey, powder essence and other additives, gels,pectin, synthetic thickeners, starch, gelatin and other thickeners.

    5.Petrochemical Industry: Lubricant, heavy oil emulsification, diesel oil emulsification, modified asphalt, catalyzer, wax emulsion etc. which media need to be emulsified and homogenized.

    6.fine chemical engineering:pigment, dyestuff, plastic additive, textile assistant, adhesive, resin emulsification, hot melt adhesive , sealant, glue, sizing agent, finishing agent, surfactant, dye leveller, carbon black dispersion,anti-sticking agent,textile finished agent, brightener, leather auxiliaries, pigment paste etc.Which media need to be emulsified and homogenized.


    Technical Advantage

    Maintenace disassembly and installation can be completed without professional staff and special tools

    Initial use of installation debugging, the motor will not be damaged even if afer a short reverse rotarion

    The impeller and shaft are connected by the key groove


    Selection Table

    Refinement Multi Stage Emulsifying Homogenizing Pump 0


    Refinement Multi Stage Emulsifying Homogenizing Pump 1

    Refinement Multi Stage Emulsifying Homogenizing Pump 2

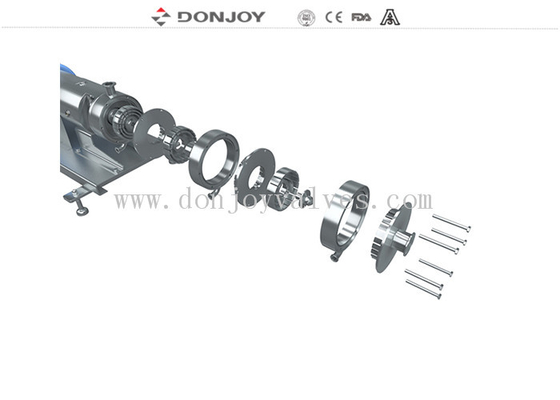

    Spare parts component

    Refinement Multi Stage Emulsifying Homogenizing Pump 3


    Product display

    Refinement Multi Stage Emulsifying Homogenizing Pump 4


    Refinement Multi Stage Emulsifying Homogenizing Pump 5

    The gap between the stator and the rotor is 0.5mm

    Refinement Multi Stage Emulsifying Homogenizing Pump 6

    Competitive Advantage
    “DONJOY is the only company that pass nine series of products by American 3A certification

    organization in Asian sanitary pumps and valves field.”
