Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
DJ-JZ3
Contact Us

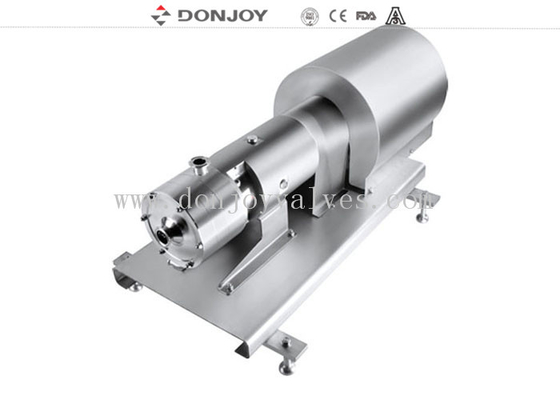

Three stage emulsifying homogenizing pump for mixing and transfer soymilk
Specifications
Product Name: |
multi-stage homogeneous softening pump for producing processing |
Pump Body Material: |
SS304/SS316L/1.4301/1.4404 |
Seal Material: |
EPDM (Standard, FDA approval) FPM(Viton) and NBR |
Max. Flow: |
50 m3/h |
Max. Speed: |
3600 min-1 |
Max. Head: |
50H(m) |
Max. Working Pressure: |
5bar |
Max. Working Temperature: |
120 °C |
Mechanical seal: |
C/SiC/EPDM(Standard), C/SIC, TC/TC |
Sealing type: |
Flushed double mechanical seal/single mechanical seal(standard) |
Motor power: |
7.5kw,11kw,15kw,18.5kw,22kw... |
Voltage: |
440V, 220V, 380V |
Motor: |
ABB/domestic/SIEMENS |
Motor Frequency: |
50HZ, 60HZ |
Surface treatment: |
Inner polished and Sandblast outside |
Application structure: |
JZ-3 |
Available connection: |
Tri - Clamp, Thread, Flange |
Available standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
Operated: |
Electic |
Impeller |
Opening impeller |
Transfer |
Driven by rotary impeller |
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
Option
1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM
2. Gasket: viton/NBR
3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)
4. Motor: 2900,1450,3600Min/1,50HZ,60HZ
5. stators and rotors
Application
1.Food and beverage: jiuce, jam, ice cream, dairy products, food additives, tea drinks,chocolate, soymilk,essence, salad dressing, Chilli sauce, mayonnaise, tomato sauce, mustard, Yogurt, sour cream, flavored milk, pudding and other types of materials
2.Daliy chemical: Liquid detergent, liquid soap, facial cleanser, emulsified silicone oil, fragrance compound, skin care product, cosmetics, cream, shampoo, shower gel,etc
3.Bio-pharmaceutical:Injection, antibiotic, drug emulsion,meulsion, medicine cream paste, health care products, microcapsule emulsification, lotion, cell tissue breakage etc.
4.Additives and thickeners: Aspartame, non-skimmed milk powder, salt, citric acid, sugar, egg powder, whey protein concentrate, calcium carbonate, honey, powder essence and other additives, gels,pectin, synthetic thickeners, starch, gelatin and other thickeners.
5.Petrochemical Industry: Lubricant, heavy oil emulsification, diesel oil emulsification, modified asphalt, catalyzer, wax emulsion etc. which media need to be emulsified and homogenized.
6.fine chemical engineering:pigment, dyestuff, plastic additive, textile assistant, adhesive, resin emulsification, hot melt adhesive , sealant, glue, sizing agent, finishing agent, surfactant, dye leveller, carbon black dispersion,anti-sticking agent,textile finished agent, brightener, leather auxiliaries, pigment paste etc.Which media need to be emulsified and homogenized.
Technical Advantage
Maintenace disassembly and installation can be completed without professional staff and special tools
Initial use of installation debugging, the motor will not be damaged even if afer a short reverse rotarion
The impeller and shaft are connected by the key groove
Selection Table
Drawing
Spare parts component
Product display

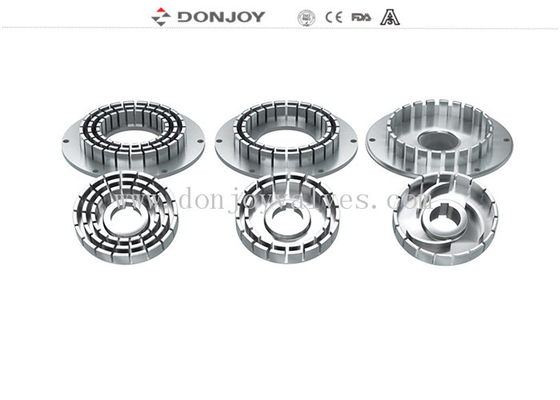

The gap between the stator and the rotor is 0.5mm
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification
organization in Asian sanitary pumps and valves field.”
