SS316L 1.5" Thread Dispersing Food Grade Homogenizer Pump

SS316L 1.5" Thread Dispersing Food Grade Homogenizer Pump

Food Grade Homogenizer Pump

SS316L Homogenizer Pump

1.5" Thread Homogenizer Pump

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

JZ-1

Contact Us

Request A Quote
Product Details
Materials:
SS304 SS316L
Type:
JZ-1
Operation:
Mechanical ABB Motor
Connection:
1.5" Thread
Mechanical:
Single Seal
Medium:
Beer / Drug / Beverage Etc.
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

SS316L High Shear Dispersing Emulsifier Mixer Homogenizer Pump For Food Grade



Solution for high-effciency , dispersion, cut, refinement, smash, emulsification, mixing, homogenization, high purity

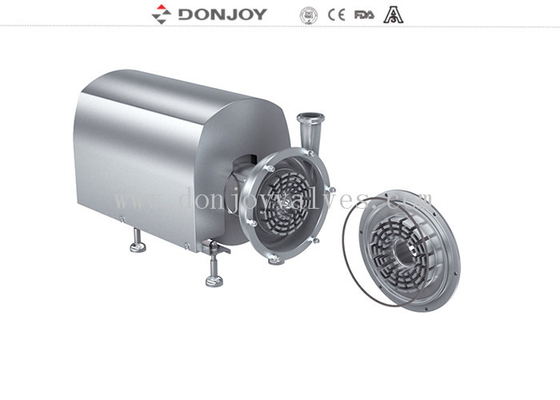

JZ1 Series is emulsifying homogenizing pump that could be operated for continuous production, and is composed of stator and rotor. The processed media will be operated through 6-10 layers stators and rotors, and then be dispersed, cut, refined , smashed, emulsified, mixed etc. Step by step. Compared with traditional manufacturingand optimized, which has improved production efficiency and promoted media quality. It's mainly used in the industry of food, beverage, phamacy, health protection, fine, chemistry, coating, pesticide, daily chemical, papermaking,etc..



Description

Options

1. Mechanical seal: SIC / SICE / EPDM, TC / TC,EPDM

2. Gasket: viton/NBR

3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)

4. Motor: 2900,1450,3600Min/1,50HZ,60HZ

5. Outside Surface sinishing:sandblast or mirror polish



Specifications

Product Name:

single-stage homogeneous softening High Purity Pumps for pharmaceutical

Pump Body Material:

SS304 / SS316L / 1.4301 / 1.4404

Seal Material:

EPDM (Standard, FDA approval) FPM (Viton) and NBR

Max. Flow:

40 m3/h

Max. Speed:

3600 min-1

Max. Head:

70H (m)

Max. Working Pressure:

7bar / 99 PSI

Max. Working Temperature:

120 °C

Mechanical seal:

SIC/Sic/EPDM(Standard), C/SIC, TC/TC



Sealing type:

Flushed double mechanical seal / single mechanical

seal(standard)

Motor power:

1.1kw, 1.5kw, 2.2kw

Voltage:

440V, 220V, 380V

Motor:

ABB / domestic / SIEMENS

Motor Frequency:

50HZ, 60HZ, (0-100 HZ)

Surface treatment:

Inner polished and Sandblast outside

Application structure:

JZ

Availably connection:

Tri-Clamp, Thread, Flange

Availably standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Eclectic

Low discharge option :

Low discharge/diaphragm valve/ball valve/butterfly valve

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc



Packaging Details:

Plywood case or customerized. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.



Technical Advantages



Maintenance disassembly and installation can be complete without professional staff and special tools

Initial use of installation debugging, even if a short reverse rotation will not be samaged

Impeller and shaft are connected by keyway, impeller and mechanical seal rotating ring are connected by pin. Mechanical seal static ring and pump body are connected by special-shaped flange.

Compatible with single and double machine seal, only need to change machine seal.



Applications

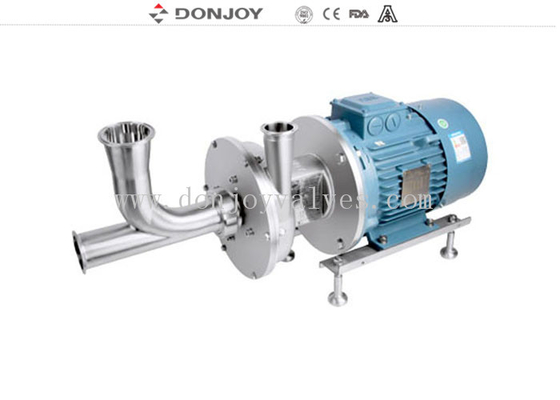

1. This pump is manufactured in stianless steel and with a shrouded motor.

2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.



Selection Table

SS316L 1.5" Thread Dispersing Food Grade Homogenizer Pump 0

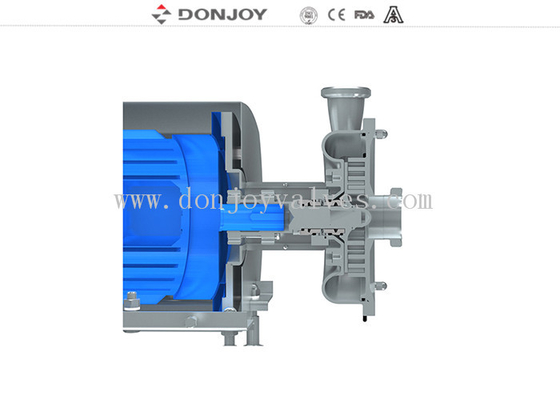

Drawing

SS316L 1.5" Thread Dispersing Food Grade Homogenizer Pump 1

SS316L 1.5" Thread Dispersing Food Grade Homogenizer Pump 2

SS316L 1.5" Thread Dispersing Food Grade Homogenizer Pump 3

Tag : Sanitary pumps, emulsifying pump,Homogenizing pump
