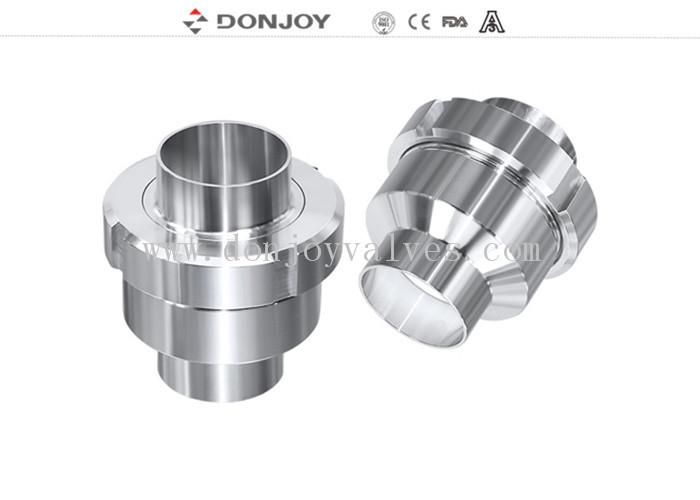

SS316L Sanitary Spring Hydraulic Check Valves For Beverage

SS316L Sanitary Spring Hydraulic Check Valves For Beverage

Sanitary Spring Hydraulic Check Valves

SS316L Hydraulic Check Valves

Beverage Hydraulic Check Valves

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VZH110A1

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
SIZE:
1/2"-4", DN10-DN100
Stanadard:
DIN,3A,SMS,ISO,IDF,RJT
Connection:
Welded/Clamp /Union, Thread
Surface Treatment::
(Internal) Ra ≥0.4-0.8μm , (External) Ra ≥0.8-1.6μm
Gasket:
EPDM/VITAON
Medium:
Water
Working Temperature:
-10℃ To 120℃
Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

316L Sanitary Spring Non Return Valve Stainless Steel Check Valve



Specification

Product Name: 316L Sanitary Spring Non Return Valve Stainless Steel Check Valve
Valve Body Material: SS304 or SS316L
Seal Material: EPDM
Max. Working Pressure: 10Bar
Opening pressure: 0.1-0.3bar
Max. Working Temperature: 120 degree C
Availably size: 1/2"-4", DN10-DN100
Availably connection: Thread,Weld,
Availably standard: DIN,SMS,3A,RTJ
Certificate: FDA,CE



Description:



Option of Hydraulic check valves

1 Connection: Clamp, Weld, Thread

2. SEAL: NBR, FPM,PTEF all according to FDA177.2600

3. Standard: DIN,SMS, RJT, IDF, ISO, 3A



CONCEPT

Sanitary check valve, also known as "non-return valve", is designed for use in process piping installations to prevent reverse flow. VCN series is a spring check valve with different connection ends.




Applications:

1. Check valve is a valve that prevents the fluid from flowing back and ensures to flow in only one direction.

2. It can be used to prevent the flow less from returning avoid pipe-hammering.

3. It is used in the food processing,beverages, wine, oil,cosmetics, pharmaceutical and chemical industries.



Operating Principle

The valve opens when the pressure of the fluid exceeds the pressure to spring, When the two pressures are equalised, the valve closes, A stronger counter – pressure also makes the valve close.



Drawing

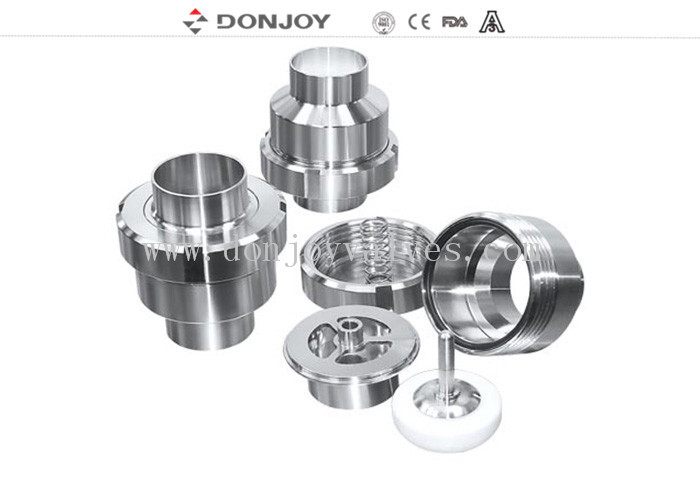

SS316L Sanitary Spring Hydraulic Check Valves For Beverage 0





Q: Why would I choose you?
DONJOY has been engaging in manufacturing sanitary valves, fittings, tank components and pumps for over 27 years, outstanding in production capacity, effective management, accurate lead time, on-time shipments and problems-solvingrate after sales.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity for test for first time cooperation.


Q: Hong long that you company for export experience ?
we have more than 20 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).


Q: What’s the payment term?
T/T and Credit Card,L/C


Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.


Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.



Tag : non return valve, check valve. Sanitary valve
