Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
NO.VZH110A1-2016
Contact Us

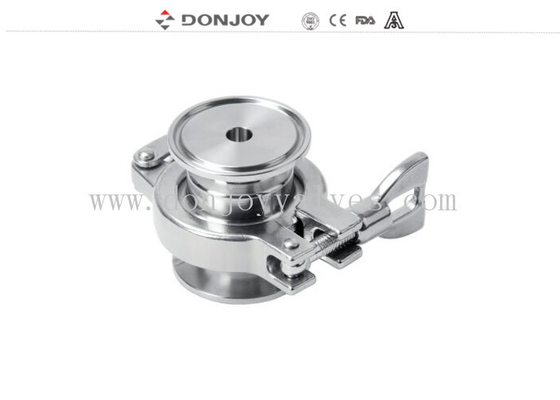

Hygienic AMSE BPE check valve/DIN check valve 1INCH
Sanitary check valves are specifically used for the food handling and processing industries to prevent backflow of product. Commonly used with liquid products, spring check valves are designed to assist closure pressure to create a positive shutoff
Specification
| Product Name: | 316L Sanitary Spring Non Return Valve Stainless Steel Check Valve |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | EPDM |
| Max. Working Pressure: | 10Bar |
| Opening pressure: | 0.1-0.3bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1/2"-4", DN10-DN100 |
| Availably connection: | Thread,Weld, |
| Availably standard: | DIN,SMS,3A,RTJ |
| Certificate: | FDA,CE |
Description:
Option of Hydraulic check valves
1 Connection: Clamp, Weld, Thread
2. SEAL: NBR, FPM,PTEF all according to FDA177.2600
3. Standard: DIN,SMS, RJT, IDF, ISO, 3A
Technical Specifications :
Max pressure : 10Bar
Opening Pressure : 0.3Bar ( DN25, 1INCH )
0.2Bar, (DN32/DN40,1.25-1.5INCH)
0.1Bar, (DN50-DN100)
Applications:
1. Check valve is a valve that prevents the fluid from flowing back and ensures to flow in only one direction.
2. It can be used to prevent the flow less from returning avoid pipe-hammering.
3. It is used in the food processing,beverages, wine, oil,cosmetics, pharmaceutical and chemical industries.
Operating Principle
The valve opens when the pressure of the fluid exceeds the pressure to spring, When the two pressures are equalised, the valve closes, A stronger counter – pressure also makes the valve close.
Sanitary Check Valves can be installed horizontally or vertically. However, the following specifications must be followed for ball and disk check valves:
– Ball Check Valve –
In a vertical setting, the product has to flow from bottom to top so that gravity can push the ball in and out of the seat.
In a horizontal setting, the curved portion of the valve needs to be upright and at 90 degrees to the pipe. This makes sure that the valve is free-draining and the ball sits properly.
– Disk Check Valve –
Disk Check Valves are not free-draining in a vertical setting. Therefore, for them to be free-draining, they need to be in a horizontal position.

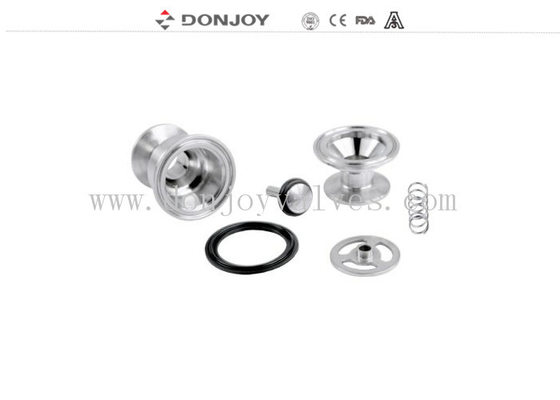

Drawing
Q: Why would I choose you?
DONJOY has been engaging in manufacturing sanitary valves, fittings, tank components and pumps for over 27 years, outstanding in production capacity, effective management, accurate lead time, on-time shipments and problems-solvingrate after sales.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity for test for first time cooperation.
Q: Hong long that you company for export experience ?
we have more than 20 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
T/T and Credit Card,L/C
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
Tag : non return valve, check valve. Sanitary valve
