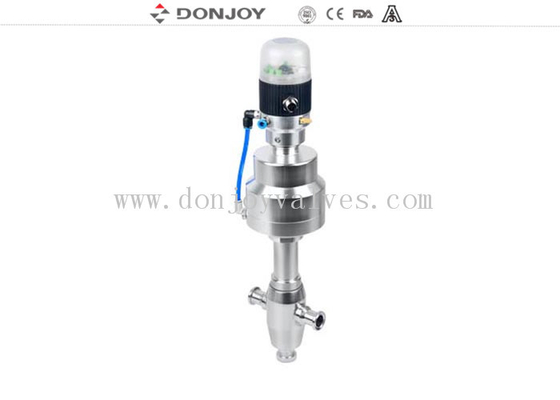

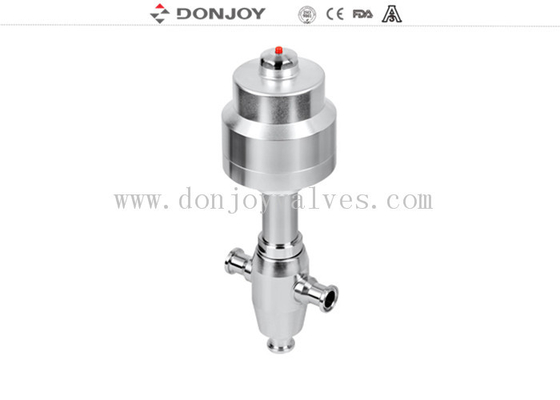

Pneumatic 3 Way Shut Off Globe Valve With Control Top

Pneumatic 3 Way Shut Off Globe Valve With Control Top

  • Pneumatic 3 Way Shut Off Globe Valve With Control Top
  • Pneumatic 3 Way Shut Off Globe Valve With Control Top
Pneumatic 3 Way Shut Off Globe Valve With Control Top
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.VJZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Product Name: Globe Valve Size Of Panel: DN10-DN100,1/2"-3"
Operation: Pneumatic, Control Head, Media: Ss304/ss316L
Connection: Clamp Working Temperature: 120℃ (standard)180℃(optional)
Working Pressure: 8bar(standard) 10bar(optional)
High Light:

SS304 Shut Off Globe Valve

,

DN10 Shut Off Globe Valve

,

EPDM Seal Shut Off Globe Valve

 Donjoy Pneumatic 3way Shut-off Globe Valve with Control Top for steam



specifications:

Product Name: Shut off globe valve
Valve Body Material: CF8M/316L
Seal Material: EPDM
Max. Working Temperature: 120 degree ,180Degree(Option)
Availably size: DN15-DN65 or 0.5" - 2.5"
Availably connection: Thread,Weld,Clamp,BSP/BSP/NPT
Operate: Pneumatic ,Manual, Control Head
Certificate: FDA,CE,ISO



Operation Options for Globe Valve

1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice:Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor



Operationg Principles

1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.



Applications:

Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.



Drawing



Pneumatic 3 Way Shut Off Globe Valve With Control Top 0

Curve



Pneumatic 3 Way Shut Off Globe Valve With Control Top 1

Relate Products

Pneumatic 3 Way Shut Off Globe Valve With Control Top 2

  Pneumatic 3 Way Shut Off Globe Valve With Control Top 3

  Pneumatic 3 Way Shut Off Globe Valve With Control Top 4

Tag: Donjoy Angle seat valve, Steam Valve, Shut off valve
