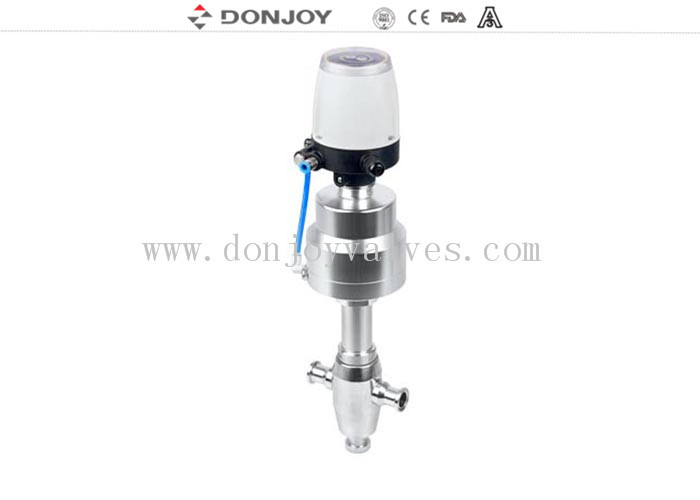

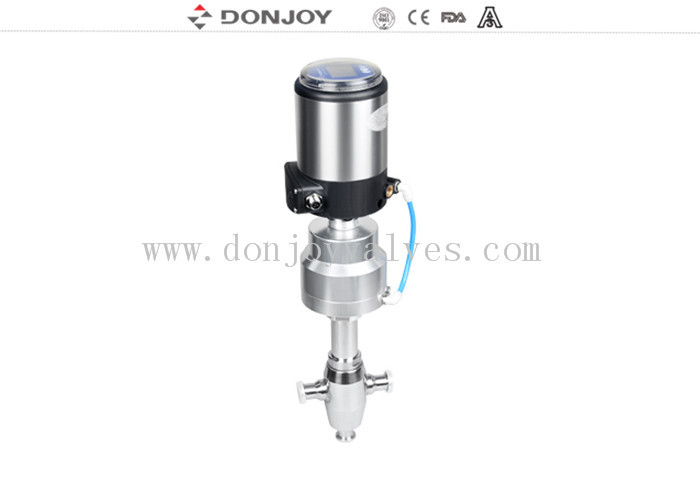

Water Treatment SS316L 1/2" Clamp 3 Way pneumatic Globe Valve

Large Image : Water Treatment SS316L 1/2" Clamp 3 Way pneumatic Globe Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.VJZ

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Product Name:	Globe Valve	Size Of Panel:	DN10-DN100,1/2"-3"
Operation:	Pneumatic, Control Head,	Media:	Ss304/ss316L
Connection:	Clamp	Working Temperature:	120℃ （standard）180℃（optional）
Working Pressure:	8bar(standard) 10bar(optional)
Highlight:	1/2" Clamp 3 Way Globe Valve , SS316L 3 Way Globe Valve , FDA 3 Way Globe Valve

Donjoy 1/2" Clamp 3 way globe valve with valve real postion feedback(IL-TOP)

specifications:

Product Name:	Mini globe valve
Valve Body Material:	CF8M/316L
Seal Material:	EPDM
Max. Working Temperature:	120 degree ,180Degree(Option)
Availably size:	DN15-DN65 or 0.5" - 2.5"
Availably connection:	Thread,Weld,Clamp,BSP/BSP/NPT
Operate:	Pneumatic ,Manual, Control Head
Certificate:	FDA,CE,ISO

Operation Options for Globe Valve

1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice:Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

Operationg Principles

1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.

Applications:

Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

Drawing

Water Treatment SS316L 1/2" Clamp 3 Way pneumatic Globe Valve 0

Curve

Water Treatment SS316L 1/2" Clamp 3 Way pneumatic Globe Valve 1
