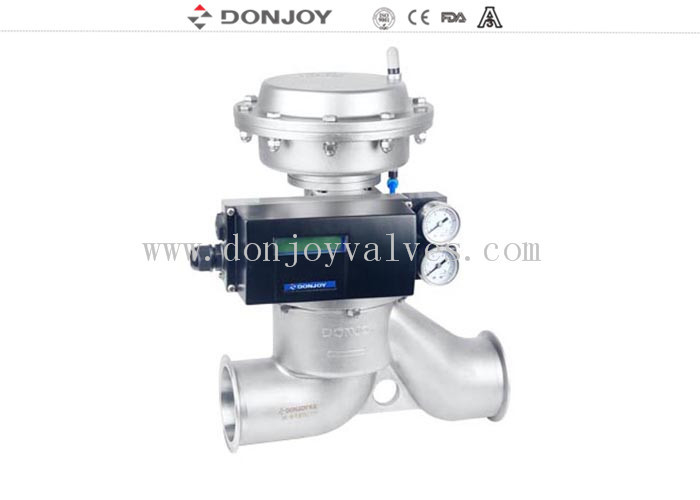

5" Globe Valve With Stainless Steel Actuator With Explosion-Proof Positioner For Mine

5" Globe Valve With Stainless Steel Actuator With Explosion-Proof Positioner For Mine

    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VJZ210Q2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Globe Valve Size Of Panel: 2.5"-6”
    Operation: Manual Material: Stainless Steel
    Connection: Tri Clamp Range Of Application: Food,washing,water Treamtment .etc
    High Light:

    CF8M Manual Globe Valve

    ,

    Explosion Proof Positioner Globe Valve

    ,

    DN150 Manual Globe Valve

    5" Globe valve with Stainless steel actuator with Explosion-proof positioner for mine



    Detail:

    Globe  Valve

    Connection: Clamped, Thread, Welding,Flange

    Standard: DIN,3A,SMS,ISO,IDF, RJT..

    Certificate: CE, 3A, FDA..





    Operation Options for Globe Valve

    1. Manual:Plastic handwheel, Stainless steel Wheel

    2. Pnuematice:Plastic and stainless steel actuators, Diaphragm type actuator

    3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor



    specifications:

    Product Name: 5" Globe valve with Stainless steel actuator with Explosion-proof positioner for mine
    Valve Body Material: CF8M, SS316l
    Seal Material: EPDM/PTFE
    Working Pressure: 8 Bar, 10Bar(option).
    Max. Working Temperature: 120 degree ,180Degree(Option)
    Availably size: 2.5"-6",DN65-DN150
    Availably connection: Thread,Weld,Clamp,BSP/BSP/NPT
    Operate: Actuator
    Certificate: FDA,CE,ISO





    Applications:

    Globe valve is a general switch in the automactic control system is widely used in wine, printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.



    Working principle



    A globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.

    Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug can be screwed in to close (or shut) the valve. The plug is also called a disc or disk. In globe valves, the plug is connected to a stem which is operated by screw action using a handwheel in manual valves. Typically, automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly.



    Drawing of valve

    5" Globe Valve With Stainless Steel Actuator With Explosion-Proof Positioner For Mine 0



    Different operation of the globe valve

    1. Pneumatic globe valve

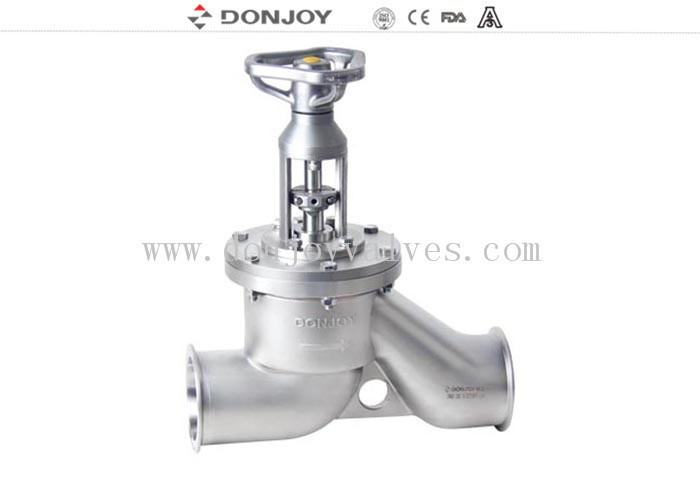

    2.Manual globe valve

    3. Pneuamtic globe valve+positioner

    4.Stainless steel hand globe valve

    5.Pneumatic globe valve+ Ctop

    6.Stainless steel pneumatic globe valve

    7.Pneuamtic globe valve+ valve position regulater

    8. Pneumatic globe valve+psoitioenr sensor

    5" Globe Valve With Stainless Steel Actuator With Explosion-Proof Positioner For Mine 1

    5" Globe Valve With Stainless Steel Actuator With Explosion-Proof Positioner For Mine 2

    5" Globe Valve With Stainless Steel Actuator With Explosion-Proof Positioner For Mine 3
