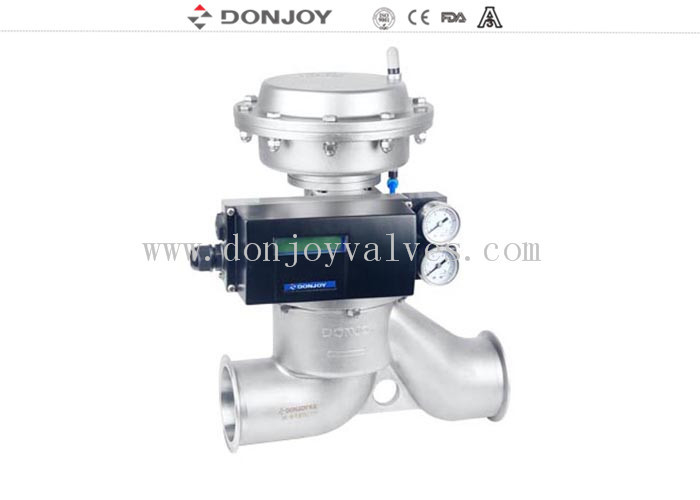

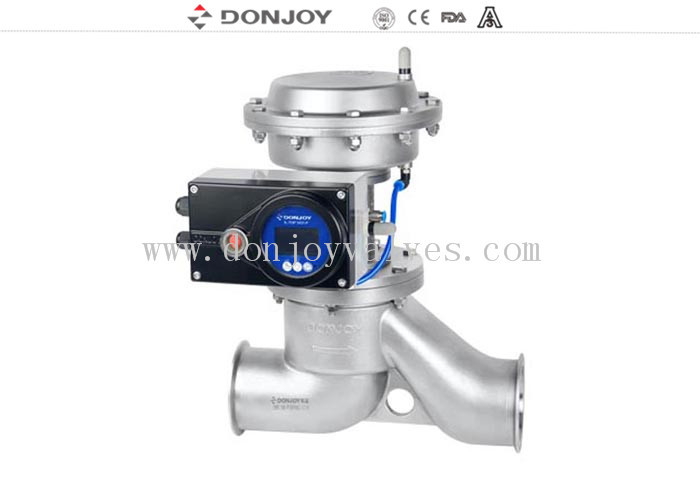

DN100 Globe Valve With Stainless Steel Actuator With IL TOP1441 For Food

DN100 Globe valve with Stainless steel actuator with IL TOP1441 for Food

Detail:

Globe  Valve

Connection: Clamped, Thread, Welding,Flange

Standard: DIN,3A,SMS,ISO,IDF, RJT..

Certificate: CE, 3A, FDA..

Operation Options for Globe Valve

1. Manual:Plastic handwheel, Stainless steel Wheel

2. Pnuematice:Plastic and stainless steel actuators, Diaphragm type actuator

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

specifications:

Applications:

Globe valve is a general switch in the automactic control system is widely used in wine, printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

Working principle

Operationg Principles

1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed
air, the shaft is moved to place the valve in the "open" or "closed" position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed

Drawing of valve

Different operation of the globe valve

1. Pneumatic globe valve

2.Manual globe valve

3. Pneuamtic globe valve+positioner

4.Stainless steel hand globe valve

5.Pneumatic globe valve+ Ctop

6.Stainless steel pneumatic globe valve

7.Pneuamtic globe valve+ valve position regulater

8. Pneumatic globe valve+psoitioenr sensor

Tag : Angle seat valve, Globe valve, Position Valve
