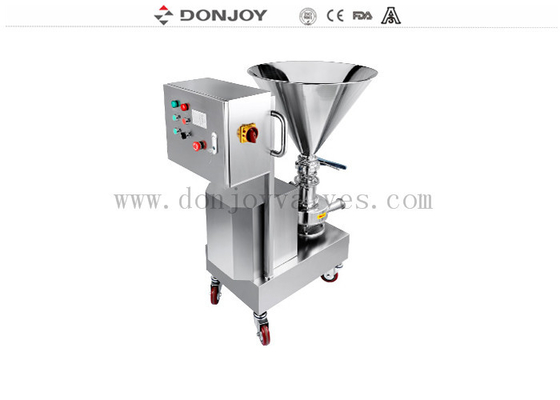

SS316L HHQ-50 Blender with control box and Trollery for mixing

Large Image : SS316L HHQ-50 Blender with control box and Trollery for mixing

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	HHQ-20

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	15-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Materials:	Stainless Steel 316L	Flow:	50T/11KW
Mechanical:	Single Seal / Double Seal	Liquid Inlet:	3" Ferrule
Hopper:	45L	Motor:	380V/50HZ
Item Name:	Mixing Pump (blender)	Brand:	DONJOY
Highlight:	SS316L Blender , Control Box Blender

HHQ-50 Blender Mixing High Purity Pumps for fluid and transfer

Specifications

Product Name:	HHQ-50, SS316L Blender, Mixing pump for mxing the powder and fluid and transfer
Material:	SS304 / SS316L / 1.4301 / 1.4404
Seal Material:	EPDM (Standard, FDA approval)
Max. Flow:	60m3/h / 264 GPM
Max. hopper volume:	65L
Max solid suction volume:	9000kg/h
Mechanical seal:	SIC/SiC/EPDM(Standard)
Optional:	Cleanable and double mechanical seal with cooling system
Connecting:	Pneumatic valve
Motor power:	1.1kw, 1.5kw, 2.2kw
Sealing option:	Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:	110V, 220V, 380V
Motor:	ABB 50hz/60hz
Surface treatment:	Inner polished and Sandblast outside
Availably connection:	Tri-Clamp, Thread
Availably standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electic
Availably options:	Pneumatic actuator valve, 60°, hopper, sreen in the mixing chamber, drainage, sensor, vibrator
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or customerized. Or as per the request of customers
Delivery details:	Usually within 20 days after receiving T/T down payment

Description Option
1. Pneumatic valve
2. High and low level sensors
3. vibrator: pneumaticaor electric

Application
1 .preparation of sugar syrup, sorbitol, glucose,lctose and derivatives
2. reconstitution of powdered milk
3. dissolution of liquid and /or sugar in milk
4. reconstitution of powdered whey
5. preparation of flour and starch slurries
6. preparation of brines
7. pre-mixtures of yogurt and other milk-based desserts
8. dissolution of bentoites for wine filtering
9. dissolution of casein and caseinates in the cheese-making industry
10. Preparation of pesticiddes and fetlilizer.

Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
