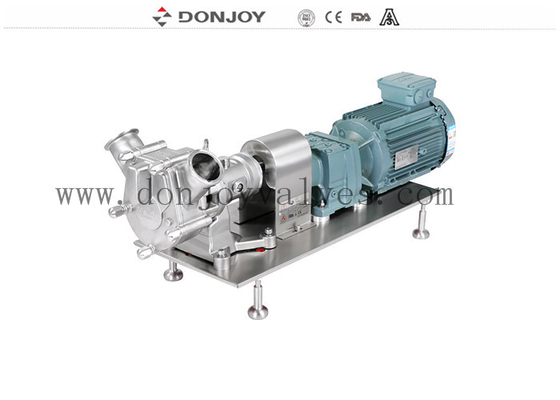

Donjoy PZX Sine pump with fixed speed motor

Donjoy PZX Sine pump with fixed speed motor

Place of Origin:

China

Brand Name:

DONJOY

Model Number:

PZX

Contact Us

Request A Quote
Product Details
Motor Frequency:
50/60 Hz
Drive Type:
Gear
Motor Power:
1.1-30 KW
Materials Of Construction:
316L SS, PTFE, PFA, PVDF
Motor Speed:
1700-3000 RPM
Motor Voltage:
220V-460 V
Flow Rate:
93.6T/H
Product Name:
High Purity Pumps
Payment & Shipping Terms
Product Description

Donjoy PZX Sine pump with fixed speed motor

PZX Sine Pump

DONJOY Sine Pump- Liquid Handling Equipment with bidirectional reversible operation, food-grade stainless steel design, gentle pumping for transferring high and low-viscosity media, no damage and no pulse during transfer, clean, efficient, durable, safe, and low-cost solutions.

Technical advantages

●Ultra-low shear conveying to effectively ensure media integrity
●High suction capacity, inlet negative pressure can reach -0.85bar
●Low-pulse conveying can effectively prevent pipeline vibration,make the medium convey smoothly and quickly, and also increase the measurement accuracy
●The conveying process is gentle, and it is not easy to generate air bubbles
●Bidirectional operation
●Simple and fast maintenance
●All medium contacting parts comply with FDA and EC1935 standards
●Wide range of medium viscosity, 1cp to 8,000,000cps

Technical Specifications

Max flow: 93m3/h
Max pressure: 15 bar
Max Temperature: 130℃
Material: 1.4404/SS316L/2205
Certification: 3-A-02-12, FDA177.2600,177.1550, MD/06/42/EC



Sine pump design

sinusoidal pump is a type of pump featuring a sine wave-shaped rotor that creates four moving chambers, which gently convey the duty fluid from the inlet port to the higher pressure discharge port. A sine pump is a new type of positive displacement pump, which has the characteristics of a more compact structure, higher conveying efficiency, and wider viscosity range of applicable conveying medium. Can be widely used in food, beverage, dairy, chemical, pharmaceutical and other industries.

DONJOY PZX Sine Pump Configuration

DONJOY provide the below various configurations.

Sine Pump Beverage industry pump with Reducer Gearbox & Motor

1) Variable–frequency motor, speed could be adjusted by frequency converter(VFD), the adjustable range is big 10-90hz. Must need an additional frequency converter, otherwise, the speed couldn’t be adjusted.
2) Fixed speed reducer and motor, it also can be adjusted by frequency converter(VFD), the default output speed is around 300rpm, but the adjustable range is small, 30-60hz.

Sinusoidal pump

3.) Mechanical stepless speed variator, it no need additional VFD to control speed.

Sine Pump 1

4). Sine pump direct with motor

Sine Pump direct with motor

5). Sine pump direct with mobile cart

Sine Pump direct with mobile cart

6). PZX Sine Pump with Control Box and Mobile Cart

Sine Pump direct with mobile cart and control box

PZX Sine Pump Curve



PZX sine pump curve

PZX sine pump curve22



PZX sine pump selection table

PZX sine pump selection table

Sine pump optional interface orientation

Sine pump optional interface orientation



With "★" completely self-draining, the user can freely decide which connection method to use according to the working conditions, without the need for factory definition

FAQ

Q1: What is DONJOY High Purity Pumps?
A1: DONJOY High Purity Pumps is a kind of PZX model pump from China. It is designed for high purity liquid transfer and handling.
Q2: What are the features of DONJOY High Purity Pumps?
A2: DONJOY High Purity Pumps are made of high quality materials and equipped with advanced technologies. It is designed for long-term operation with high efficiency and low noise.
Q3: How is DONJOY High Purity Pumps different from other pumps?
A3: DONJOY High Purity Pumps are designed with special materials for high purity liquid transfer and handling. It has a unique sealing structure and advanced technologies to ensure long-term operation with high efficiency and low noise.
Q4: What applications can DONJOY High Purity Pumps be used for?
A4: DONJOY High Purity Pumps are suitable for a wide range of applications including chemical industry, pharmaceutical industry, food industry and other high-purity liquid transfer and handling.
Q5: What after-sales service does DONJOY offer?
A5: DONJOY provides timely and professional after-sales service, including technical support, repair and maintenance, and spare parts supply.
