Pneumatic Mixproof Tank Bottom Valve with Intelligent Positioner EPDM Gasket for Precise Control

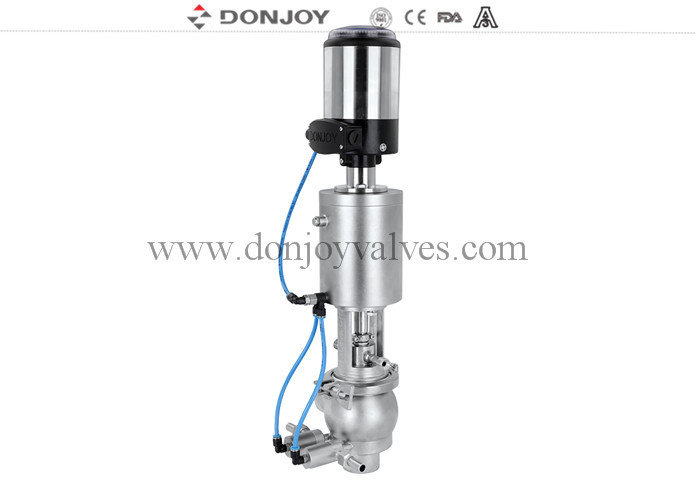

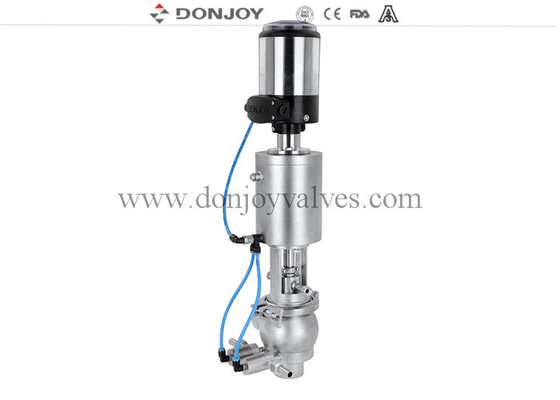

Large Image : Pneumatic Mixproof Tank Bottom Valve with Intelligent Positioner EPDM Gasket for Precise Control

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	carton box
Payment Terms:	T/T,LC,Credit Card

Contact Now

Detailed Product Description

Product Name:	Mixproof Tank Bottom Valve	Size:	DN40 - DN100 Or 1.5" To 4"
Operation:	Pneumatic With Intelligent Positioner	Materail:	SS316L
Compressed Air Pressure:	5.5bar-7bar	Air Supply Connection:	R1/8''(BSP)
Gasket:	EPDM / HNBR / VITON	Feature:	Precise Control
Highlight:	Donjoy tank bottom valve , Mixproof tank bottom valve , Pneumatic Mixproof tank bottom valve

Donjoy Pneumatic Mixproof Tank Bottom Valve

Technical Specifications

Size	DN40-DN100, 1.5" - 4"
Working Temperature	14°F to 266°F (-10 to 130°C), 284°F (140°C) for short time sterilization
Max. Working Pressure	145psi (10bar)
Min. Working Pressure	Absolute vacuum
Compressed Air Pressure	5.5 bar to 7 bar
Parts in Contact with Medium	AISI 316L
Other Stainless Steel Parts	AISI 304
Internal Surface Finish	Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best
Seat Material	EPDM, FDA177.2600 (Default) FPM (Viton), FDA177.2600 (Option)

Design Features

Default with normally closed pneumatic actuator
Compact and robust design, forged spherical bodies
Pressure balanced design
One-piece Body & Clamped Body options available
Wide selection of different body combinations
Easy disassembly by releasing the clamp
Cleaning/Sterilization Parts available as options
100% hydraulic tested / 100% inspected

Operations

Actuators: Stainless steel actuator

Units for intelligent control and indication:

C-top control
IL-top control (Positioner)
Electric connection
AS-I bus connection

Connection Options

Clamped, welded, threaded, flanged, etc.

Packaging Details

Bubble pack for each valve. Outside packing is by carton or plywood case.

Operating Principles

Lift type mixing proof valve is remotely operated by compressed air. It is normally closed before running.

The mixing proof valve is constructed with two independent plugs, which will form a leakage chamber to atmosphere under normal working status. When occasional failure causes leakage happen, medium will flow into the chamber and be discharged at the outlet port.

The leakage chamber is closed when the valve is operating, the medium can flow through one pipeline to another. This valve can be clean in place. Many options of CIP and SIP combination are available to users.

Clean system can clean the upper, lower stem and leakage chamber, which ensure the valve to be high hygienic. Effectively cleaning system makes the fluid that special for (CIP) clean in place directly wash all the inside valve body, it takes shorter time than common cleaning system.

Another beneficial of the high cleaning system is that the lift type mixing proof valve can be applied to aseptic processing. If user's steam into CIP pipeline, the system will constitute a shield that can isolate air.
