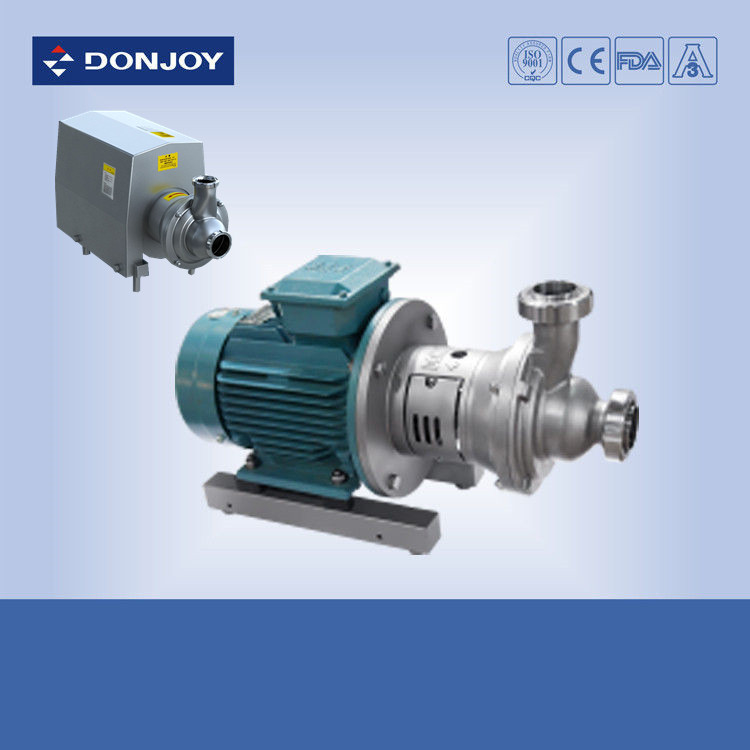

CIP-10 SS304 Sanitary CIP pump , self - priming pump for CIP recover

CIP-10 SS304 Sanitary CIP pump , self - priming pump for CIP recover

lobe rotary pump

high pressure pumps

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

CIP-10

Contact Us

Request A Quote
Product Details
Product:
Stainless Steel CIP Pump
Type:
CIP - 10
Selection:
10T / 24M / 5.5KW; 15T / 18M / 5.5KW / 20T / 11M / 5.5KW
Mechanical:
Single Seal
Inlet:
2.5" Thread / Clamp / Ferrule
Outlet:
2.5" Thread / Clamp / Ferrule
Structure:
Be Covered
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Wooden box
Delivery Time
15-40 working days
Payment Terms
T/T, LC, Credit Card
Supply Ability
10 sets 30 working days
Product Description

CIP-10 SS304 Sanitary CIP pump , self - priming pump for CIP recover​

Description Options
1. Mechanical seal: C/SIC/EPDM
2. Gasket: viton/NBR
3. Connection: Thread, Clamp, Flange ( DIN, SMS, RJT, IDF )



Specifications

Product Name:

CIP Pump

Body Material:

SS304 / SS316L / 1.4301 / 1.4404

Seal Material:

EPDM (Standard, FDA approval) FPM(Viton) and NBR

Max. Flow:

35 m3/h

Max. Speed:

3600 min-1

Max. rev: 1750Min - 1
Max. suction height 8m / 22 ft

Max. Head:

42H(m)

Max. Working Pressure:

4.2Bar

Max. Working
Temperature:

120 °C

Mechanical seal:

C /SIC /EPDM

Motor:

ABB / domestic

Motor Frequency:

50HZ, 60HZ

Availably connection:

Tri-Clamp, Thread, Flange

Availably standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Low discharge option :

Low discharge / diaphragm valve / ball valve / butterfly valve

Application scope:

Dairy,food, beverage, pharmacy, cosmetic etc



Applications
1. This pump is a sanitary lateral design self priming pump,it's suitable for food processing, phamacy and chemical industry.
2. It is specially designed for pumping mterials containing air or gas, and it can also be used for negative sution with prior priming as well as with filtration equipments
3. It can be sued for wine, oil,syrups, volatile products such as alcohol, acetone and other solvents or with products at temperatures close to boiling point.However, the main use of this pump is for cip recover.

Operation Principles
1. The impeller is housed beteween the inlet body and the venturicasing and it rotates in connjunction with the pup shaft
2. The rotation of the impeller and arrangement of the side channel,creates a negative pressure inside the inlet body
3. Which generates the suction force of the pump. At the same time, the fluid recives energy in the form of kinetic energy and pressure eneygy, and this impels it through the impeller casing.

Design and features
1. Motor cover manufactured with Cold-formed plate
2. stainless steel investment casting inlet body and impeller
3. Mechanical seal prevents contacting between the spring and the pumped fluid.
4. Stainless steel support
5. Surface finished: Sandblast



Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
