Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
CIP-10
Contact Us

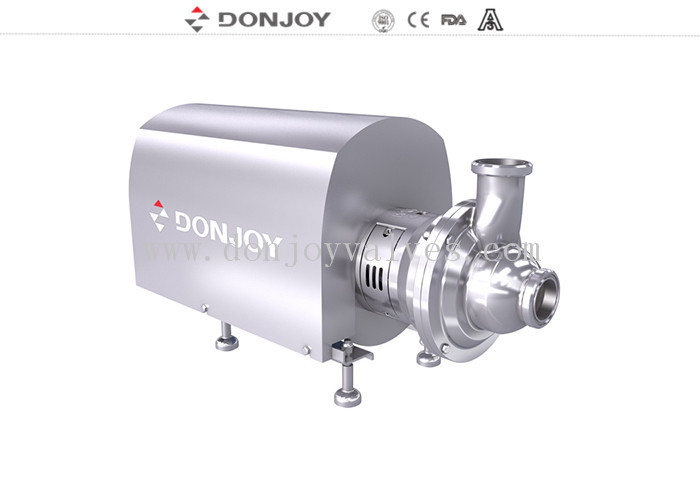

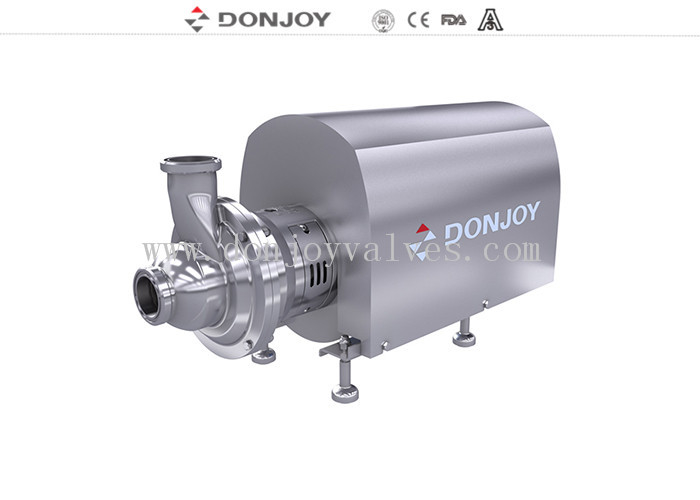

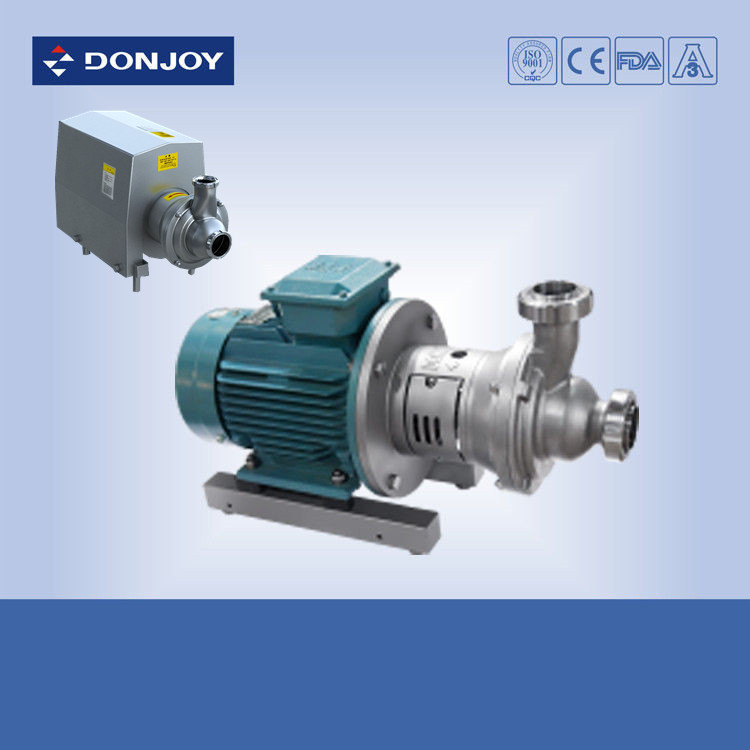

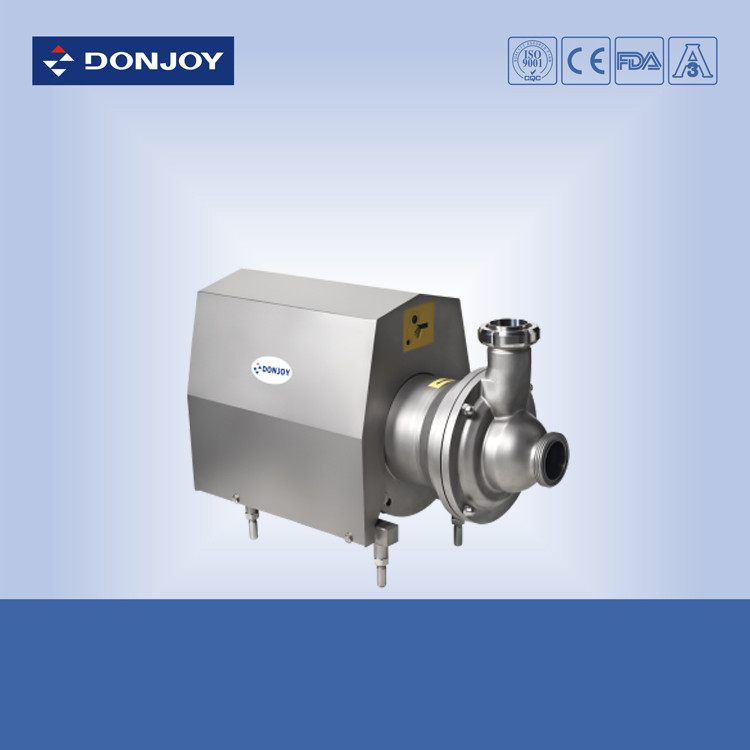

DONJOY Hygienic CIP Self Priming Liquid Ring Pump/ High purity CIP Pumps
Description Options
1. Mechanical seal: C/SIC/EPDM
2. Gasket: viton/NBR
3. Connection: Thread, Clamp, Flange ( DIN, SMS, RJT, IDF )
Specifications
|
Product Name: |
CIP Pump |
|
Body Material: |
SS304 / SS316L / 1.4301 / 1.4404 |
|
Seal Material: |
EPDM (Standard, FDA approval) FPM(Viton) and NBR |
|
Max. Flow: |
35 m3/h |
|
Max. Speed: |
3600 min-1 |
| Max. rev: | 1750Min - 1 |
| Max. suction height | 8m / 22 ft |
|
Max. Head: |
42H(m) |
|
Max. Working Pressure: |
4.2Bar |
|
Max. Working |
120 °C |
|
Mechanical seal: |
C /SIC /EPDM |
|
Motor: |
ABB / domestic |
|
Motor Frequency: |
50HZ, 60HZ |
|
Availably connection: |
Tri-Clamp, Thread, Flange |
|
Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Electic |
|
Low discharge option : |
Low discharge / diaphragm valve / ball valve / butterfly valve |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic etc |
Applications
1. This pump is a sanitary lateral design self priming pump,it's suitable for food processing, phamacy and chemical industry.
2. It is specially designed for pumping mterials containing air or gas, and it can also be used for negative sution with prior priming as well as with filtration equipments
3. It can be sued for wine, oil,syrups, volatile products such as alcohol, and other solvents or with products at temperatures close to boiling point.However, the main use of this pump is for cip recover.
Operation Principles
1. The impeller is housed beteween the inlet body and the venturicasing and it rotates in connjunction with the pup shaft
2. The rotation of the impeller and arrangement of the side channel,creates a negative pressure inside the inlet body
3. Which generates the suction force of the pump. At the same time, the fluid recives energy in the form of kinetic energy and pressure eneygy, and this impels it through the impeller casing.
Design and features
1. Motor cover manufactured with Cold-formed plate
2. stainless steel investment casting inlet body and impeller
3. Mechanical seal prevents contacting between the spring and the pumped fluid.
4. Stainless steel support
5. Surface finished: Sandblast
Connection :
Selection table
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
