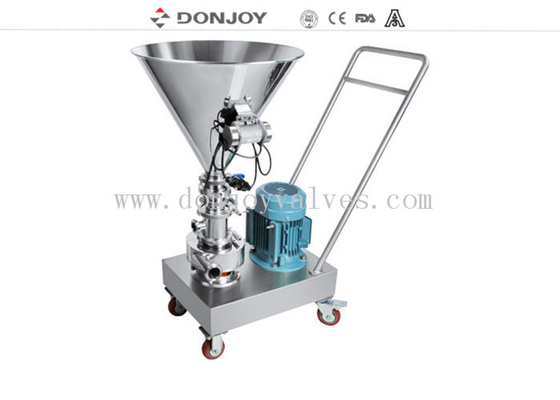

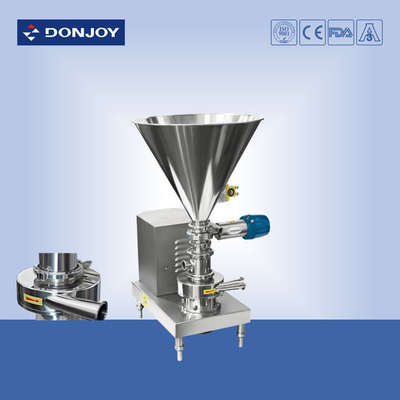

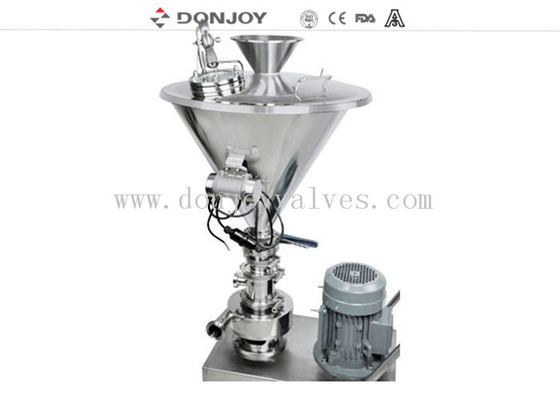

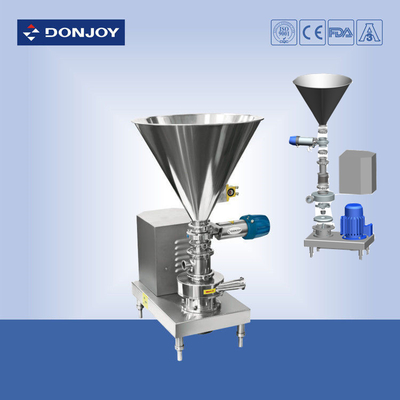

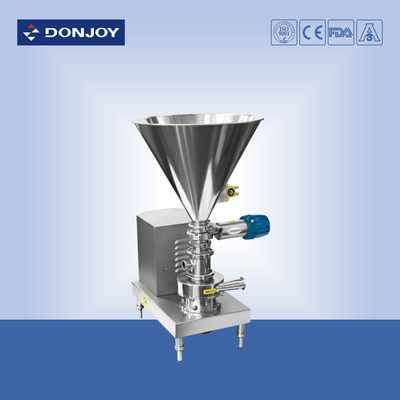

HHQ-20 Blender Mixing High Purity Pumps for fluid and transfer

HHQ-20 Blender Mixing High Purity Pumps for fluid and transfer

    • HHQ-20 Blender Mixing High Purity Pumps for fluid and transfer
    • HHQ-20 Blender Mixing High Purity Pumps for fluid and transfer
    • HHQ-20 Blender Mixing High Purity Pumps for fluid and transfer
    • HHQ-20 Blender Mixing High Purity Pumps for fluid and transfer
    • HHQ-20 Blender Mixing High Purity Pumps for fluid and transfer
    • HHQ-20 Blender Mixing High Purity Pumps for fluid and transfer
  • HHQ-20 Blender Mixing High Purity Pumps for fluid and transfer

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: HHQ-20

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Materials: Stainless Steel 304 Flow: 20T/4.0KW
    Mechanical: Single Seal Liquid Inlet: 1.5" Ferrule
    Hopper: 45L Motor: 380V/50HZ
    Item Name: Mixing Pump (blender)
    High Light:

    lobe rotary pump

    ,

    high pressure pumps

    HHQ-20 Blender Mixing High Purity Pumps for fluid and transfer


    Specifications

    Product Name:

    HHQ-20, SS316L Blender, Mixing pump for mxing the powder and fluid and transfer

    Material:

    SS304 / SS316L / 1.4301 / 1.4404

    Seal Material:

    EPDM (Standard, FDA approval)


    Max. Flow:

    60m3/h / 264 GPM

    Max. hopper volume:

    65L

    Max solid suction volume:

    9000kg/h

    Mechanical seal:

    SIC/SiC/EPDM(Standard)

    Optional: Cleanable and double mechanical seal with cooling system
    Connecting: Pneumatic valve

    Motor power:

    1.1kw, 1.5kw, 2.2kw

    Sealing option:

    Sanitary single mechanical seal/Double mechanical seal with cooling system

    Voltage:

    110V, 220V, 380V

    Motor:

    ABB 50hz/60hz

    Surface treatment:

    Inner polished and Sandblast outside

    Availably connection:

    Tri-Clamp, Thread

    Availably standard:

    DIN, SMS, 3A, RJT, ISO/IDF

    Operated:

    Electic

    Availably options:

    Pneumatic actuator valve, 60°, hopper, sreen in the mixing chamber, drainage, sensor, vibrator

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc

    Packaging Details:

    Plywood case or customerized. Or as per the request of customers

    Delivery details:

    Usually within 20 days after receiving T/T down payment


     Description
     Option
     1. Pneumatic valve
     2. High and low level sensors
     3. vibrator: pneumaticaor electric


    Application
     1.preparation of sugar syrup, sorbitol, glucose,lctose and derivatives
     2. reconstitution of powdered milk
     3. dissolution of coco and /or sugar in milk
     4. reconstitution of powdered whey
     5.preparation of flour and starch slurries
     6. preparation of brines
     7.pre-mixtures of yogurt and other milk-based desserts
     8.dissolution of bentoites for wine filtering
     9.dissolution of casein and caseinates in the cheese-making industry
     10.Preparation of pesticiddes and fetlilizer



    Competitive Advantage
    “DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”


    HHQ-20 Blender Mixing High Purity Pumps for fluid and transfer 0

    HHQ-20 Blender Mixing High Purity Pumps for fluid and transfer 1

    Tag : Mixing pump, Sanitary pump, High purity Pump
