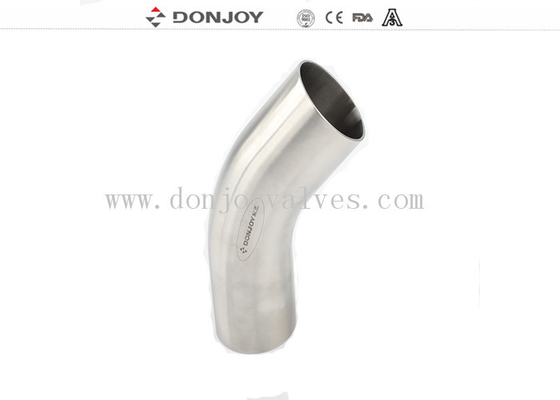

2” BPE sanitary 45 degree welded Bend mirror Polished for pharmacy
Quick Detial
45 Degree Elbow, Bend.
Polished: Ra≤0.8um,Ra≤0.5um
Specification
Product Name: |
2” BPE sanitary 45 degree welded Bend mirror Polished for pharmacy |
Material: |
AISI316L |
Size: |
1/2"-"8" |
Finish: |
mirror polish, stain finishing |
Connection: |
weld ends |
Standard: |
BPE,3A,SMS,DIN,ISO,ISO1127 |
Certificate: |
CE, ISO9001/2008, 3A |
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic, etc |
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Product Drawing
Available in Mechanical polishing and electropolishing finish.
Mechanical polishing with 4 grades from SF0 to SF3, default SF 1 finish is RA 20= 0.51 μm
electropolishing finish with 3 grades from SF4- SF6, default SF4 finish is RA 15=0.38 μm
Finish Code | Product Contact Surface (Max Ra)* | Product Contact Surface Finish Treatment (ID) | Non-Product Contact Surface (Max Ra) | Non-Product Contact Surface Finish Treatment (OD) |
---|---|---|---|---|
-PL | 20 µ-inch(0.51 µm) | Mechanical Polish | 32 µ-inch(0.81 µm) | Mechanical Polish/As drawn |
-PM | 15 µ-inch(0.38 µm) | Electropolished | 32 µ-inch(0.81 µm) | Mechanical Polish/As drawn |
Donjoy Technology as an ASME BPE Stainless Steel Tubing and Fittings manufacturer in China, manufacture sanitary pipe fittings, sanitary valve, pump for more than 28 years. Meet USA 3-A, ASME BPE, FDA, EU CE standad.
Element | 316L (wt%) |
---|---|
Carbon (max) | 0.035 |
Manganese (max) | 2.00 |
Phosphorus (max) | 0.040 |
Sulfur | 0.005 – 0.017 |
Silicon (max) | 0.75 |
Nickel | 10.0-15.0 |
Chromium | 16.0-18.0 |
Molybdenum | 2.0-3.0 |
Size OD | Wall Thickness | Outside Diameter Tolerance | Length Tolerance | Wall Thickness Tolerance | ||||
---|---|---|---|---|---|---|---|---|
(in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (%) |
½ | 12.7 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
¾ | 19.1 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
1 | 25.4 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
1½ | 38.1 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
2 | 50.8 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
2½ | 63.5 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
3 | 76.2 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
4 | 101.6 | 0.083 | 2.11 | +/-0.015 | +/-0.38 | +⅛, -0 | +3.18, -0 | +/-10.0% |
6 | 152.4 | 0.109 | 2.77 | +/-0.030 | +/-0.76 | +1, -0 | +25.4, -0 | +/-10.0% |
Material Test Reports (MTRs) are available in each shipment. A highly trained DONJOY staff member inspects each part before shipment, ensuring that it meets the ASME BPE fittings specifications.
Sanitary fitings, BPE fittings, Donjoy fittings
