1/2" - 6” 3A Stainless Steel Sanitary Fittings 180 degree welded Bend Matt Polished

1/2" - 6” 3A Stainless Steel Sanitary Fittings 180 degree welded Bend Matt Polished

Heavy Duty Clamp

tri clover clamp

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

40016

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
SIZE:
1/2"-6"
Model:
40016
Thickness:
1.2mm, 1.5mm,1.65mm,2mm,2.1mm
Staandard:
3A,ISO, SMS,BPE, ISO1127,DIN, ASME/ANSIB16.9
Materials:
SS304/1.4301, SS316L/1.4404
Payment & Shipping Terms
Minimum Order Quantity
30PCS
Packaging Details
Carton, Wooden Case
Delivery Time
10-30 working days
Payment Terms
T/T,L/C, Credit Card
Product Description

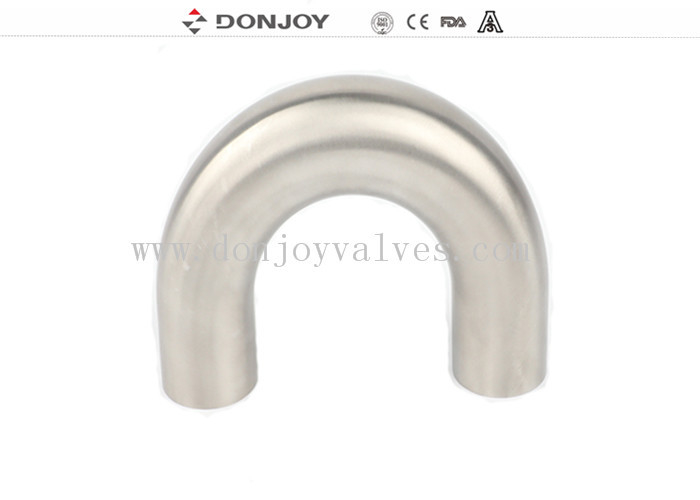

1/2” - 6” 3A Stainless Steel Sanitary Fittings 180 degree welded Bend Matt Polished



Quick Detail

Stainless steel 180 Degree Elbow(Bend)

Standard: 3A,BS4852,AS1528, DN1852,DS,ISO,ISO1127,SMS,IDF,BPE



Specification

Product Name:

1/2”-6” 3A sanitary 180 degree welded Bend  Matt Polished for food grade

Material:

AISI304, AISI316L

Size:

1/2"-"6"

Finish:

mirror polish, stain finish,no polish

Connection:

weld ends

Standard:

Standard: 3A,BS4852,AS1528, DN1852,DS,ISO,ISO1127,SMS,IDF,BPE

Certificate:

CE, ISO9001/2008, 3A

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic, etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request of customers



Competitive Advantage

“DONJOY is the only company that pass nine series of products by American 3A certification

organization in Asian sanitary pumps and valves field.”



Application

Applied to the industry of milk, wine, beverage, cheese, food, sauce, edible oil, brewage, meat

processing, preserved fruit, cosmetic, biology, chemical industry, pharmacy and so on.



Question And Answer

Q1. Where is your factory?

Our factory located in Wenzhou,China.



Q2. What material do you have?

SS304//SS316



Q3. Can you provide sample for us?

Yes, free sample is available.Welcome your contact.



Q4. How about your delivery time ?

For small order within 7 days. For the mass order depends on your order.



product drawing

1/2" - 6” 3A  Stainless Steel Sanitary Fittings 180 degree welded Bend  Matt Polished 0

Size L(mm) H(mm) D(mm) Thickness(mm)
1/2" 114.3 76.2 12.7 1.65
3/4" 114.3 76.2 19.1 1.65
1" 76.2 68.1 25.4 1.65
1.25" 95.3 77.6 31.8 1.65
1.5" 114.3 87.2 38.1 1.65
2" 152.4 106.2 50.8 1.65
2.5" 190.5 125.3 63.5 1.65
3" 228.6 144.3 76.2 1.65
4" 304.8 182.4 101.6 2.1
5" 381.0 230.5 127.0 2.1
6" 457.2 268.6 152.4 2.8

1/2" - 6” 3A  Stainless Steel Sanitary Fittings 180 degree welded Bend  Matt Polished 1

1/2" - 6” 3A  Stainless Steel Sanitary Fittings 180 degree welded Bend  Matt Polished 2
