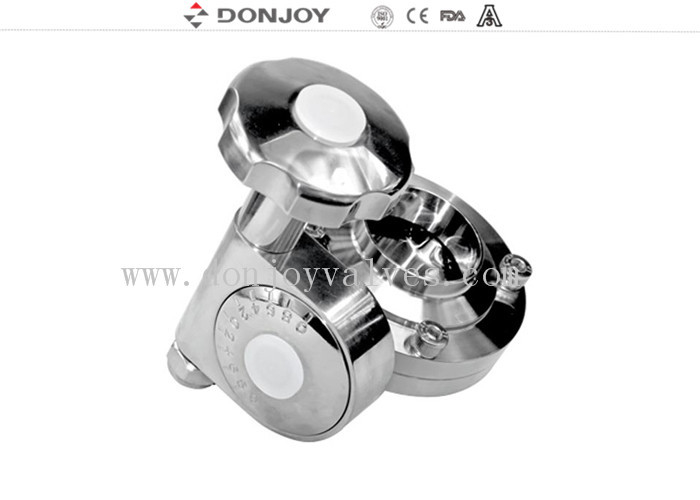

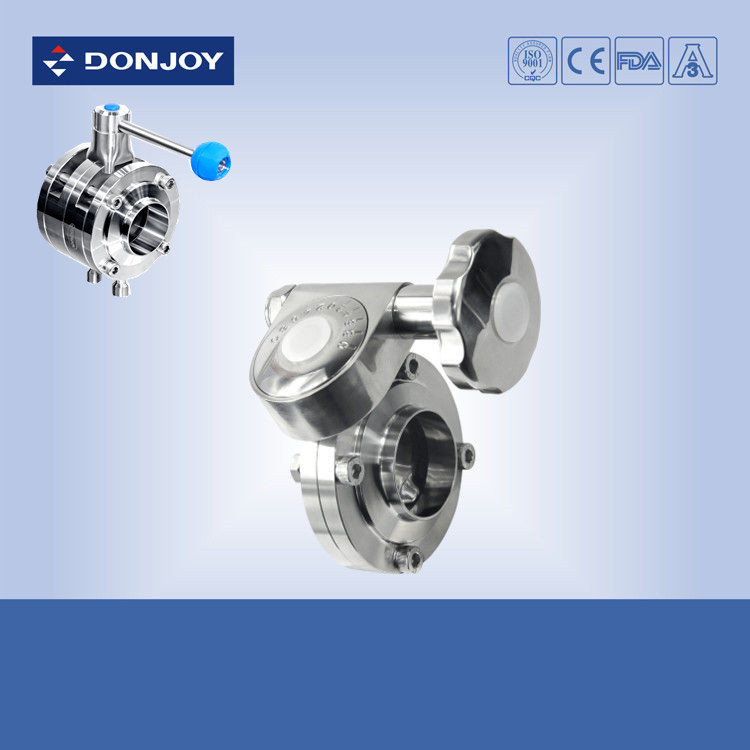

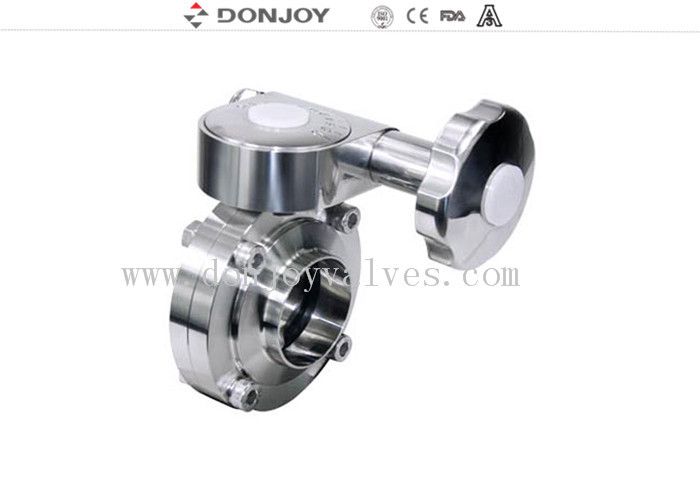

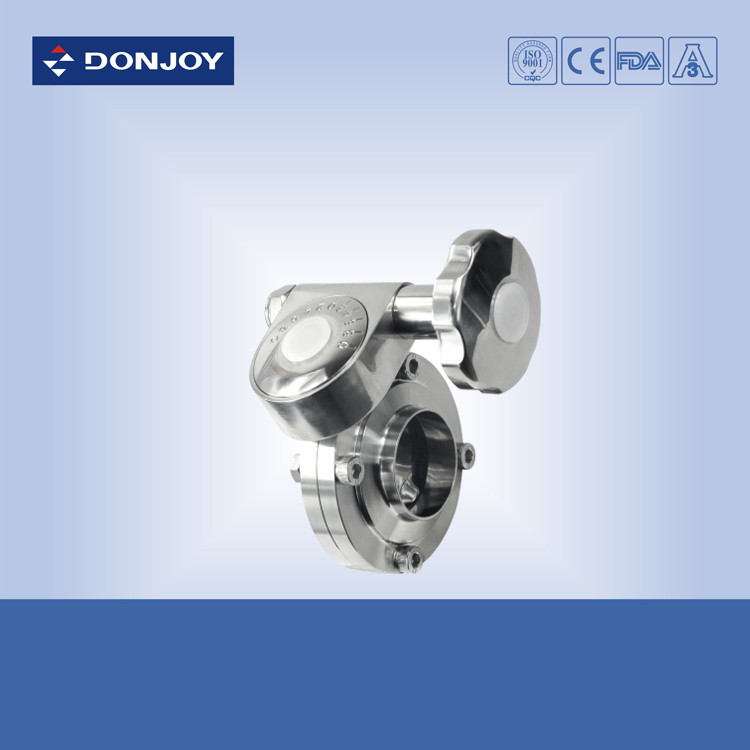

Donjoy Stianless Steel Manual fine tuning sanitary butterfly valves with Wled Connection

Donjoy Stianless Steel Manual fine tuning sanitary butterfly valves with Wled Connection

stainless butterfly valves

pneumatic butterfly valve

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VSB05

Contact Us

Request A Quote
Product Details
Product Name:
Butterfly Valve With Fine Tuning Handle
Materials:
304 / 316L
Size:
1'' - 6'', DN25 - DN150
Operation:
Manual Operation Mode
Connection:
Welding
Gasket:
EPDM + PTFE
Structure:
With Hand Wheel
Feature:
Fine Tuning, More Precise
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

Stainless steel 304 / 316L manual fine tuning sanitary butterfly valve with hand wheel for flow regulation



Specifications

Product Name:

Stainless steel 304 / 316L manual fine tuning sanitary butterfly valve with hand wheel for flow regulation

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10Bar

Max.Working Temperature:

120 degree C

Availably  size:

1''-6'', DN25-DN150

Availably connection:

Clamp/welding/thread/special connection

Availably standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Manual,Pneumatic, Electric

Handle application:

Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Adjusting: Tuning according to scale
Advantage: Could be adjusted by your requirement



Description

The butterfly valve of fine tuning is euipped with all the function and features of standard butterfly valve;

The type butterfly valve is equipped with flexible flow adjusting device which could do better adjusting on flow;

 The position of valve could be feedbacked by dial gauge.



Connection

Clamped, welded and threaded etc.



Packaging Details

Bubble pack for each valve.

Outside packing are carton or plywood cases.

Or as per the request of customers.



Delivery details

Usually within 20 days after receiving T/T down payment.
