200mm Round Tank Manhole Cover Mirror / Matt Polished Without Pressure

200mm Round Tank Manhole Cover Mirror / Matt Polished Without Pressure

    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.ERK211

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD54-USD364/PC
    Packaging Details: Carton, Wooden Case
    Delivery Time: 5-8 Working Days
    Payment Terms: T/T,L/C, Credit Card
    Supply Ability: 100PCS/Day
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 200mm
    Pressure: Without Pressure Connection: Weled, Flange
    Polished: Mirror, Matt Type: Round
    High Light:

    recessed manhole covers

    ,

    heavy duty manhole covers

    200mm Round Tank Manhole Cover Mirror / Matt Polished Without Pressure

    Tag:
    Stainless steel vesels Manhole Cover.
    Tank top Cover, Tank side Cover

    Quick Detail

    Name: Tank Manhole Cover, Stainless Steel
    Manway

    Height: 100mm,150mm, 120mm or customer requirement

    Type: Round without Pressure

    Polished: Mirror, Mattr,
    Ra≤0.8μm,Ra≤0.5μm,320Grit, 180Grit

    Size:φ150,200,250,300,350,400,450,500,600 etc

    Place of Origin:Wenzhou,China


    Thinckess: Customized or standard
    Materials: 1.4301/1.4404,SUS304/SUS316L,
    OEM&ODM service: Avaliable
    Handle: Plastic, Stainless Steel


    Application:
    Non-pressure type manhole cover is widely used in food, wine-producing, beverage, and pharmacy industries and so on. Apply to all kinds of atmospheric container or tank to prevent the leakage. And it is Installation on the top of the vessel, tank etc.


    Specification

    Product Name:

    200mm Round  manhole Cover without
    pressure,Mayway with 150mm height

    Material:

    AISI304, AISI316L

    Size:

    200,220,300,350,400,430,450,500,600,800

    Finish:

    Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

    Connection:

    Welded, Flange

    Standard:

    DIN,3A,SMS,ISO

    Certificate:

    CE, ISO9001/2008, 3A

    Application scope:

    Dairy, food, beer, beverage, pharmacy,
    cosmetic,Oil,Waste water etc

    Packaging Details:

    Shrink wrapped - carton - pallet . Or as per the request
    of customers


    Working Principle:
    Non-pressure type manhole cover is joined together to the tank by the hinge, it also can let non-pressure type manhole cover free open and close tightness at the range of 120 degree by the handle, so it can be easy for the serviceman to check and to operate.


    Design standard:
    The difference between non-pressure and pressure type manhole cover is the former can only use under normal pressure, so it is generally have only one fixed hand wheel device, but the sealing is good enough.


    Product drawings
    200mm Round Tank Manhole Cover Mirror / Matt Polished Without Pressure 0

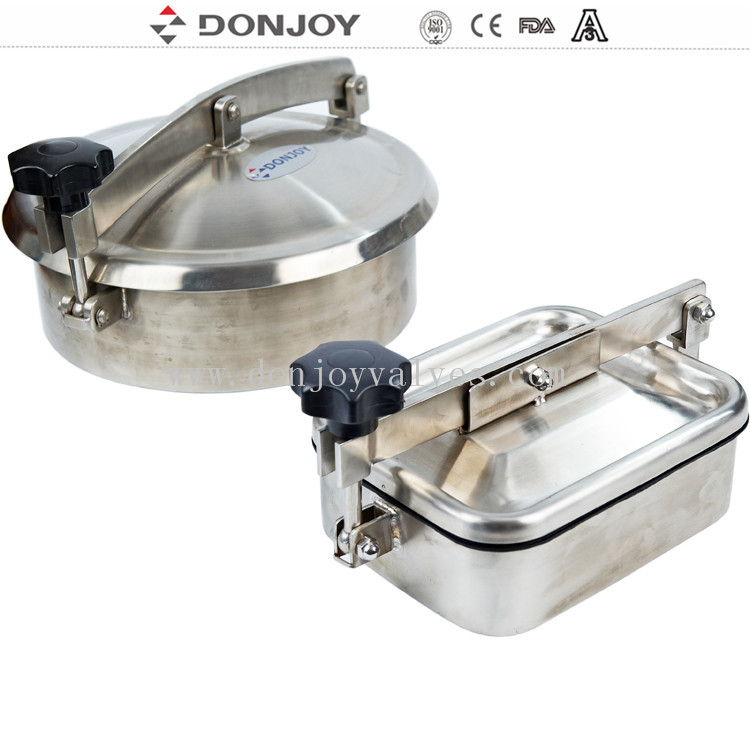

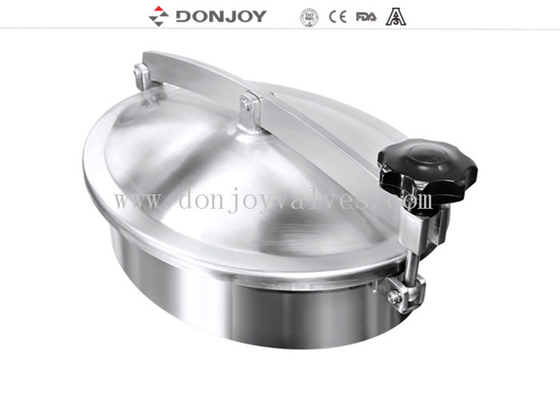

    Product display

    200mm Round Tank Manhole Cover Mirror / Matt Polished Without Pressure 1
