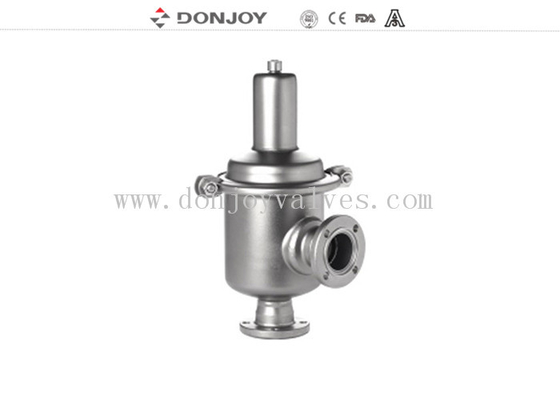

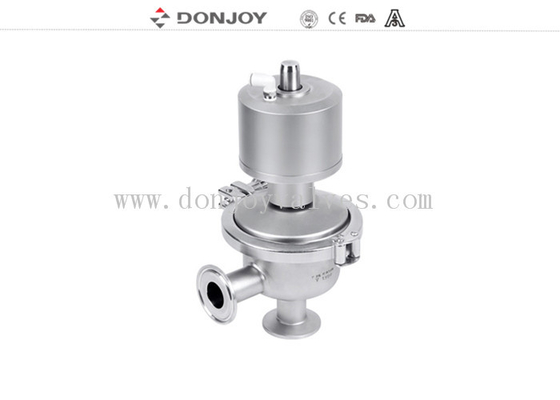

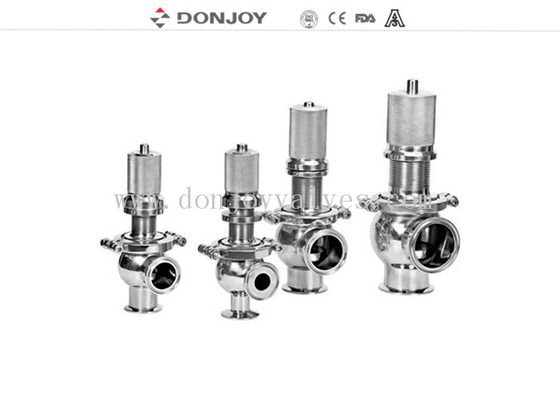

Sanitary pressure safety valve 180 degree temperature , air release valve

Sanitary pressure safety valve 180 degree temperature , air release valve

  • Sanitary pressure safety valve 180 degree temperature , air release valve
  • Sanitary pressure safety valve 180 degree temperature , air release valve
  • Sanitary pressure safety valve 180 degree temperature , air release valve
Sanitary pressure safety valve 180 degree temperature , air release valve
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: No.VAQ100S1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD10-100/set
Packaging Details: Carton, Wooden Case
Payment Terms: T/T,L/C, Credit Card
Supply Ability: 10000set /pcs
Contact Now
Detailed Product Description
Brand: DONJOY SIZE: 1"-3"
Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread,
Polished: Mirror, Matte Inlet Pressure: 8 Bar
Temperature: Highest 180 Degree Media: Steam,liquid,gas
High Light:

pressure regulating valve

,

air release valve

Sanitary pressure safety valve 180 degree temperature , air release valve


Quick Detail
Pressure Safety Valve, Over flow Valve
Type: Manula, Pnuematic



Specificatio

Product Name:

SS304 and SS316Lpressure safety valve, over flow valve use in the pipe line

Valve Body Material:

SS304 or SS316L

Seal Material:

EPDM,NBR,FPM

Max.Working Pressure:

8Bar 116PSI

Max. Working Temperature:

120 degree C

Availably size:

DN25-DN80 or 1” - 3"

Availably connection:

Flange,Clamp,Welded

Availably standard:

DIN,INCH,IDF,3A,SMS

Operate:

Pneumatic ,Maual

Certificate:

FDA,CE



Applications:
1. Safety valve is used to protecting pipe,pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipments break down due to pressure
3. With sanitary design stainless steel, the valvei s best choicefor pretection equipments in diary ,food, beverage, pharmacy and fine chemical industries.


Operating Principle:
1. Through the spring to adjustable the pressure.
2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.



Drawing

Sanitary pressure safety valve 180 degree temperature , air release valve 0
