2" SS316Lmanual pressure safety valve , Relief Valve with Weld Connection

2" SS316Lmanual pressure safety valve , Relief Valve with Weld Connection

pressure regulating valve

air release valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

No.VAQ100S1

Contact Us

Request A Quote
Product Details
Name:
Pressure Safety Valve
SIZE:
1"-3"
Stanadard:
DIN,3A,SMS,ISO
Connection:
Welded, Clamped,Thread,
Polished:
Mirror, Matte
Inlet Pressure:
8 Bar
Outlet Pressure:
0.3-5 Bar
KV Value:
4-70 M3/h
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD10-100/set
Packaging Details
Carton, Wooden Case
Payment Terms
T/T,L/C, Credit Card
Product Description

2" SS316Lmanual pressure safety valve , Relief Valve with Weld Connection


Quick Detail
Pressure Safety Valve, Over flow Valve
Type: Manula, Pnuematic



Specification

Product Name:

2" SS316Lmanual pressure safety valve, Relief Valve with

Weld Connection

Valve Body Material:

SS304 or SS316L

Seal Material:

EPDM,NBR,FPM

Max.Working Pressure:

8Bar 116PSI

Max. Working Temperature:

120 degree C

Availably size:

DN25-DN80 or 1” - 3"

Availably connection:

Flange,Clamp,Welded

Availably standard:

DIN,INCH,IDF,3A,SMS

Operate:

Pneumatic ,Maual

Certificate:

FDA,CE



Applications:
1. Safety valve is used to protecting pipe,pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipments break down due to pressure
3. With sanitary design stainless steel, the valvei s best choicefor pretection equipments in diary ,food, beverage, pharmacy and fine chemical industries.



Technical Specifications

◆Size:1"-4",DN25-DN100
◆KV Value:8.5-180m3/h
◆Max. temperature:-20℃到150℃(depend on seal material)
◆Set pressure:(0-3bar/0-6bar/6-10bar)
◆Material:304/316L
◆Certification:
safety valve manufacturing license for special

Operating Principle:
1. Through the spring to adjustable the pressure.
2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.



Drawing of safety valve

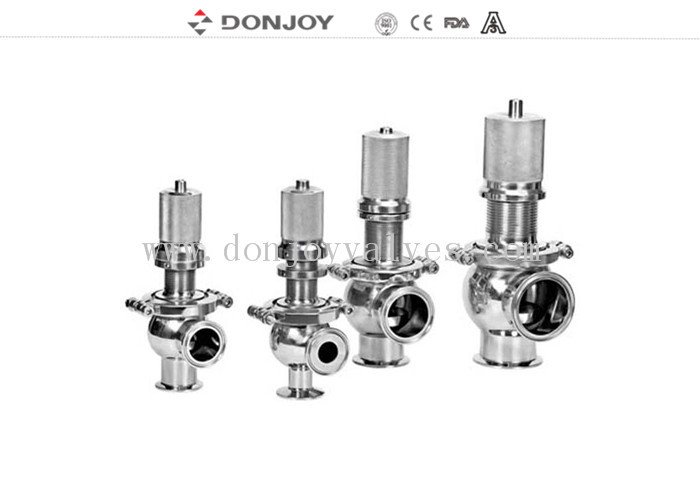

2"  SS316Lmanual pressure safety valve , Relief Valve with Weld Connection 0



Products

2"  SS316Lmanual pressure safety valve , Relief Valve with Weld Connection 1

Type: 6Bar safety valve,  Manual safety Valve,  Pressure safety valve
