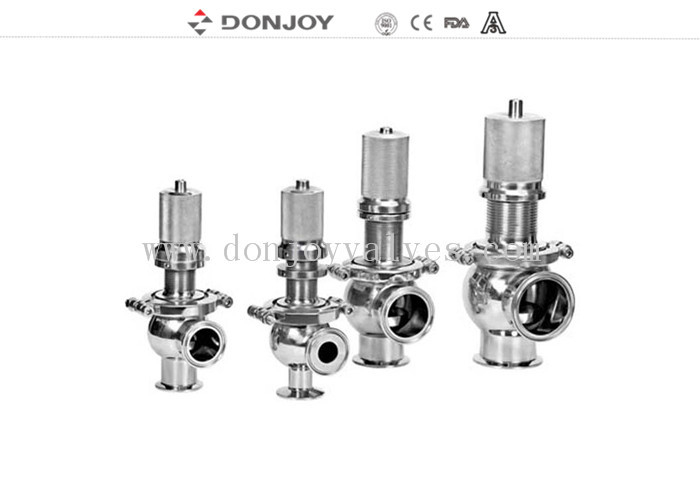

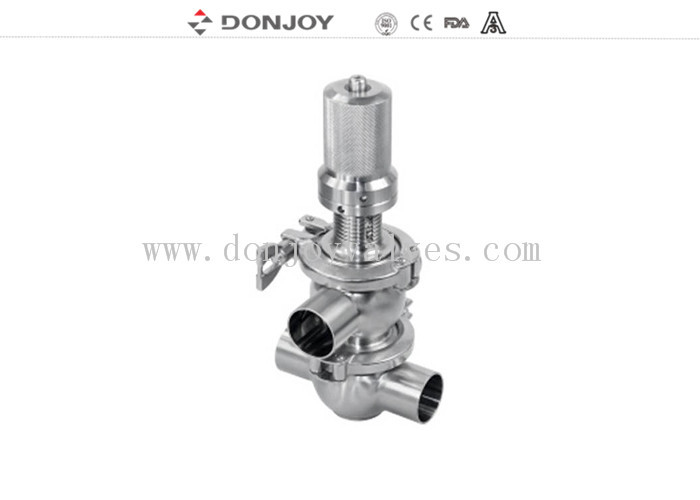

2.5" SS304 Four way Pressure Safety Valve adjustable between 1Bar to10 Bar

2.5" SS304 Four way Pressure Safety Valve adjustable between 1Bar to10 Bar

2.5"  SS304  Four way Pressure Safety Valve adjustable between 1Bar to10 Bar

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: NO.VAQ100S1-001

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD20-100/set
Packaging Details: Carton, Wooden Case
Payment Terms: T/T,L/C, Credit Card
Supply Ability: 10000 set /week
Contact Now
Detailed Product Description
Products: Four Way Pressure Safety Valve Connection: Welded, Clamped,Thread,
Polished: Mirror, Matte Inlet Pressure: 10 Bar
Outlet Pressure: 0.3-5 Bar Operation: Manual /pneumatic
High Temperature: 180 Degree
High Light:

pressure regulating valve

,

pressure release valve

2.5" SS304 Four way Pressure Safety Valve adjustable between 1Bar to 16 Bar


Quick Detail
Pressure Safety Valve, Over flow Valve ,Pressure adjustable
Type: Manula, Pnuematic
A safety valve is a valve that acts as a fail-safe in a thermal-hydraulics plant. An example of safety valve is a pressure relief valve (PRV), which automatically releases a substance from a boiler, pressure vessel, or other system, when the pressure or temperature exceeds preset limits.



Specification

Product Name:

2.5" SS304 Four way safety valve, Pressure adjustable

between 1Bar to10 Bar

Valve Body Material:

SS304 or SS316L

Seal Material:

EPDM,NBR,FPM

Max.Working Pressure:

10Bar 116PSI

Max. Working Temperature:

120 degree C

Availably size:

DN25-DN80 or 1” - 3"

Availably connection:

Flange,Clamp,Welded

Availably standard:

DIN,INCH,IDF,3A,SMS

Operate:

Pneumatic ,Maual

Certificate:

FDA,CE



Applications
1. Safety valve is used to protecting pipe,pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipments break down due to pressure
3. With sanitary design stainless steel, the valvei s best choicefor pretection equipments in diary ,food, beverage, pharmacy and fine chemical industries.


Operating Principle
1. Valve is normally closed
2. Pressure is set by spring with pressure nut
3. when the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure
4. The valve can be with Handle to realize partial open, when the handle remains open on the spot, liquid can flow through the valve


Drawing



2.5"  SS304  Four way Pressure Safety Valve adjustable between 1Bar to10 Bar 0

Curve of the safety valve

2.5"  SS304  Four way Pressure Safety Valve adjustable between 1Bar to10 Bar 1

Tag : Stainless steel safety valve, SS316L Valve, Overflow valve
