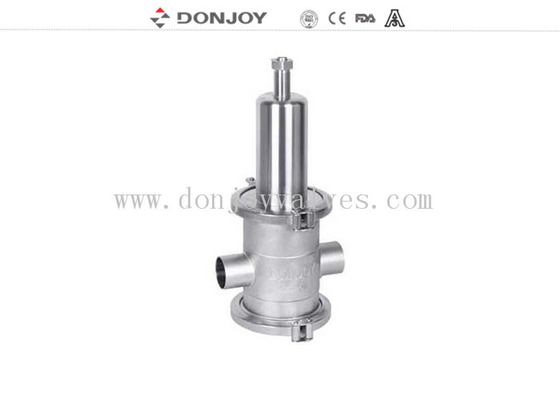

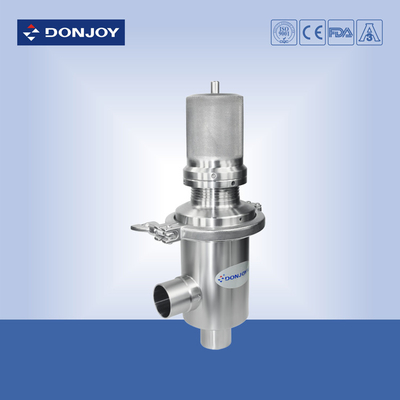

Donjoy SS316L 3 "High purity pressure reducing valve T type and L T type

Donjoy SS316L 3 "High purity pressure reducing valve T type and L T type

pressure regulating valve

pressure release valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

NO.VJY200S1

Contact Us

Request A Quote
Product Details
Stanadard:
DIN,3A,SMS,ISO
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 10-1000/SET
Packaging Details
Carton, Wooden Case
Payment Terms
T/T,L/C, Credit Card
Supply Ability
1000 PCS/DAY
Product Description

Donjoy SS316L 3 "High purity pressure reducing valve T type and L T type



Quick Detail:

SS316L,3 "High purity pressure reducing valve T type and L T type

Type: T type and L type



Specification

Product Name:

SS316L,3 "High purity pressure reducing valve T type and L T type

Valve Body Material:

SS304 or SS316L

Seal Material:

EPDM,NBR,FPM

Max.Working Pressure:

8Bar 116PSI

Max. Working Temperature:

180 degree C

Availably size:

1"-3"

Availably connection:

Flange,Clamp,Welded

Availably standard:

DIN,INCH,IDF,3A,SMS

Operate:

Pneumatic ,Maual

Certificate:

FDA,CE



Applications:

1.Medium-controlled pressure reducers are simple control valves offering accurate control while being easy to install and mantain, they  control the pressure downstream of the valve without requiring pneumatic or electrical control elements.

2.DONJOY pressure reducing valve is a twin seat diaphragm- controlled spring -loaded proportional control valve which is primarily used for hygienic applications in the food processing and pharmaceutical industries. A PTFE protective foil renders the diaphragm physiologically safe and steam proof up to 180°C.  The valve does not require an external pilot line.




Operating Principle
1. Through the spring to adjustable the pressure.
2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.



Drawing of reducing valve

Donjoy SS316L 3 "High purity pressure reducing valve T type and L T type 0



Tag: Pressure reducing valve, Safety valve, Donjoy valves
