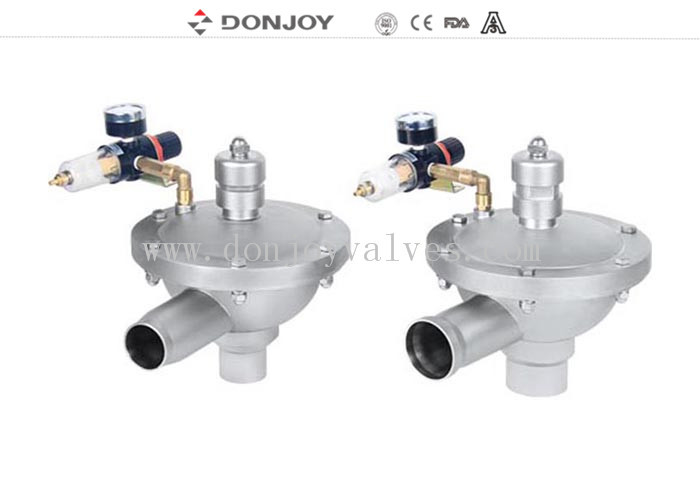

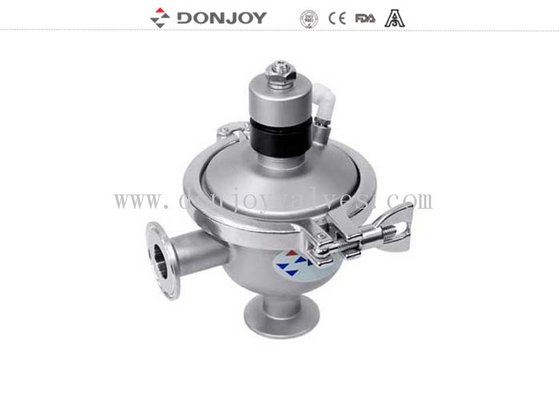

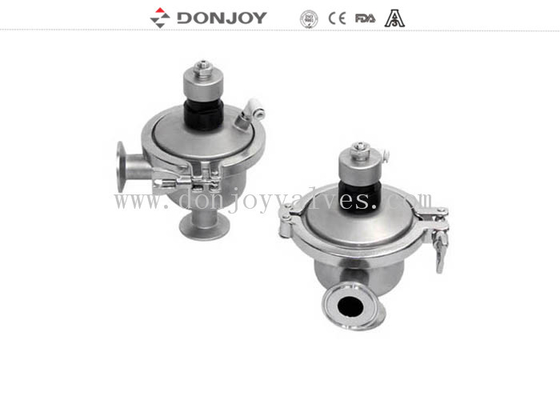

Mini Constant pressure Valve V type with clamped connection EPDM PTFE Gasket

Mini Constant pressure Valve V type with clamped connection EPDM PTFE Gasket

Mini Constant pressure Valve V type with clamped connection EPDM PTFE Gasket

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: NO.MINI-VAQ100S1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 10-100/set
Packaging Details: Carton, Wooden Case
Payment Terms: T/T,L/C, Credit Card
Supply Ability: 10000 set /week
Contact Now
Detailed Product Description
Brand: DONJOY SIZE: 1" DN25
Connection: Welded, Clamped,Thread, Polished: Mirror, Matte
PRESSURE: 8 BAR Working Temperature: -10℃~150℃
High Light:

pressure regulating valve

,

pressure release valve

Mini Constant pressure Valve V type with clamped connection EPDM PTFE Gasket



◆Miniature Constant Pressure Regulating Valve is a sanitary constant pressure valve to be applied to the food processing, beverage, pharmaceutical and other areas of the pipeline system.
◆Constant pressure design has two kinds to maintain a constant pressure function selection:
1) V type (inlet constant pressure); maintain constant pressure at the valve inlet. Such design is specially applied at the back of heat-exchanger. It is used as safety valve.
2) A type (Outlet constant pressure): maintain constant pressure at the outlet. Such design is used as the front of filling machine and bottle filling machine
.

Quick Detail:
Constant pressure Valve
Type: A type, V type, Mini Type, WITH SUPERCHARGER



Specification

Product Name:

Mini Constant pressure Valve V type with clamped

connection, EPDM+PTFE Gasket

Valve Body Material:

SS304 or SS316L

Seal Material:

EPDM+ PTFE

Max.Working Pressure:

8Bar 116PSI

Max. Working Temperature:

-10~150  degree C

Available size:

1.5",2",2.5"

Available connection:

Flange,Clamp,Welded

Available standard:

DIN,INCH,IDF,3A,SMS

Operate:

Pneumatic ,Maual

Certificate:

FDA,CE,ISO,3A



Applications:
1. Safety valve is used to protecting pipe,pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipment break down due to pressure
3. With sanitary design stainless steel, the valve is the best choice for protection equipment in dairy ,food, beverage, pharmacy and fine chemical industries.


Operating Principle
1. Through the spring to adjustable the pressure.
2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.



Drawing

Mini Constant pressure Valve V type with clamped connection EPDM PTFE Gasket 0

Mini Constant pressure Valve V type with clamped connection EPDM PTFE Gasket 1
