| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Model Number: | NO.VZH300A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Payment Terms: | T/T, LC, Credit Card |
| Brand: | DONJOY | SIZE: | 1 1 /2"-8",DN40-DN200 |
|---|---|---|---|
| Stanadard: | DIN,3A,SMS,ISO | Connection: | Welded, Clamped,Thread, |
| Polished: | Mirror, Matt | Opening Pressure: | 0.3bar,0.2bar,0.1bar |
| Finishing: | Ra≤0.8μm | ||
| High Light: | hydraulic inline check valve,hydraulic cylinder check valve |
||

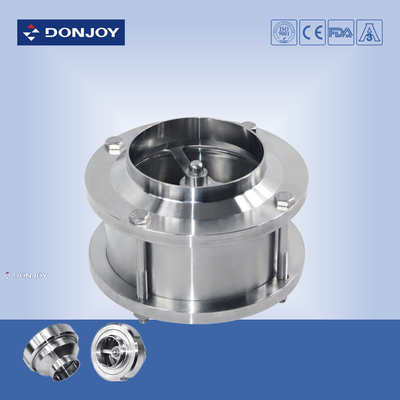

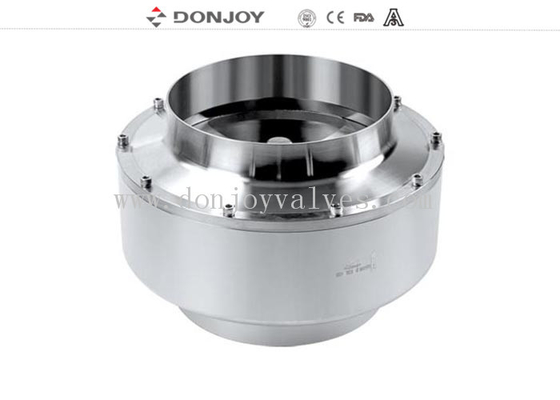

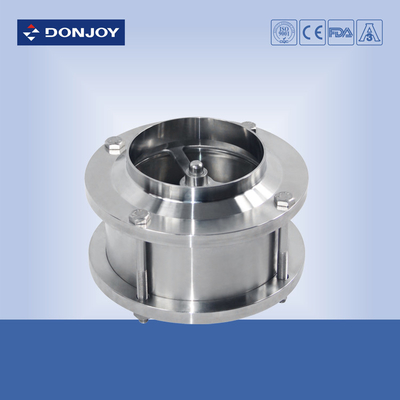

6" 8" Thread Hydraulic Inline Check Valve , Big size Check Valve CE FDA Certification
Quick Detail:
Hydraulic Check Valves
Type: Clamped, thread, Welded,Flange Type
Easy disassemble
Small-size construction
DIN11851 connection (standard)
Specification
| Product Name: | Sanitary three piece check valve, AISI304/AISI316L Thread Check valve |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | EPDM |
| Max. Working Pressure: | 10Bar |
| Opening pressure: | 0.1-0.3bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1 1 /2"-8",DN40-DN200 |
| Availably connection: | Thread,Weld,Clamp |
| Availably standard: | DIN,SMS,3A |
| Certificate: | FDA,CE |
Description:
1. Connection: Clamp, Weld, Thread
2. SEAL: NBR, FPM,PTEF all according to FDA177.2600
3.S tandard: DIN,SMS, RJT, IDF, ISO, 3A
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Sanitary valves come in two forms: horizontal and vertical.
Horizontal valves are suited to horizontal lines that need self-draining valves
Vertical valves can be used in either vertical or horizontal installations; in horizontal applications, vertical valves help when self-draining valves can’t maintain pump prime and temperature continuity
In the case of horizontal spring-check valves, product flow pushes a disc in the valve away from the seat. When forward flow pressure is removed, the electropolished spring will return the disc to its original position and hold it against the seat to keep it closed. Backflow pressure will also force the disc into the closed position.
Check valves help in scenarios that require the evacuation of process pipelines. This can occur for a host of reasons, especially those involving product recovery or drainage. Some applications may also require air agitation on the products in the pipelines or in the tanks they lead to. Check valves can accomplish this.
Things to Keep in Mind When Installing a Sanitary Check Valve
– Ball Check Valve –
In a vertical setting, the product has to flow from bottom to top so that gravity can push the ball in and out of the seat.In a horizontal setting, the curved portion of the valve needs to be upright and at 90 degrees to the pipe. This makes sure that the valve is free-draining and the ball sits properly.
– Disk Check Valve –
Disk Check Valves are not free-draining in a vertical setting. Therefore, for them to be free-draining, they need to be in a horizontal position.
Drawing
