| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Model Number: | NO.VZB40 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | carton box |
| Payment Terms: | T/T, LC, Credit Card |
| Product Name: | Ball Valve | Size Of Panel: | DN25-DN100 |
|---|---|---|---|
| Operation: | Pneumatic, Control Head,Manual | Media: | 304/316L |
| Connection: | Welded, Clamped, Thread, Flange | Pressure: | 1000WG |
| High Light: | electric ball valve,stainless steel ball valve |
||

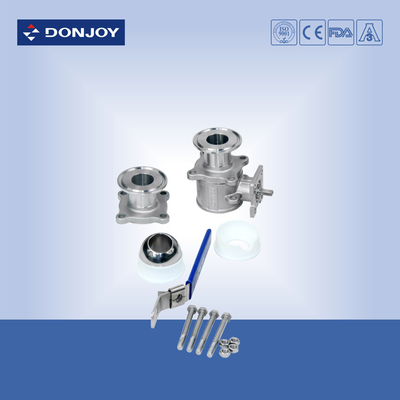

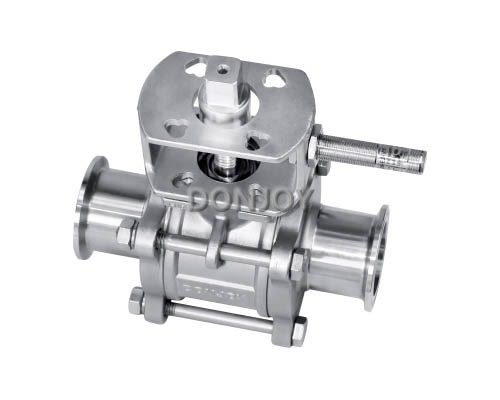

3-pcs Non-retention ball valve disasembly full port ball valve,SS316L,2 INCH
Description:
Operation of the ball Valve
1. Pneumatic three-piece mon-retention ball valve
2. Pneumatic three-piece mon-retention ball valve with positioner
3. Pneumatic three-piece mon-retention ball valve with C-TOP
4. Pneumatic three-piece mon-retention ball valve With Mini C-TOP

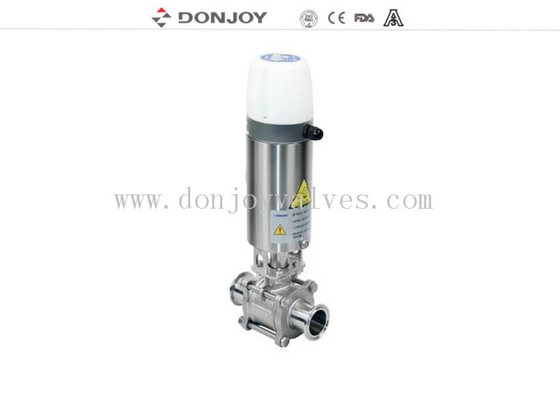

5. Pneumatic three-piece mon-retention ball valve With Electric actuator
6. Aluminum acuator with positioner
Specification
| Product Name: | 3-pcs Non-retention ball valve disasembly full port ball valve,SS316L,2 INCH |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 150 degree C |
| Availably size: | DN25-DN100 or 1" - 4" |
| Availably connection: | Weld,Clamp,Thread, Flange |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | Directly |
| Operated: | Manual,Pneumatic,Electric,control Head |
| Certificate: | FDA,CE,3A,ISO |
Applications:
The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine, chemical and other industires
Technical Feature
All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life
PACKAGING DETAIL: PLASTIC FIRST, THEN CARTON, LAST IN POLYWOOD
DELIVERY DETAIL:DEPEND ON THE REQUEST OF CUSTOMERS' ORDER SCALE.
PAYMENT DETAILS: AYMENT BY L/C OR T/T,WEESTERN UNION..
If you still have any problems,Please do not hesitate to contact us.
