SS Actuator Regulation Pneumatic Globe valves with flange end / Steam valve

Brand Name:	DONJOY
Model Number:	NO.VQD100Q2
MOQ:	Negotiation
Price:	$100-$500/pc
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,3A,FDA

Product Name:

Globe Valve

Size Of Panel:

Operation:

Pneumatic, Control Head

Material:

304/316L

Connection:

Welded, Clamped, Thread, Flange

Brand:

Donjoy

Structure:

With Mini C-TOP

Highlight:

angle body valve

slanted seat valve

Product Description

SS Actuator Regulation Pneumatic Globe valves with flange end / Steam valve

specifications:

Product Name:	2" , Acuator globe valve C-Top,Regulation Valve, Steam Valve
Seal Material:	EPDM
Working Pressure:	8 Bar, 10Bar(option).
Max. Working Temperature:	120 degree ,180Degree(Option)
Availably size:	DN10-DN100,1/2"-3"
Availably connection:	Thread,Weld,Clamp,BSP/BSP/NPT
Operate:	Pneumatic , Control Head
Certificate:	FDA,CE,ISO

Features:

1. Position sensors can be visual,open (green)off(red)

2. Jog buttons

3. Built-in solenoid valve

4. The basic version

5. AS-I bus version

Operation Options for Globe Valve

1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice:Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

Applications:

Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

Operationg Principles

1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

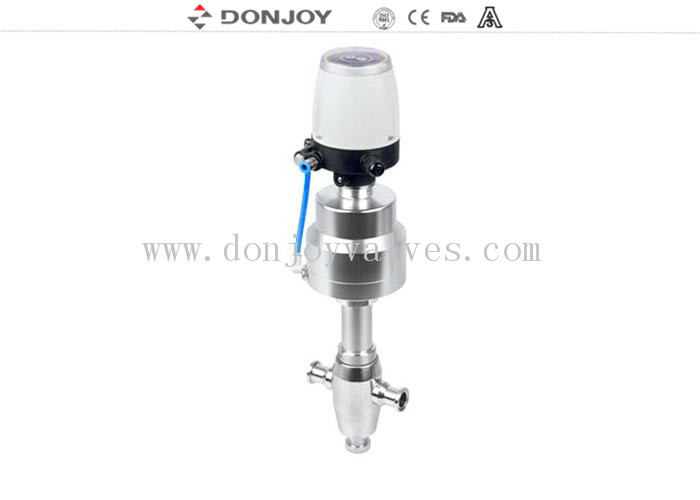

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed. SS Actuator Regulation Pneumatic Globe valves with flange end / Steam valve 0

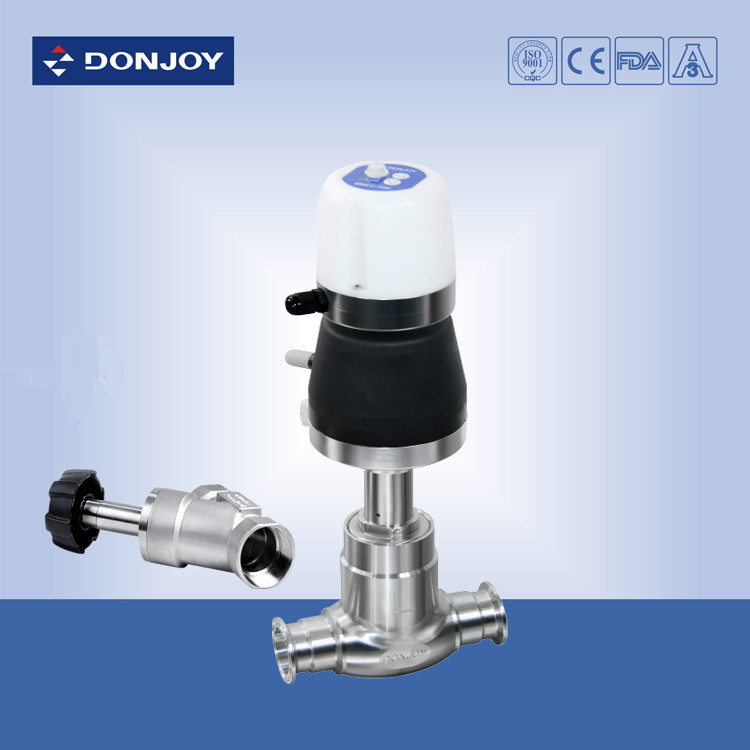

SS Actuator Regulation Pneumatic Globe valves with flange end / Steam valve 1

Tag: Globe valves, Donjoy Sanitary valves, Steam valves
