Intelligent positioenr/Control Unit C-Top-2221 with IO Link

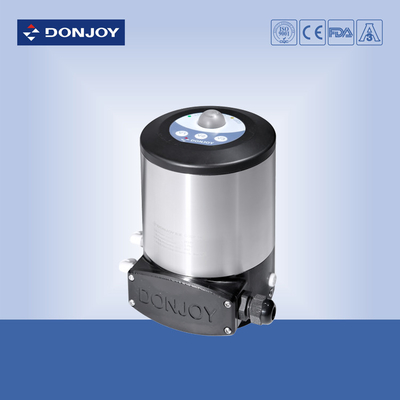

Large Image : Intelligent positioenr/Control Unit C-Top-2221 with IO Link

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	C-TOP-2221

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	US $600 - 1,000 / Piece
Packaging Details:	carton box
Delivery Time:	200 Piece/Pieces per Month
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Product Name:	Control Unit	Power:	DC.24V
Pneumatic Pressure:	1.5 Bar - 7 Bar (22PSI To 102PSI)	Level Of Protection:	IP67
Operation Mode:	Pneumatic Operation	Working Pressure:	10bar
Structure:	Could Be With Positioner
Highlight:	pneumatic valve positioner , digital valve positioner

Intelligent positioenr/Control Unit C-Top with IO Link

SPECIFICATION

Product Name	Intelligent valve positioner
Medium	Lubricated compressed air, inert gases
Max. Working temperature	70℃
Working pressure	1.5 bar - 7 bar (22PSI to 102PSI)
Connector	G1/8"
Level of protection	IP67
Air flow	200NL
Stroke	Min. 3mm; Max. 70mm
Max. C - TOP units	31 C - TOP units
Connecting cable	2m
AS-I BUS	max. length: 1m
Function	For controlling valve position
Feature	Inductive position sensor

Applications

C - TOP is a pneumatic controller that is designed to ensure optimum control valve.

It is compatible with most PLC automatic system. In the industry of food, beverage, pharmacy,

it could be installed to all kinds of pneumatic valves such as mixture proof valve, butterfly valve, ball valve, diaphragm valve, reversing valve and globe valve etc.

Design and features

Connecting sensors with solenoid valve ( actuator ) easily, fastly and economically by AS - I BUS mastering.

Since cables are largely decreased, installation and start-up become more convenient.

Besides, start time is shortened, and some hidden troubles in the installation can be avoided.Parts are the same as standard C - TOP. The only changed part is the built - in card,. AS - I insulation replacement connector and the cable connector itself.

C - TOP Valve control unit - - 2014

Displacement regulating version

Model

Sensor

Solenoid valve

Power

Connection

Remarks

1421-05-S1-V1

DC. 24V

Cable connection

Single acting

1421-05-S1-V2

DC. 24V

Cable connection

Double acting

1421-05-S1-V3

DC. 24V

Cable connection

Three effects

(mixture proof valve)

1421-05-S1-V1-AS

DC. 24V

AS-I BUS

Single acting

1421-05-S1-V2-AS

DC. 24V

AS-I BUS

Double acting

1421-05-S1-V3-AS

DC. 24V

AS-I BUS

Three effects

(mixture proof valve)

Mechanical regulating version

Model

Sensor

Solenoid valve

Power

Connection

Remarks

1421-05-S1-V1-M

DC. 24V

Cable connection

Single acting

1421-05-S1-V1-M

DC. 24V

Cable connection

Single acting

1421-05-S1-V2-M

DC. 24V

Cable connection

Double acting

1421-05-S1-V3-M

DC. 24V

Cable connection

Three effects (mixture proof valve)

1421-05-S1-V1-AS-M

DC. 24V

AS-I BUS

Single acting

1421-05-S1-V1-AS-M

DC. 24V

AS-I BUS

Single acting

1421-05-S1-V2-AS-M

DC. 24V

AS-I BUS

Double acting

1421-05-S1-V3-AS-M

DC. 24V

AS-I BUS

Three effects (mixture proof valve)

Installation

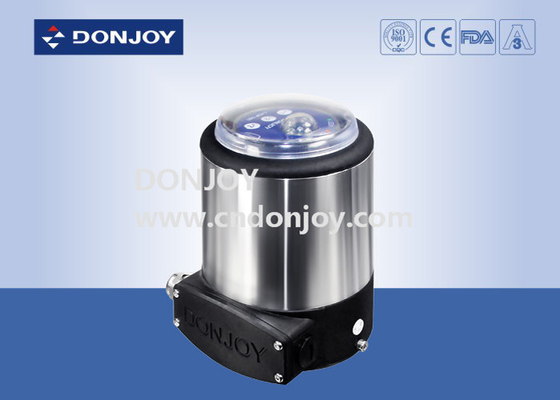

Intelligent positioenr/Control Unit C-Top-2221 with IO Link 0

Product display

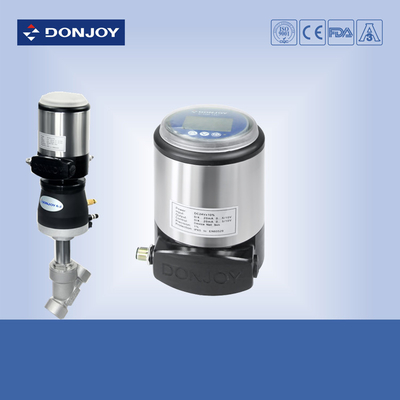

Intelligent positioenr/Control Unit C-Top-2221 with IO Link 1

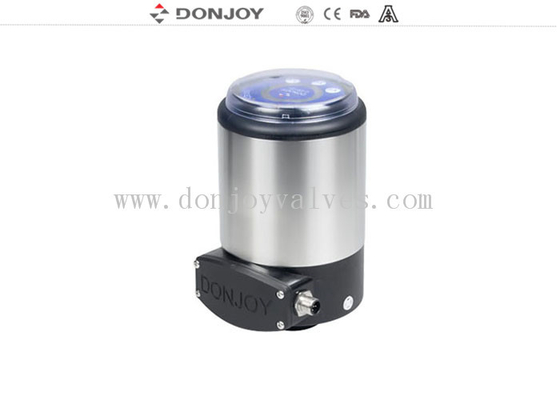

Intelligent positioenr/Control Unit C-Top-2221 with IO Link 2
