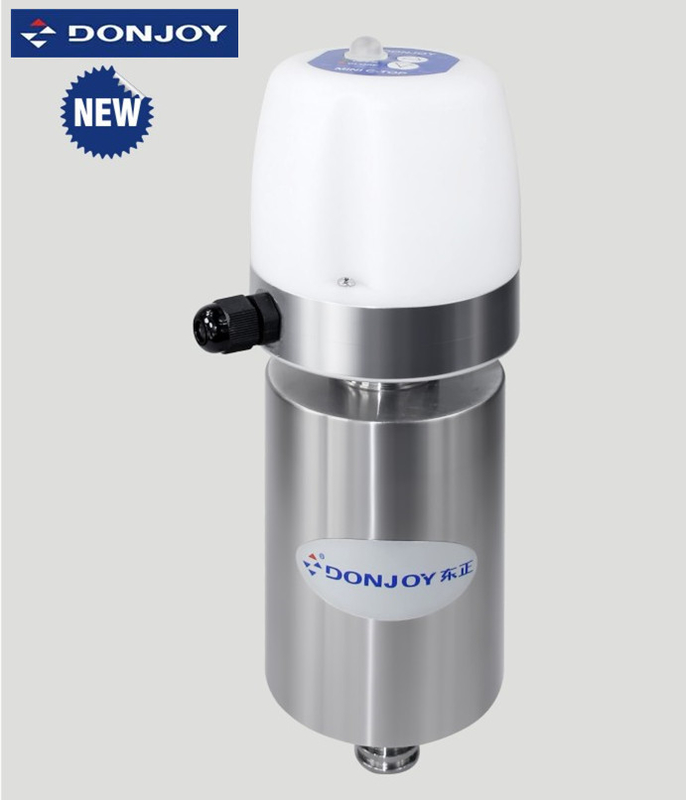

Mini C - Top pneumatic valve control head with two sensor and one solenoid valve

Mini C - Top pneumatic valve control head with two sensor and one solenoid valve

    • Mini C - Top pneumatic valve control head with two sensor and one solenoid valve
    • Mini C - Top pneumatic valve control head with two sensor and one solenoid valve
    • Mini C - Top pneumatic valve control head with two sensor and one solenoid valve
    • Mini C - Top pneumatic valve control head with two sensor and one solenoid valve
    • Mini C - Top pneumatic valve control head with two sensor and one solenoid valve
  • Mini C - Top pneumatic valve control head with two sensor and one solenoid valve

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: C-TOP Mini Type

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: US $600 - 1,000 / Piece
    Packaging Details: carton box
    Delivery Time: 200 Piece/Pieces per Month
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Control Unit Power: DC.24V
    Pneumatic Pressure: 4-7bar Level Of Protection: IP67
    Operation interface:: Key Working Pressure: 10bar
    Structure: Could Be Installed With Actuator Feature: Mini - Type
    High Light:

    digital valve positioner

    ,

    double acting positioner

    Mini C - Top pneumatic valve control head with DC24V for controlling process valve



    SPECIFICATION

    Product Name Mini type valve control unit C - TOP
    Power DC. 24V
    Working pressure 10 bar
    Pneumatic pressure 5 - 7 bar
    Air connection G1/8"
    Working temperature 70℃ (150℉)
    Level of protection IP66
    Standard function 0/4-20mA tp 0-5/10V signal input
    Structure Could be installed with actuator
    Delivery details Usually within 20 days after receiving T/T down payment.



    Applications

    C - TOP is a pneumatic control head which is designed to ensure optimum control vavle.

    It is a compatible with most PLC automatic system which is equipped with digital communication.

    In the industris of food , beverage and pharmacy, C - TOP could be installed to any valves in power - up state.





    Order information

    Mini - C - TOP (Mini type valve control unit 2014)

    Displacement regulating version



    Model Sensor Solenoid valve Power Connection Remarks
    MIN-S-V1 1 1 DC. 24V Cable connection Single acting
    MIN-S-V2 1 2 DC. 24V Cable connection Double acting
    MIN-S-V1-AS 1 1 DC. 24V AS-I BUS Single acting
    MIN-S-V2-AS 1 2 DC. 24V AS-I BUS Double acting

    Mechanical regulating version

    Model Sensor Solenoid valve Power Connection Remarks
    MIN-S-V1-M 1 1 DC. 24V Cable connection Single acting
    MIN-S-V1-M 2 1 DC. 24V Cable connection Single acting
    MIN-S-V2-M 2 2 DC. 24V Cable connection Double acting
    MIN-S-V1-AS-M 1 1 DC. 24V AS-I BUS Single acting
    MIN-S-V1-AS-M 2 1 DC. 24V AS-I BUS Single acting
    MIN-S-V2-AS-M 2 2 DC. 24V AS-I BUS Double acting



    Technical specifications

    Working temperature: 70℃ (150℉)

    Air pressure: 5 - 7 bar

    Cylinder specification: Φ 85 - Φ168

    Coupling: 8*8 / 9*9 / 10*10 / 11*11 / 12*12 / 14*14mm

    Level of protection: IP66

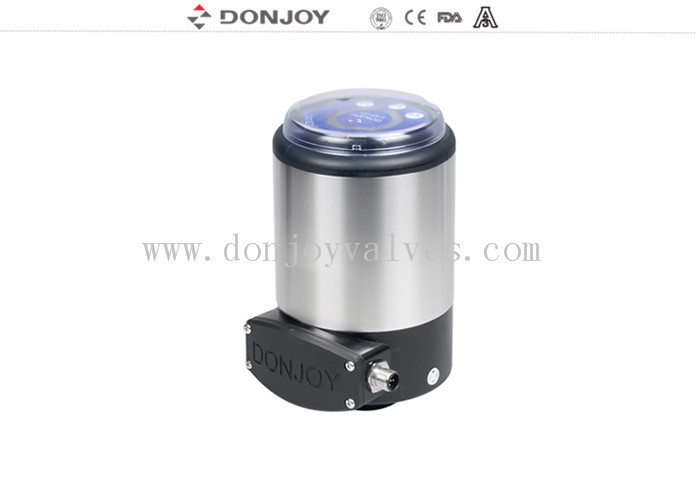

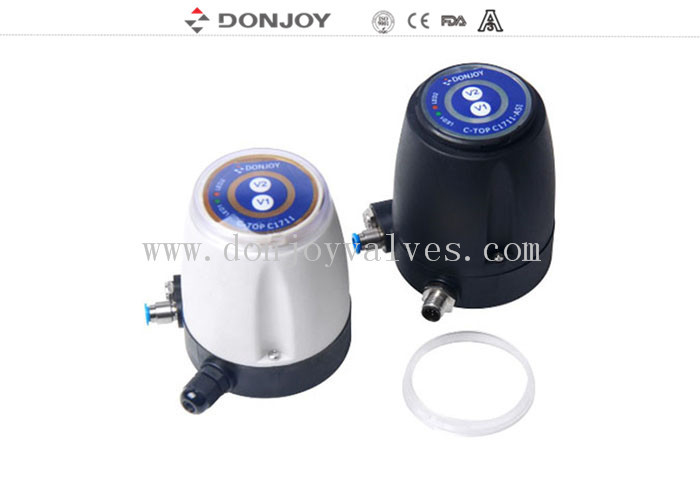

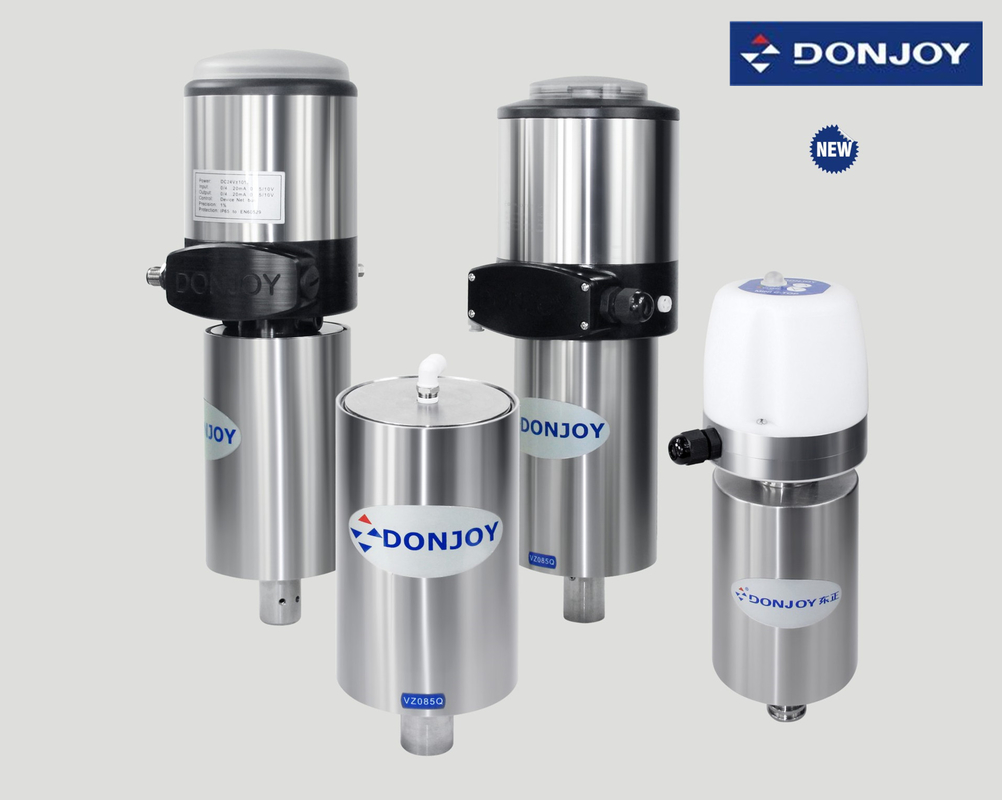

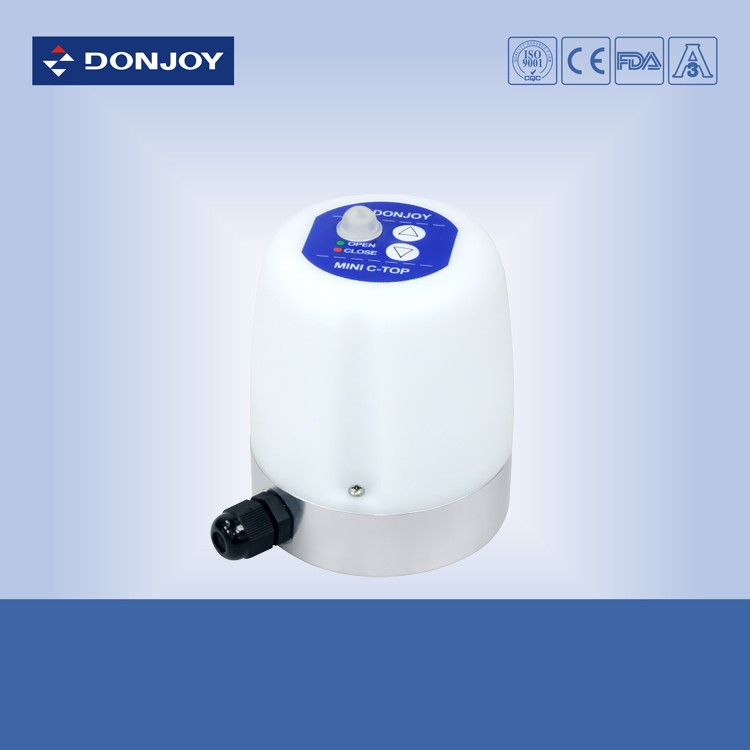

    Mini C - Top pneumatic valve control head with two sensor and one solenoid valve 0

    Mini C - Top pneumatic valve control head with two sensor and one solenoid valve 1
