    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: C-TOP-11

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: US $600 - 1,000 / Piece
    Packaging Details: carton box
    Delivery Time: 200 Piece/Pieces per Month
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Intelligent Controller Power: DC.24V
    Pneumatic Pressure: 1.5 Bar - 7 Bar Level Of Protection: IP67
    Operation interface:: Key Working Pressure: 10bar
    Stroke: Max. 70mm
    High Light:

    pneumatic valve positioner

    ,

    double acting positioner

    DC 24V Intelligent valve Positioner , angle seat valve 1.5 bar - 7 bar 31 C - TOP units



    SPECIFICATION

    Product Name

    Intelligent valve positioner

    Version

    Displacement regulating version & Mechanical regulating version

    Optional

    Gasket: NBR / MVQ / FPM

    Medium

    Lubricated compressed air, insert gases

    Max. Working temperature

    70℃

    Working pressure

    1.5 bar - 7 bar (22PSI to 102PSI)

    Connector

    G1/8"

    Level of protection

    IP67

    Stroke

    Min. 3mm; Max. 70mm

    Max. C - TOP units

    31 C - TOP units

    Connecting lable

    2m

    AS-I BUS

    max. length: 1m



    Applications

    C - TOP is pneumatic controller which is designed to ensure optimum control valve.

    It is compatible with most PLC automatic system. In the industry of food, beverage, pharmacy,it could be installed to all kinds of pneumatic valves such as mixture proof valve, butterfly valve, vall valve, diaphragm valve, reversing valve and globe valve etc.



    Design and features

    Connecting sensors with solenoid valve ( actuator ) easily, fastly and economically by AS - I BUS mastering.

    Since cables are largely decreased, installation and start up become more convenient.

    Besides, start time is shortened, and some hidden troubles in the installation can be avoided.

    Parts are same as standard C - TOP. The only changed part is the built - in card,. AS - I insulation replacement connector and the cable connector itself.



    C - TOP Valve control unit - - 2014

    Displacement regulating version

    Model Sensor Solenoid valve Power Connection Remarks
    MIN-S-V1 1 1 DC. 24V Cable connection Single acting
    MIN-S-V2 1 2 DC. 24V Cable connection Double acting
    MIN-S-V1-AS 1 1 DC. 24V AS-I BUS Single acting
    MIN-S-V2-AS 1 2 DC. 24V AS-I BUS Double acting



    Mechanical regulating version

    Model Sensor Solenoid valve Power Connection Remarks
    MIN-S-V1-M 1 1 DC. 24V Cable connection Single acting
    MIN-S-V1-M 2 1 DC. 24V Cable connection Single acting
    MIN-S-V2-M 2 2 DC. 24V Cable connection Double acting
    MIN-S-V1-AS-M 1 1 DC. 24V AS-I BUS Single acting
    MIN-S-V1-AS-M 2 1 DC. 24V AS-I BUS Single acting
    MIN-S-V2-AS-M 2 2 DC. 24V AS-I BUS Double acting



    Installation


    DC 24V Intelligent valve Positioner , angle seat valve 1.5 bar - 7 bar 31 C - TOP units 0

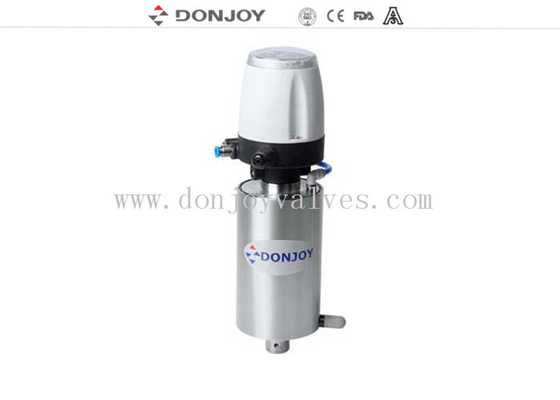

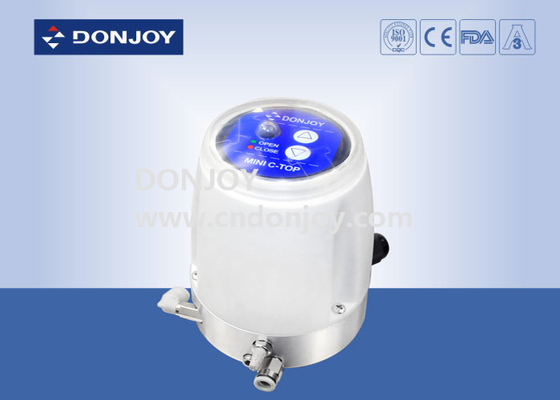

    Product display

    DC 24V Intelligent valve Positioner , angle seat valve 1.5 bar - 7 bar 31 C - TOP units 1

    DC 24V Intelligent valve Positioner , angle seat valve 1.5 bar - 7 bar 31 C - TOP units 2
