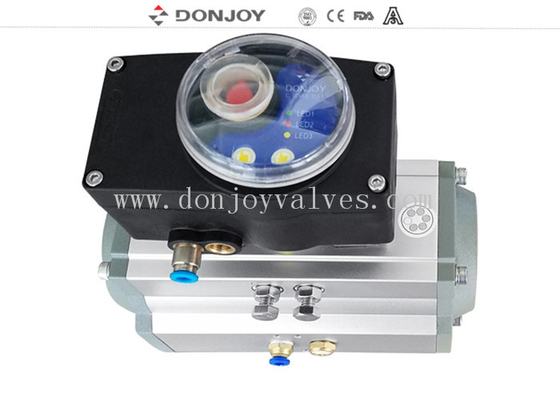

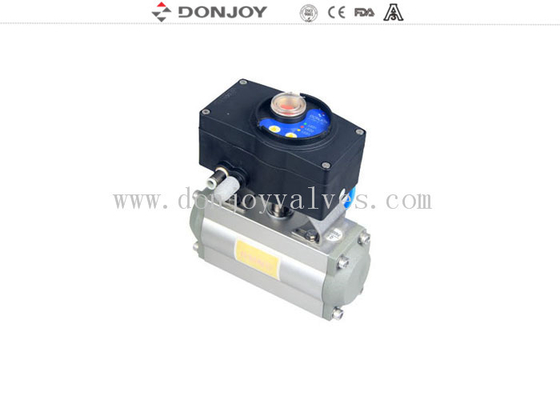

Aluminum actuator with Intelligent C TOP-1561 control unit to feedback PLC
Technical Feature
1 Input: PNP24VDC
2.Feedback output:PNP DC24V& 4-20mA
3.power Supply: DC24V±10%
4.Bus Communication:AS-I BUS
5.Accuracy: Repeat positioning accuracy≤0.2%
6.Ajusting: Single button auto-adjusting function
7.Operation mode: Manual/Automatic operation
8.Leakproof diagnostic Function
9.Display: two-section Light Color open: Green/Red, Close:red/Green
10.Strocke Range: 0-180degree
Specification
|
Product Name |
Intelligent valve positioner |
|
Medium |
Lubricated compressed air, insert gases |
|
Max. Working temperature |
70℃ |
|
Working pressure |
1.5 bar - 7 bar (22PSI to 102PSI) |
|
Connector |
G1/8" |
|
Level of protection |
IP67 |
|
Air flow |
200NL |
|
Feature |
Pneumatic actuator of double acting |
|
Structure |
Could be with Position sensor |
|
Stroke |
180degree |
|
Max. C - TOP units |
31 C - TOP units |
|
Connecting cable |
2m |
|
AS-I BUS |
max. length: 1m |
Applications
C - TOP is pneumatic controller which is designed to ensure optimum control valve.
It is compatible with most PLC automatic system. In the industry of food, beverage, pharmacy,
it could be installed to all kinds of pneumatic valves such as mixture proof valve, butterfly valve, ball valve, diaphragm valve, reversing valve and globe valve etc.
Design and features
Connecting sensors with solenoid valve ( actuator ) easily, fastly and economically by AS - I BUS mastering.
Since cables are largely decreased, installation and start up become more convenient.
Besides, start time is shortened, and some hidden troubles in the installation can be avoided.Parts are same as standard C - TOP. The only changed part is the built - in card,. AS - I insulation replacement connector and the cable connector itself.
C - TOP Valve control unit - - 2014
Displacement regulating version
|
Model |
Sensor |
Solenoid valve |
Power |
Connection |
Remarks |
|
1421-05-S1-V1 |
1 |
1 |
DC. 24V |
Cable connection |
Single acting |
|
1421-05-S1-V2 |
1 |
2 |
DC. 24V |
Cable connection |
Double acting |
|
1421-05-S1-V3 |
1 |
3 |
DC. 24V |
Cable connection |
Three effects (mixture proof valve) |
|
1421-05-S1-V1-AS |
1 |
1 |
DC. 24V |
AS-I BUS |
Single acting |
|
1421-05-S1-V2-AS |
1 |
2 |
DC. 24V |
AS-I BUS |
Double acting |
|
1421-05-S1-V3-AS |
1 |
3 |
DC. 24V |
AS-I BUS |
Three effects (mixture proof valve) |
Mechanical regulating version
|
Model |
Sensor |
Solenoid valve |
Power |
Connection |
Remarks |
|
1421-05-S1-V1-M |
1 |
1 |
DC. 24V |
Cable connection |
Single acting |
|
1421-05-S1-V1-M |
2 |
1 |
DC. 24V |
Cable connection |
Single acting |
|
1421-05-S1-V2-M |
2 |
2 |
DC. 24V |
Cable connection |
Double acting |
|
1421-05-S1-V3-M |
3 |
3 |
DC. 24V |
Cable connection |
Three effects (mixture proof valve) |
|
1421-05-S1-V1-AS-M |
1 |
1 |
DC. 24V |
AS-I BUS |
Single acting |
|
1421-05-S1-V1-AS-M |
2 |
1 |
DC. 24V |
AS-I BUS |
Single acting |
|
1421-05-S1-V2-AS-M |
2 |
2 |
DC. 24V |
AS-I BUS |
Double acting |
|
1421-05-S1-V3-AS-M |
3 |
3 |
DC. 24V |
AS-I BUS |
Three effects (mixture proof valve) |
